Toyota RAV4 Manifold — Figure 1701

Toyota RAV4 EPC diagram 1701, Manifold, with 4 images and 20 PNC and OE references.

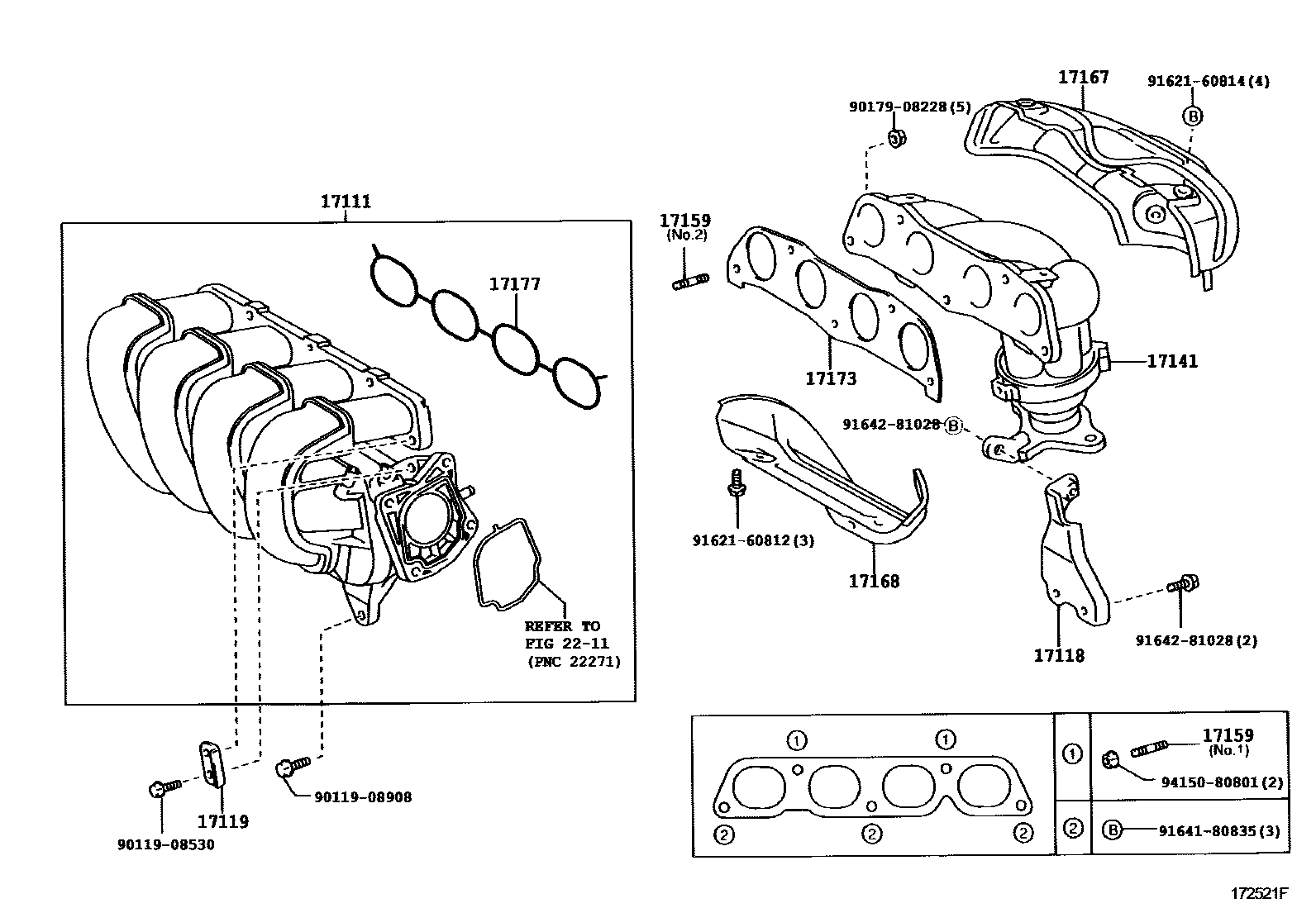

Toyota RAV4 Manifold EPC diagram — 172521F
Manifold — 172521F (200005 – 200307)

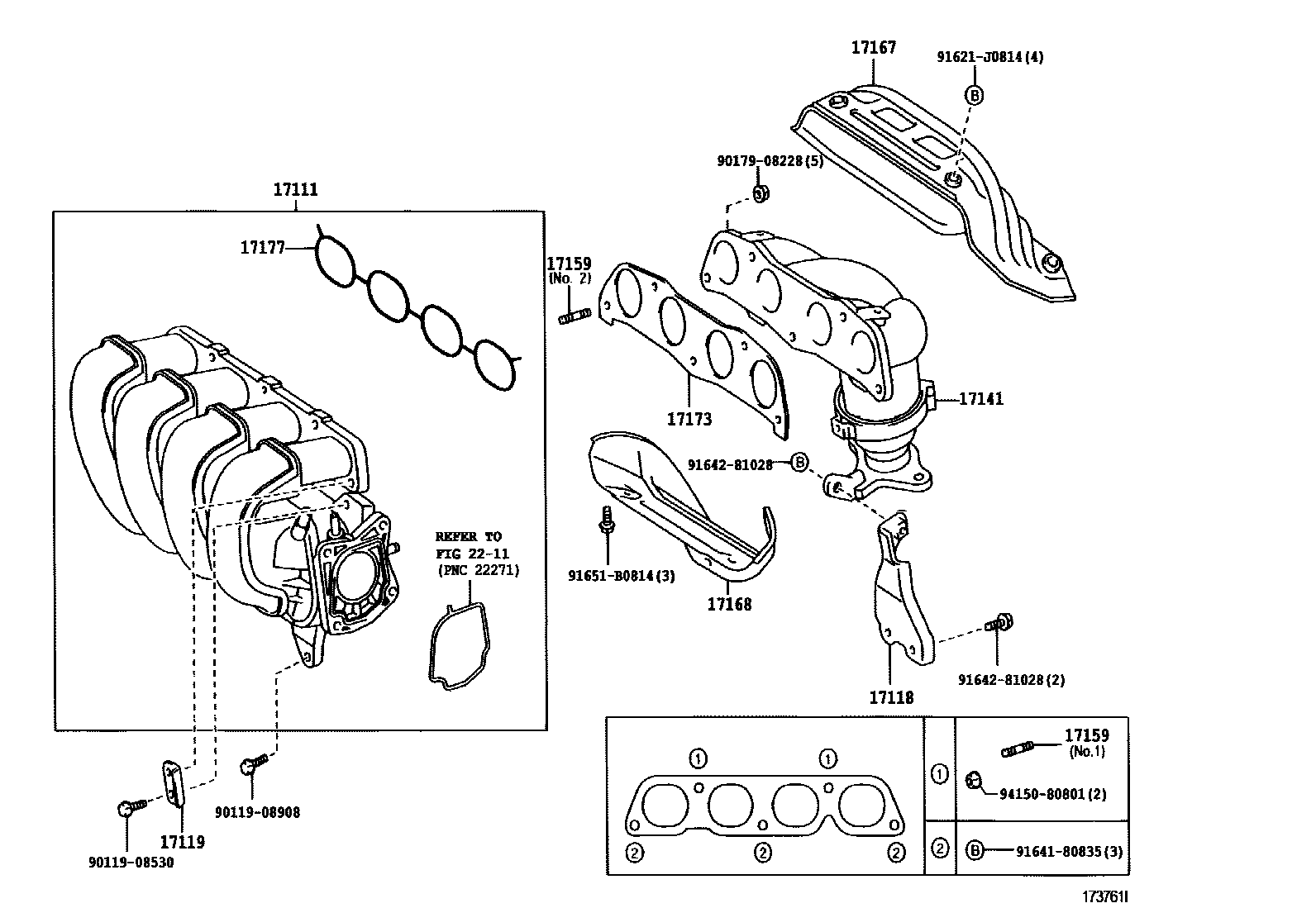

Toyota RAV4 Manifold EPC diagram — 173761I
Manifold — 173761I (200307 – 999999)

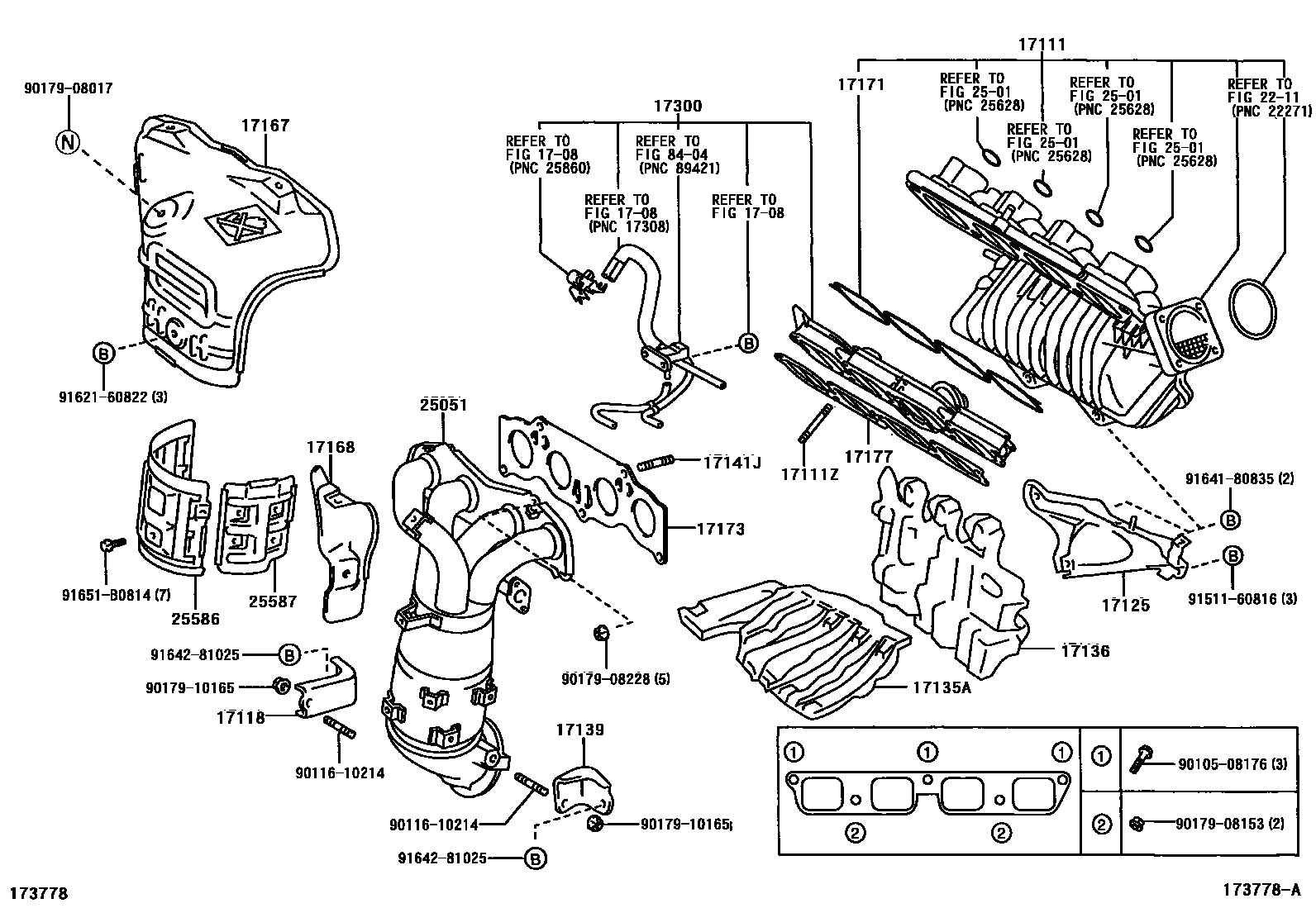

Toyota RAV4 Manifold EPC diagram — 173778A
Manifold — 173778A (200005 – 200307)

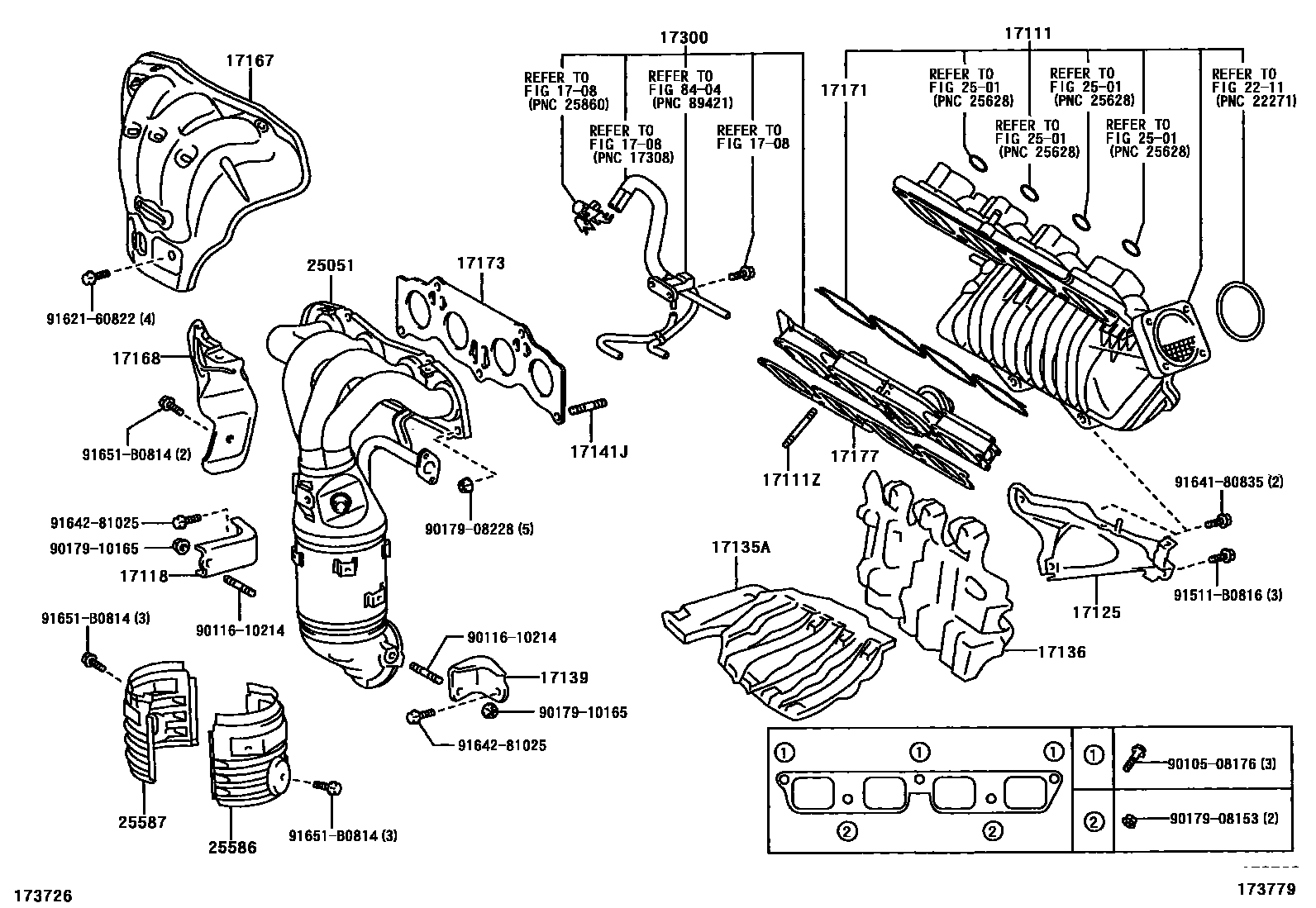

Toyota RAV4 Manifold EPC diagram — 173779
Manifold — 173779 (200307 – 999999)

PNC and OE references

PNCPart nameOE numbers
17111Intake Manifold17101-28030 · 17101-28031 · 17120-22030
17111ZStud bolts (for intake manifold to cylinder head)90126-08021
17118Manifold stays17118-22050 · 17118-28030
17119No. 2 manifold stay17139-22030
17125No. 1 pressure tank stay17125-28010
17135AIntake manifold No. 1 heat shield17135-28020
17136Intake manifold No. 2 heat shield17136-28010
17139No. 2 manifold stay17139-28020
17141exhaust manifold17104-22080 · 17104-22110
17141JStuds (for right exhaust manifold)90126-08037
17159Studs (for manifold to cylinder head)90126-08026 · 90126-08037 · 90126-08043
17167Exhaust manifold No. 1 heat shield17167-22070 · 17167-22090 · 17167-28020 · 17167-28021 · 17167-28031
17168Exhaust manifold No.2 insulation pad17168-22070 · 17168-22090 · 17168-28010 · 17168-28011 · 17168-28020 · 17168-28021
17171Gasket (intake manifold to exhaust manifold)17171-28010
17173Gasket (exhaust manifold to cylinder head)17173-22010 · 17173-28010
17177No. 1 gasket (intake manifold to cylinder head)17171-22030 · 17177-28020
17300Intake control valve assembly17300-28010 · 17300-28040
25051Exhaust manifold three-way catalytic converter sub-assembly25051-28030 · 25051-28200 · 25051-28201
25586No. 1 manifold three-way catalytic converter vibration isolation pad25586-28020 · 25586-28031 · 25586-28050
25587No. 2 manifold three-way catalytic converter vibration isolation pad25587-28020 · 25587-28041
