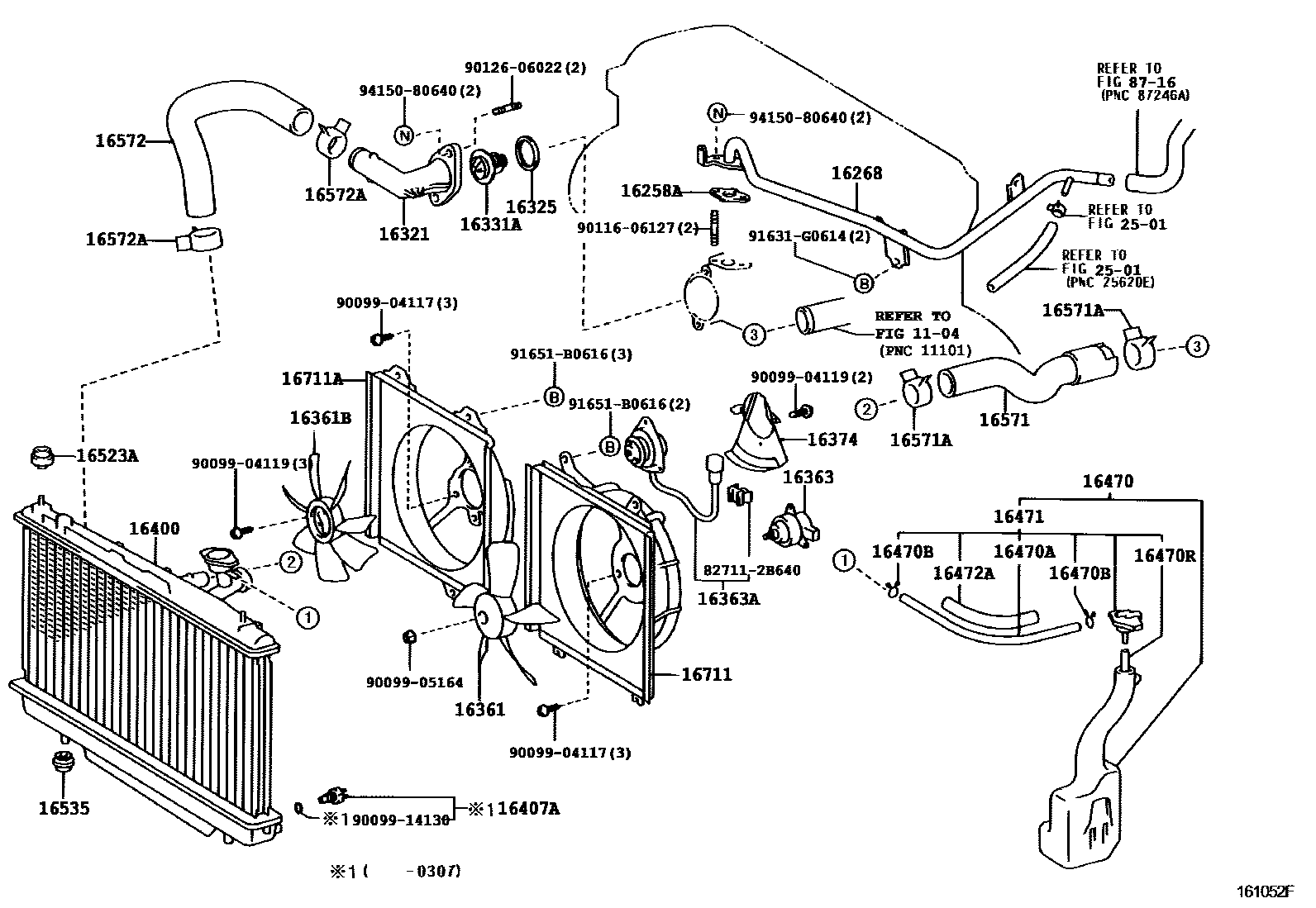

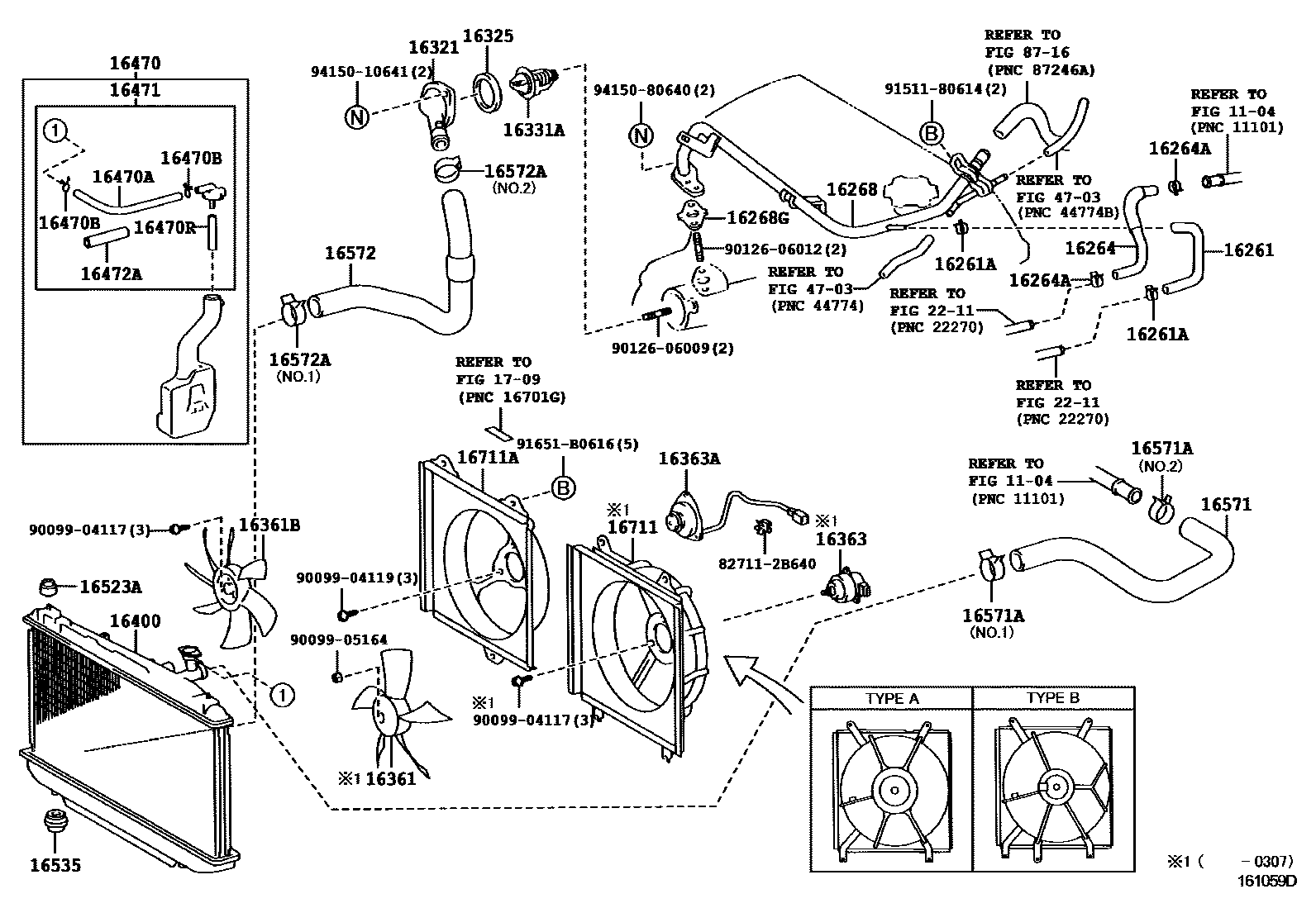

Toyota RAV4 RADIATOR & WATER OUTLET — Figure 1603
Toyota RAV4 EPC diagram 1603, RADIATOR & WATER OUTLET, with 4 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16258A | Pad (for heater return) | 16258-28010 · 16258-28011 · 16258-28030 |
| 16261 | HOSE, WATER BY-PASS | 16261-0D030 · 16261-22080 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 96135-41300 · 96135-51300 · 96137-41501 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0D020 · 16264-22090 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 96135-41300 · 96135-51300 · 96137-41501 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-22080 · 16268-22100 · 16268-28020 |
| 16268G | Gasket (for water bypass pipe) | 16258-22010 |
| 16321 | water inlet | 16321-22070 · 16321-28010 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-0H020 · 16325-28010 · 16325-62010 |
| 16331A | thermostat | 90916-03084 · 90916-03127 · 90916-03129 · 90916-03136 |
| 16361 | Fan | 16361-23050 · 16361-28020 · 16361-28021 |
| 16361B | Fan No. 2 | 16361-28060 |
| 16363 | cooling fan motor | 16363-23010 · 16363-23030 |
| 16363A | Cooling fan motor No. 2 | 16363-28060 |
| 16374 | Cooling fan motor vibration isolation pad | 16374-28010 |

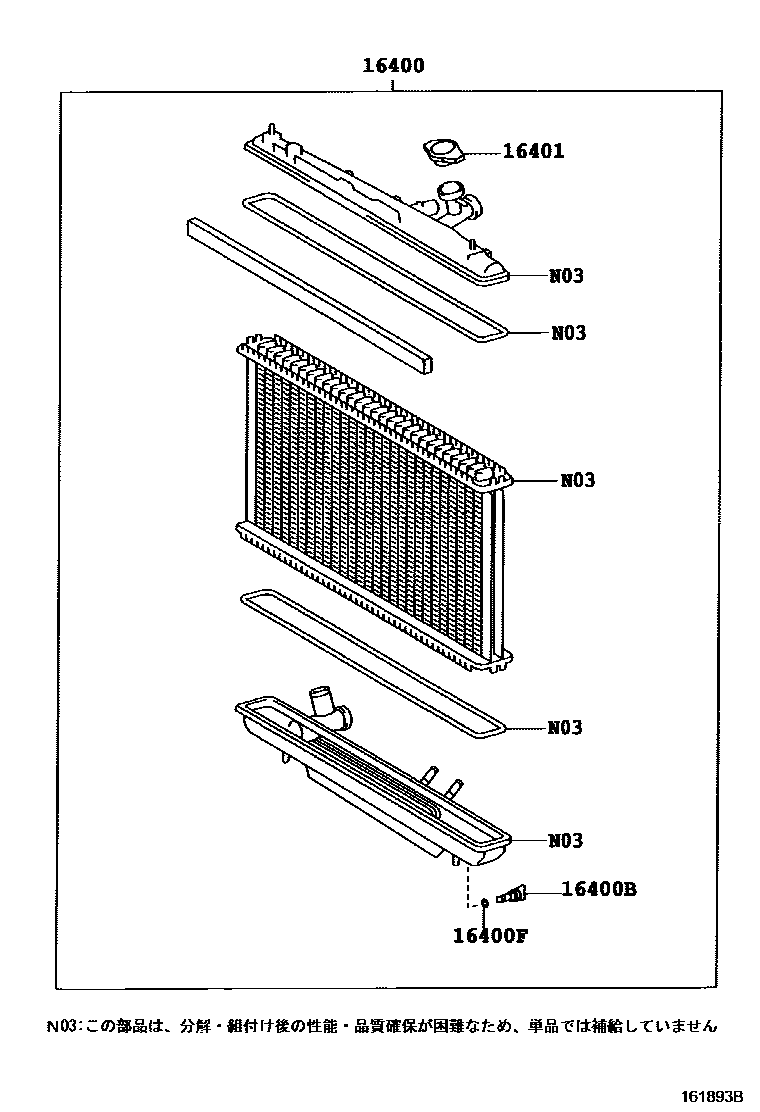

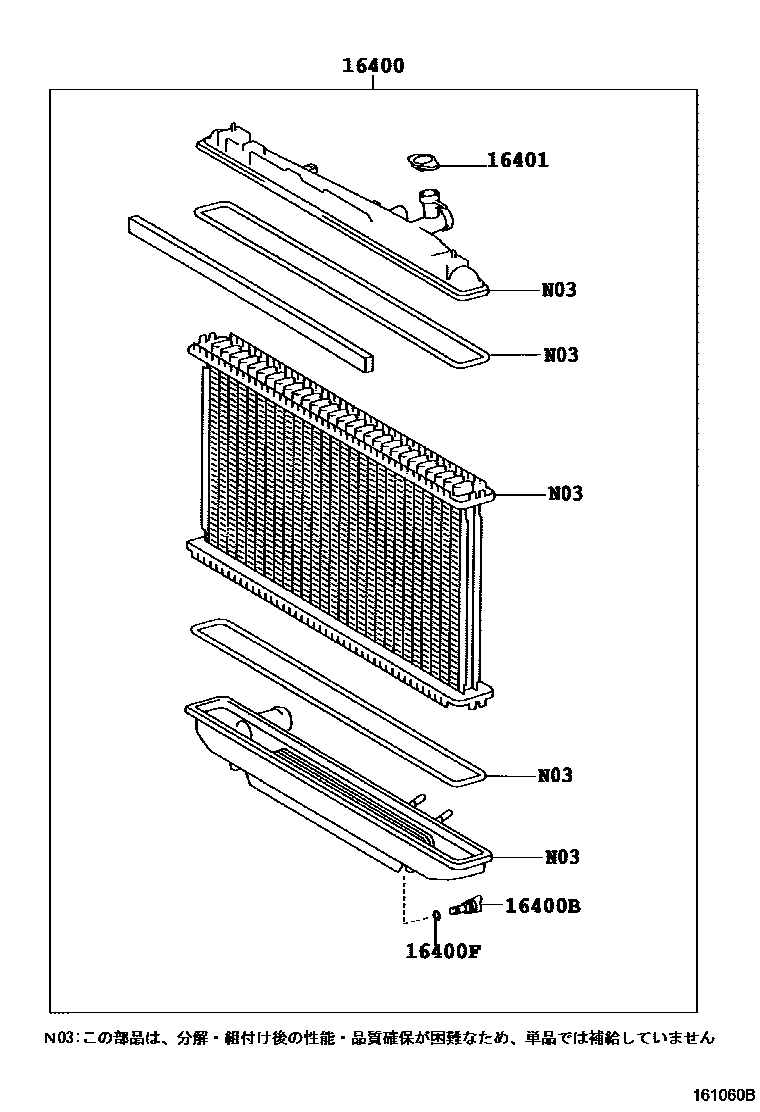

| 16400 | Radiator assembly | 16400-22130 · 16400-22131 · 16400-22220 · 16400-28130 · 16400-28140 · 16400-28470 |
| 16400B | Radiator drain switch screw plug | 16417-15210 |
| 16400F | Seal (for radiator drain switch) | 16418-15520 |
| 16401 | Radiator cover sub-assembly | 16401-7A470 |
| 16407A | Radiator drain switch sub-assembly | 16407-7A130 |
| 16470 | Radiator reservoir assembly | 16470-28050 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-28020 |
| 16472A | Hose protector | 16483-28050 |
| 16523A | Radiator bracket cushion | 16523-28010 |
| 16535 | Radiator lower support | 16535-74210 |
| 16571 | Radiator water inlet hose | 16571-22060 · 16571-28060 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-34004 · 90467-37005 · 90467-37006 |
| 16572 | Radiator outlet hose | 16572-22060 · 16572-28030 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90466-37002 · 90467-37005 · 90467-37006 |
| 16711 | fan cover | 16711-22110 · 16711-28130 · 16711-28150 |
| 16711A | No. 2 fan cover | 16711-22090 |
