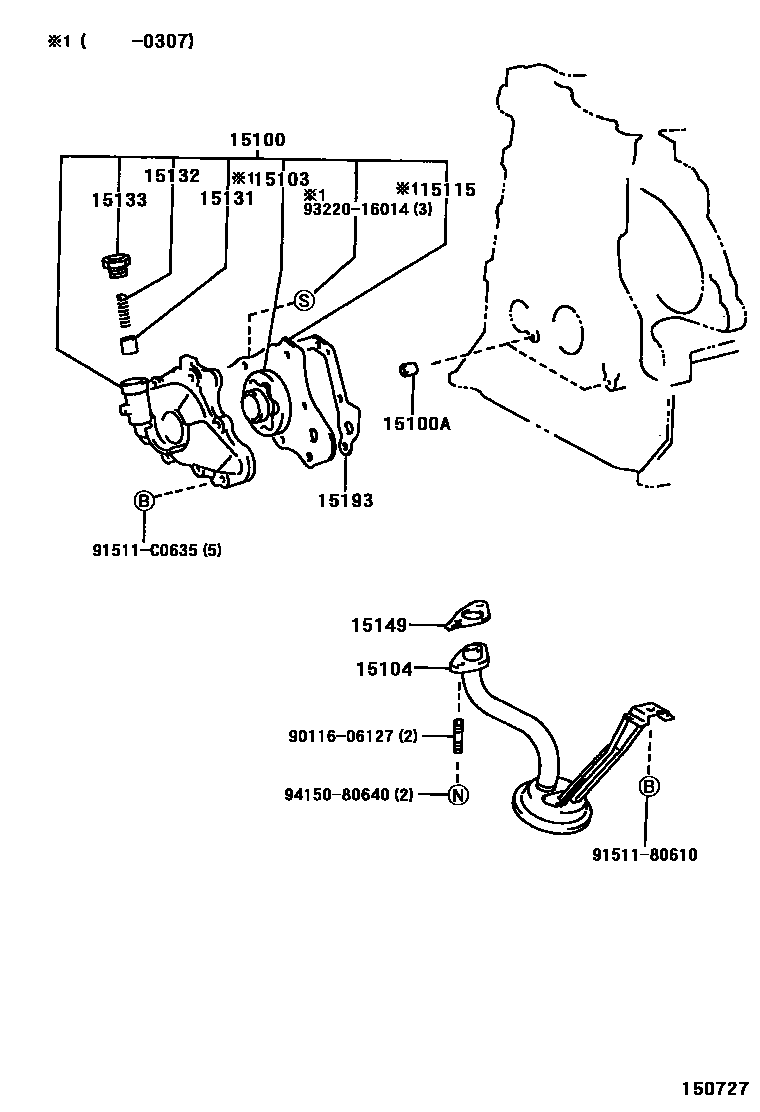

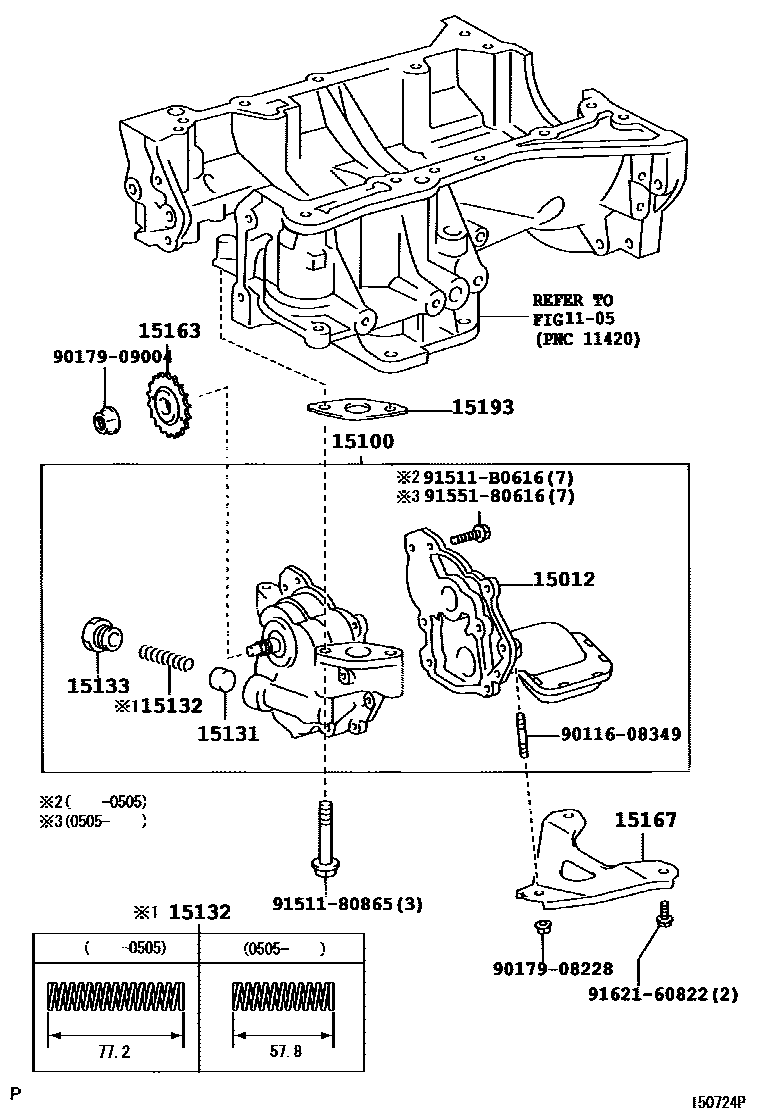

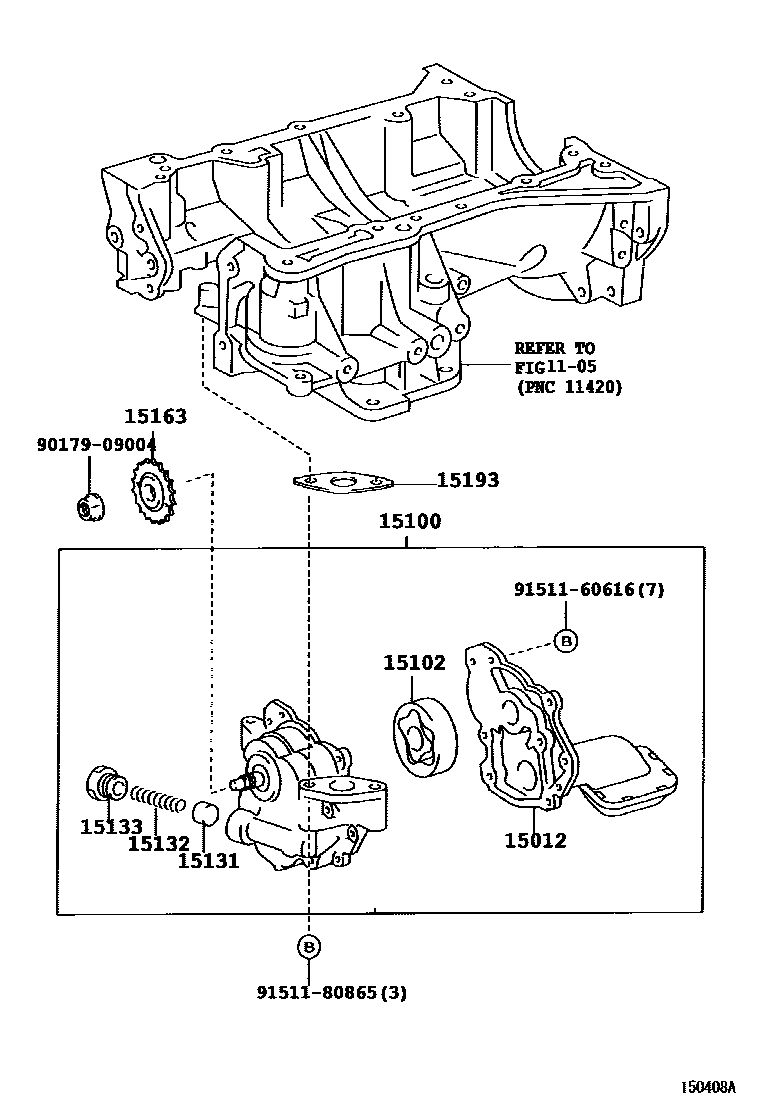

Toyota RAV4 Engine Oil Pump — Figure 1501
Toyota RAV4 EPC diagram 1501, Engine Oil Pump, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15012 | Oil pump cover sub-assembly | 15012-28030 · 15012-28040 |
| 15100 | Oil pump assembly | 15100-22040 · 15100-22041 · 15100-28030 · 15100-28040 |
| 15100A | Ring pin (for oil pump assembly) | 90253-09003 |
| 15102 | Oil pump rotor assembly | 15102-28030 |
| 15103 | Oil pump gear assembly | 15103-22040 |
| 15104 | Oil filter sub-assembly | 15104-22022 · 15104-22023 |
| 15115 | oil pump cover | 15115-22040 |
| 15131 | Oil pump pressure reducing valve | 15131-24010 · 15131-46040 |
| 15132 | Oil pump pressure reducing valve spring | 15132-22040 · 15132-28020 · 15132-46020 |
| 15133 | PLUG, OIL PUMP RELIEF VALVE | 15133-20010 · 15133-28020 |
| 15149 | Oil filter flange gasket | 15149-22010 |
| 15163 | Oil pump drive shaft gear | 15163-28010 · 15163-28020 |
| 15167 | Oil pump bracket | 15167-28010 |
| 15193 | oil pump gasket | 15193-28010 · 15197-22010 |
