Toyota RAV4 Ventilation Hose — Figure 1201

Toyota RAV4 EPC diagram 1201, Ventilation Hose, with 2 images and 5 PNC and OE references.

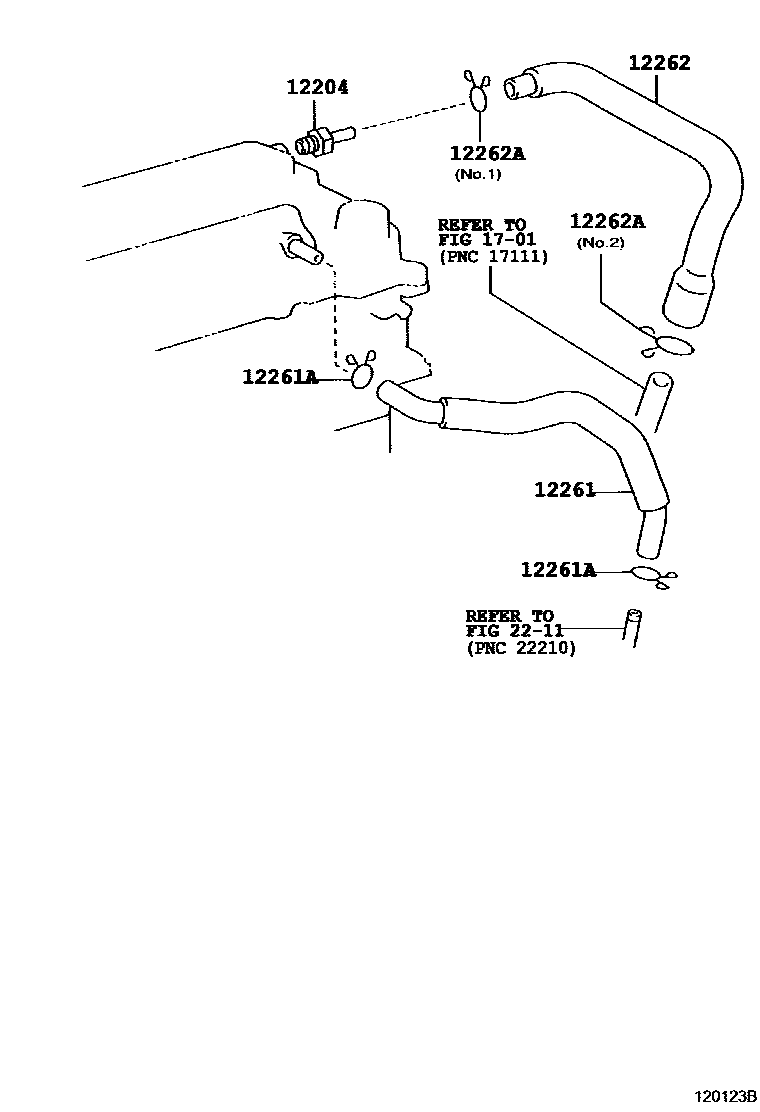

Toyota RAV4 Ventilation Hose EPC diagram — 120123B
Ventilation Hose — 120123B (200005 – 999999)

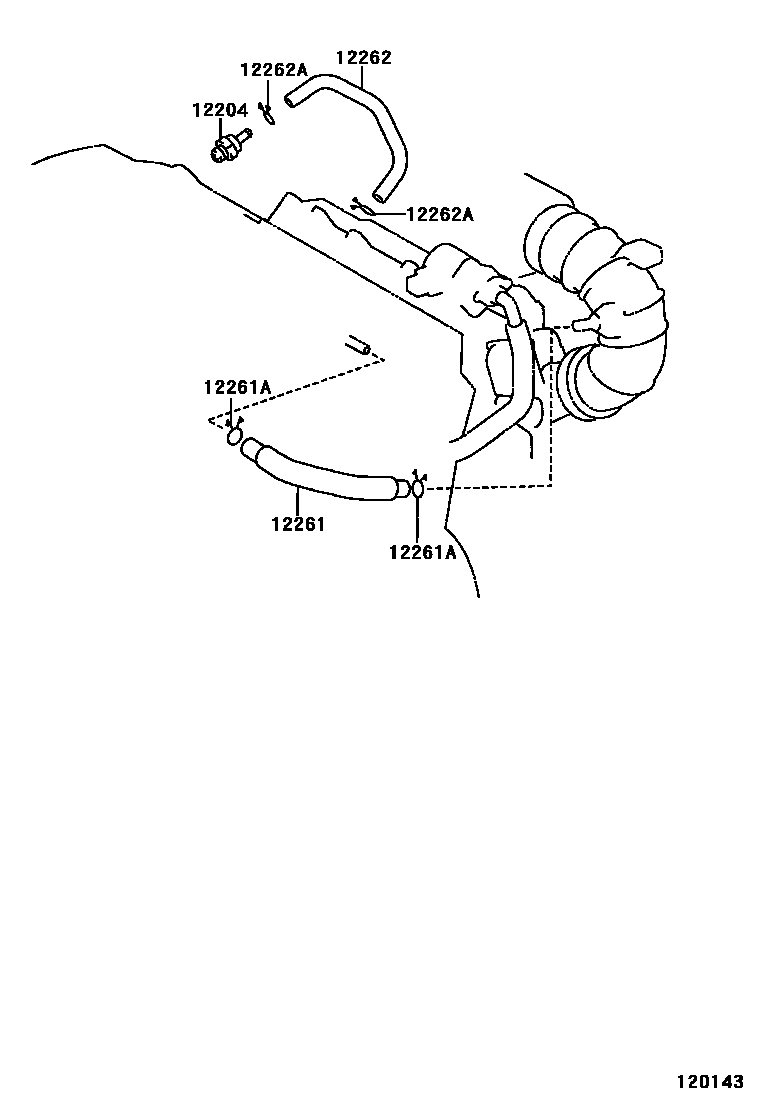

Toyota RAV4 Ventilation Hose EPC diagram — 120143
Ventilation Hose — 120143 (200005 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-22050 · 12204-22051 · 12204-28020
12261Ventilation Hose12261-0D040 · 12261-22050 · 12261-28020
12261AClip or clip (for vent hose)90467-19003 · 90467-21152
12262Ventilation hose No. 212262-0D050 · 12262-22040 · 12262-28030
12262AClamp (for vent hose No. 2)90466-18002 · 90467-13103 · 90467-19003
