Toyota RAV4 Engine Mounting — Figure 1107

Toyota RAV4 EPC diagram 1107, Engine Mounting, with 3 images and 10 PNC and OE references.

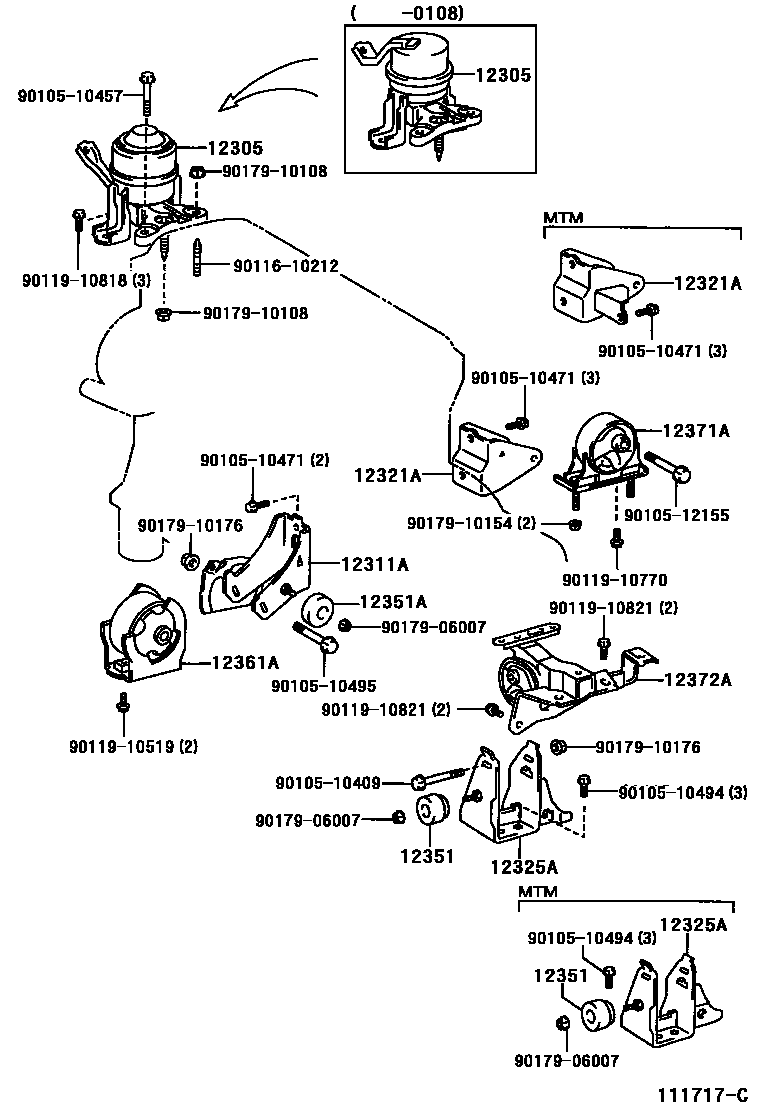

Toyota RAV4 Engine Mounting EPC diagram — 111717C
Engine Mounting — 111717C (200005 – 200307)

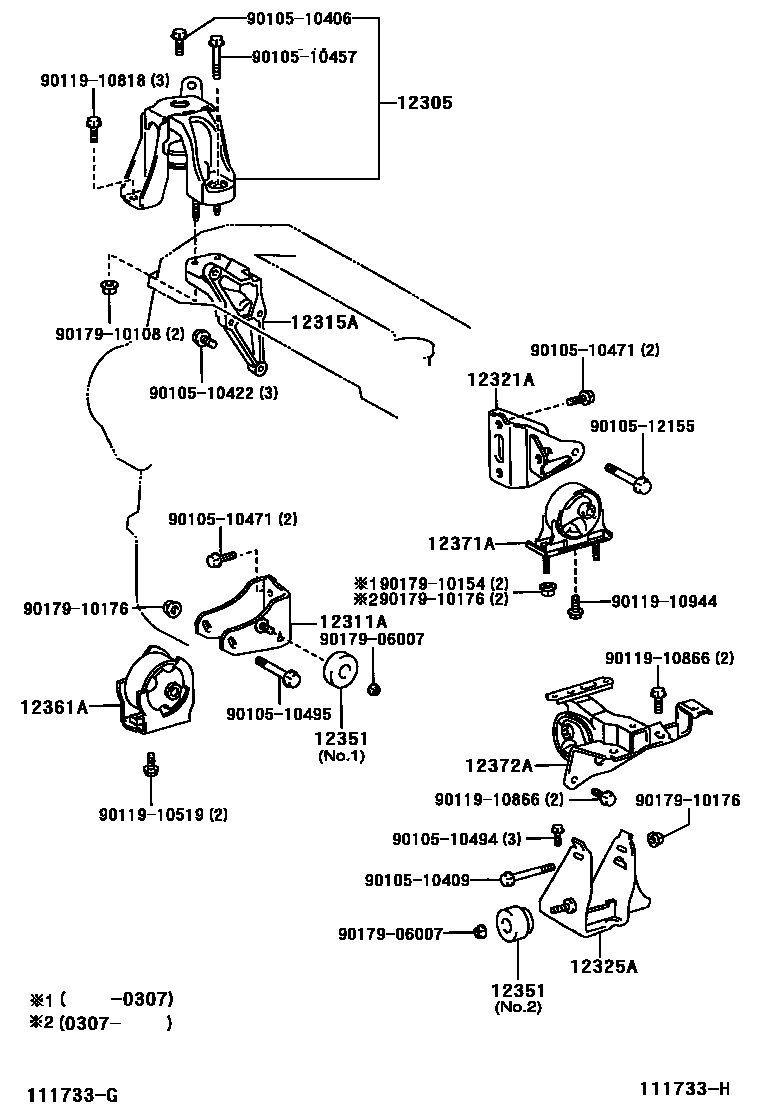

Toyota RAV4 Engine Mounting EPC diagram — 111733H
Engine Mounting — 111733H (200005 – 999999)

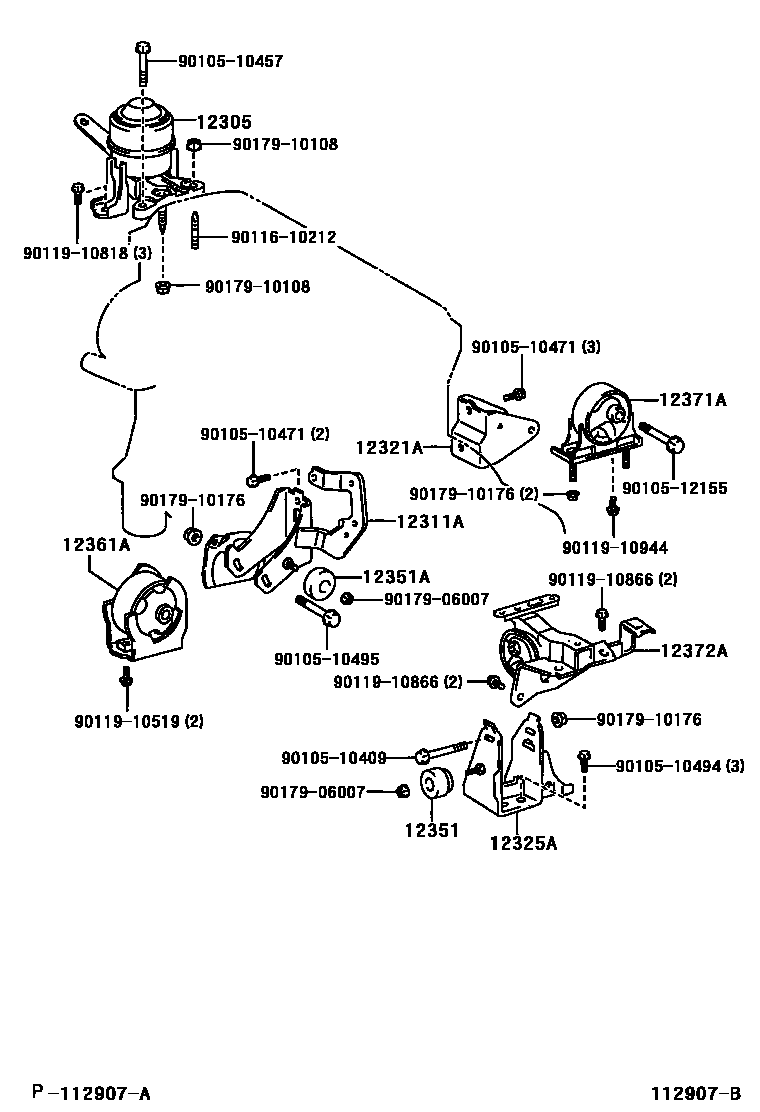

Toyota RAV4 Engine Mounting EPC diagram — 112907B
Engine Mounting — 112907B (200307 – 999999)

PNC and OE references

PNCPart nameOE numbers
12305Engine right side mounting vibration isolation pad sub-assembly12305-22100 · 12305-28060 · 12305-28150 · 12305-28151
12311AEngine front mounting bracket (for transverse engine)12311-22060 · 12311-28040 · 12311-28190
12315AEngine right side mounting bracket (for transversely mounted engine)12315-22020
12321ARear engine mounting bracket (for transverse engine)12321-22090 · 12321-28050 · 12321-28060
12325AEngine left side mounting bracket (for transversely mounted engine)12325-22080 · 12325-28040 · 12325-28050
12351engine mount shock absorber12351-64060 · 12351-74140
12351AEngine mount shock absorber (for vibration isolation pad)12351-22020
12361AEngine front mounting vibration isolation pad (for transversely mounted engine)12361-21010 · 12361-21020
12371AEngine rear mount vibration isolation pad12371-22120 · 12371-22122 · 12371-28030 · 12371-28031
12372AEngine left-side mounting vibration isolation pad (for transversely mounted engines)12372-22050 · 12372-22051 · 12372-28030 · 12372-28040 · 12372-28041
