Toyota RAV4 Cylinder Block — Figure 1105

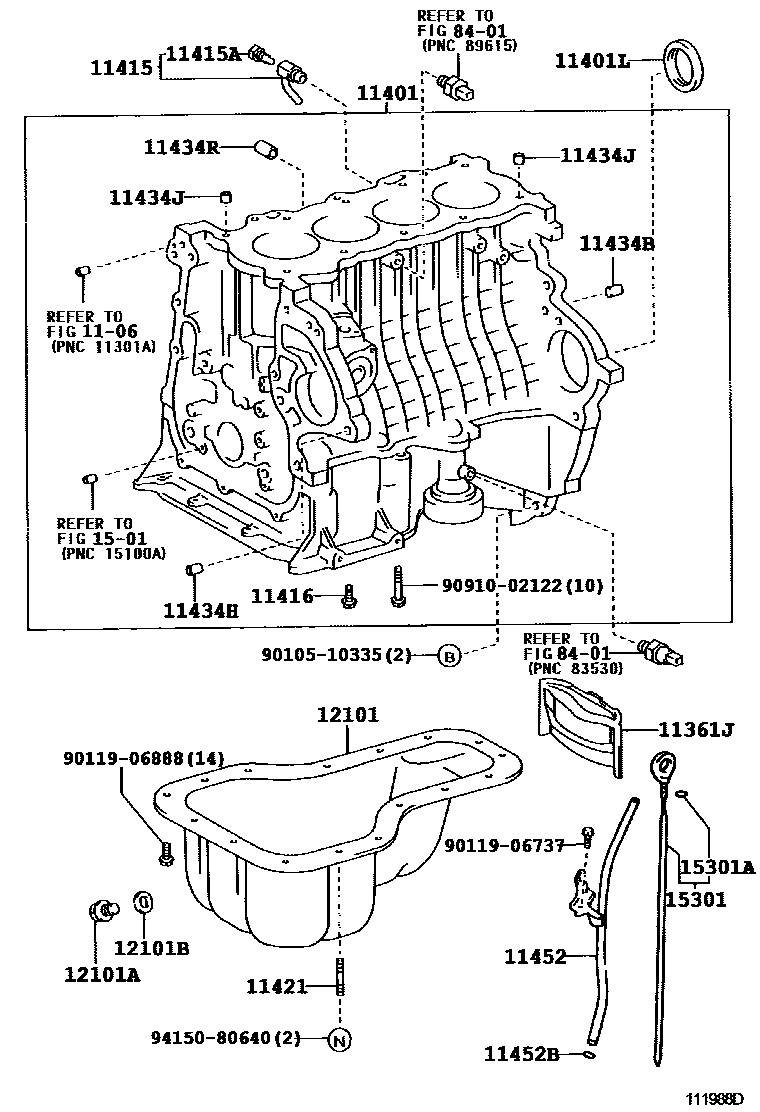

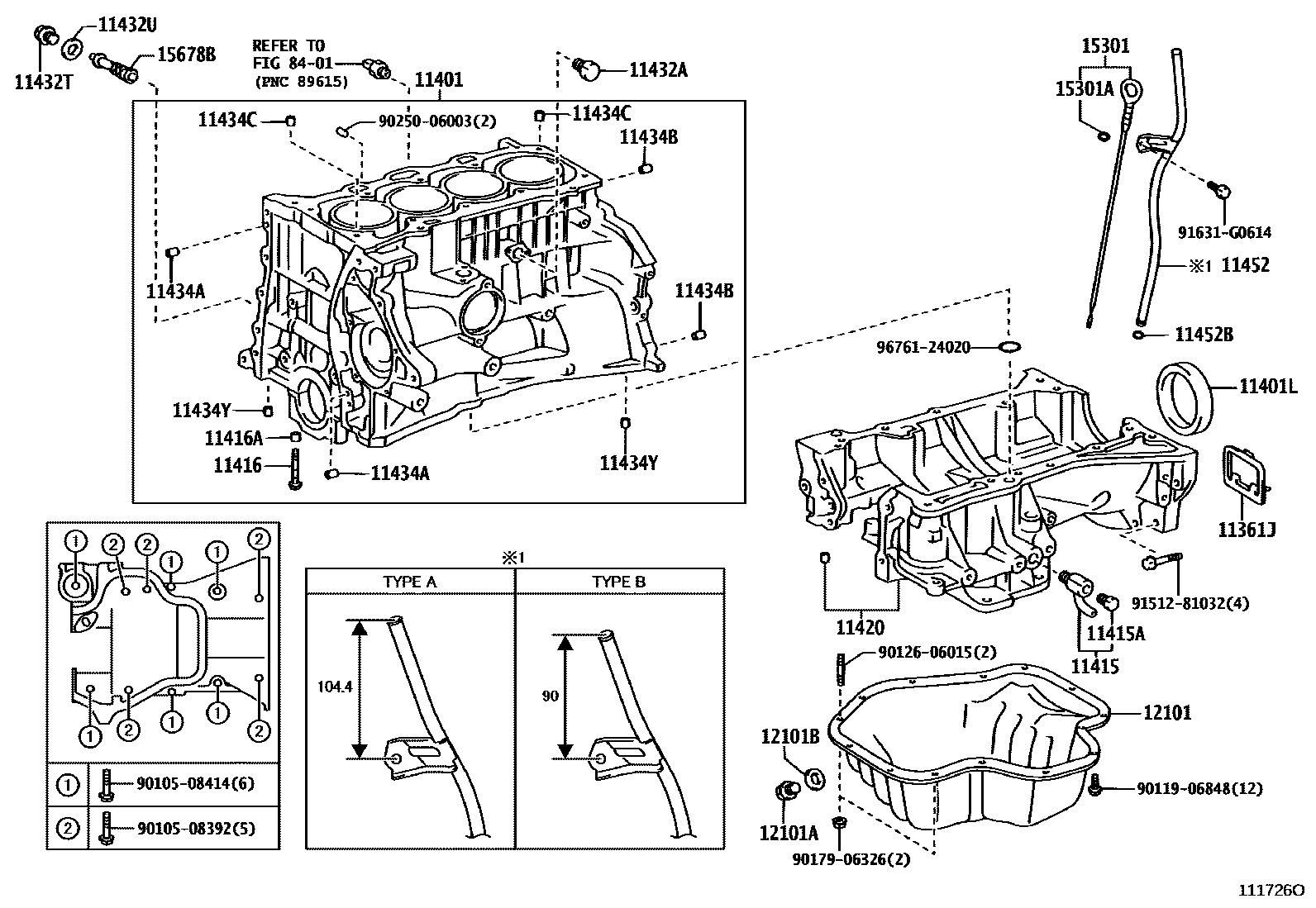

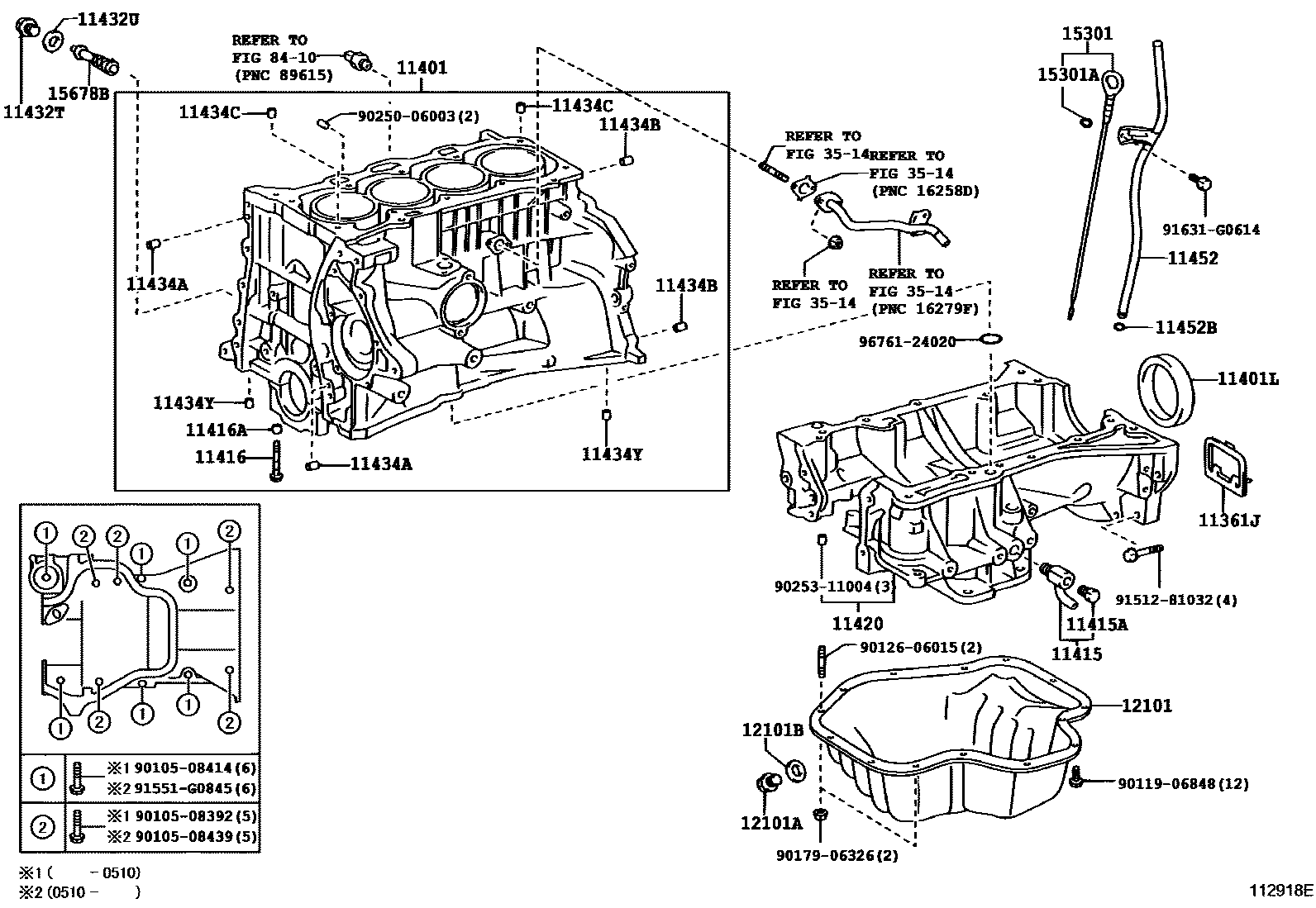

Toyota RAV4 EPC diagram 1105, Cylinder Block, with 3 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11361J | Flywheel housing bottom cover | 11361-22021 · 11361-28010 |
| 11401 | Cylinder block sub-assembly | 11410-29086 · 11410-29115 · 11410-29125 · 11410-29135 · 11410-29245 |
| 11401L | SEAL, ENGINE REAR OIL | 90311-76001 · 90311-89003 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 90910-09107 · 90910-09120 |
| 11415A | Water drain switch screw plug (for cylinder block) | 90910-09087 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90105-08363 · 90910-02124 · 91511-K0840 |
| 11416A | Ring pin (for crankshaft bearing cap assembly) | 90253-13017 |
| 11420 | Reinforce crankcase assembly | 11421-28020 · 11421-28031 · 11421-28900 |
| 11421 | Stud bolts (for oil pan) | 90126-06010 |
| 11432A | No. 1 headed tapered thread plug | 90345-52001 |
| 11432T | No. 3 headed straight thread plug (for cylinder block) | 90341-14013 |
| 11432U | No. 1 straight thread plug gasket (for cylinder block) | 90430-14009 · 90430-14011 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-08074 · 90250-08120 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 |
| 11434C | Direct sales (for cylinder head components) | 90253-14003 |
| 11434H | Ring pin (for timing belt cover assembly) | 90253-14003 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-13017 |
| 11434R | Direct selling (for drive shaft bearing bracket) | 90250-06003 |
| 11434Y | Direct sales (for oil pan) | 90250-08074 |
| 11452 | Engine oil level gauge guide | 11452-22030 · 11452-28010 · 11452-28011 · 11452-28040 |
| 11452B | O-ring (for oil level gauge guide) | 96721-19010 |
| 12101 | Oil pan sub-assembly | 12101-22024 · 12101-28050 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 · 90341-12026 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12031 |
| 15301 | Engine oil level scoring assembly | 15301-22030 · 15301-22050 · 15301-28020 · 15301-28050 · 15301-28051 |
| 15301A | O-ring (for engine oil level gauge) | 96741-19005 |
| 15678B | Oil control valve filter | 15678-28010 |
