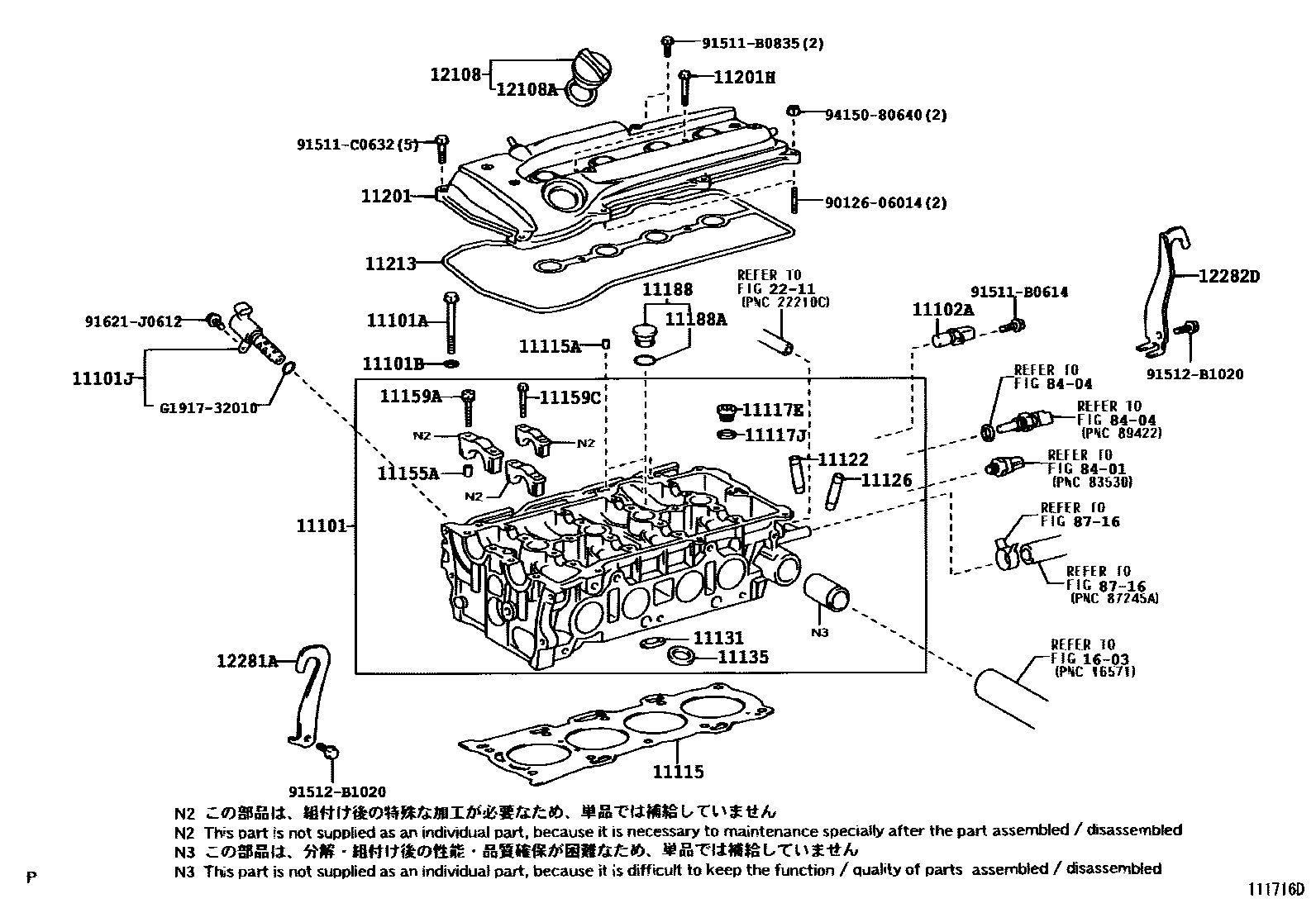

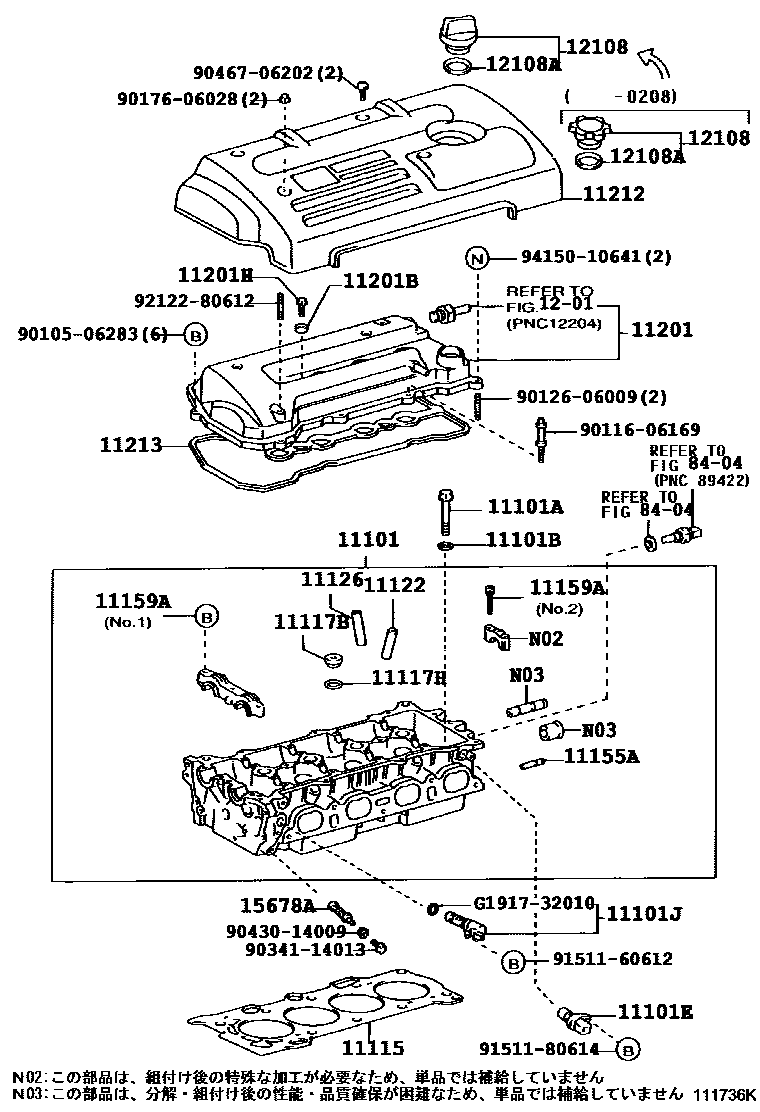

Toyota RAV4 Cylinder Head — Figure 1104
Toyota RAV4 EPC diagram 1104, Cylinder Head, with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-0D010 · 11101-22051 · 11101-22052 · 11101-22071 · 11101-28020 · 11101-28021 · 11101-28041 · 11101-28042 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90910-02134 · 90910-02141 · 90910-02150 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-10344 · 90201-11033 · 90201-11034 |
| 11101E | Cam position sensor | 90919-05026 |
| 11101J | Camshaft timing oil control valve assembly | 15330-22010 · 15330-22030 · 15330-28020 |
| 11102A | Camshaft position sensor | 90919-05026 |
| 11115 | GASKET, CYLINDER HEAD | 11115-22040 · 11115-22041 · 11115-22050 · 11115-28020 · 11115-28021 · 11115-28022 · 11115-28030 · 11115-28031 |
| 11115A | PIN, RING | 90250-05021 |
| 11117B | No. 2 headed tapered thread plug | 90341-20002 |
| 11117E | PLUG, STRAIGHT SCREW W/HEAD, NO.1 | 90341-27006 |
| 11117H | Gasket (for coolant hole) | 90430-20004 |
| 11117J | Gasket (for cylinder head thread plug) | 90430-27005 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-20020 · 11122-22030 · 11122-28010 · 11123-20020 · 11123-22030 · 11123-28010 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11122-20020 · 11122-22030 · 11123-20020 · 11123-22030 · 11126-20020 · 11127-20020 |
| 11131 | intake valve seat | 11131-28021 · 11132-28021 |
| 11135 | Exhaust valve seat | 11135-28010 · 11135-28030 · 11135-28040 · 11136-28010 · 11136-28030 · 11136-28040 |
| 11155A | PIN, RING W/HEAD | 90250-06001 · 90253-11001 · 90253-11004 · 90253-11021 |
| 11159A | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90080-11414 · 90080-11415 · 90105-08337 · 90105-08353 · 90109-06080 · 90119-08A29 |
| 11159C | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90119-06902 |
| 11188 | Camshaft housing screw plug | 11188-28010 |
| 11188A | O-ring (for camshaft housing plug) | 90301-21013 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-22060 · 11201-28020 · 11201-28021 · 11201-28022 |
| 11201B | Gasket (for cylinder head cover) | 90210-06013 |
| 11201H | Bolts (for cylinder head cover) | 90105-06202 · 90119-06903 |
| 11212 | No. 2 cylinder head cover | 11212-22070 · 11212-22130 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-22050 · 11213-28040 · 11213-28041 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-21010 · 12180-28010 · 12180-55010 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90430-37004 · 90430-37140 |
| 12281A | Engine No. 1 hanger | 12281-28010 |
| 12282D | ENGINE HANGER, NO.2 | 12282-28010 |
| 15678A | Oil control valve filter | 15678-21010 |
