Toyota RAV4 Engine Overhaul Gasket Kit — Figure 1103

Toyota RAV4 EPC diagram 1103, Engine Overhaul Gasket Kit, with 6 images and 2 PNC and OE references.

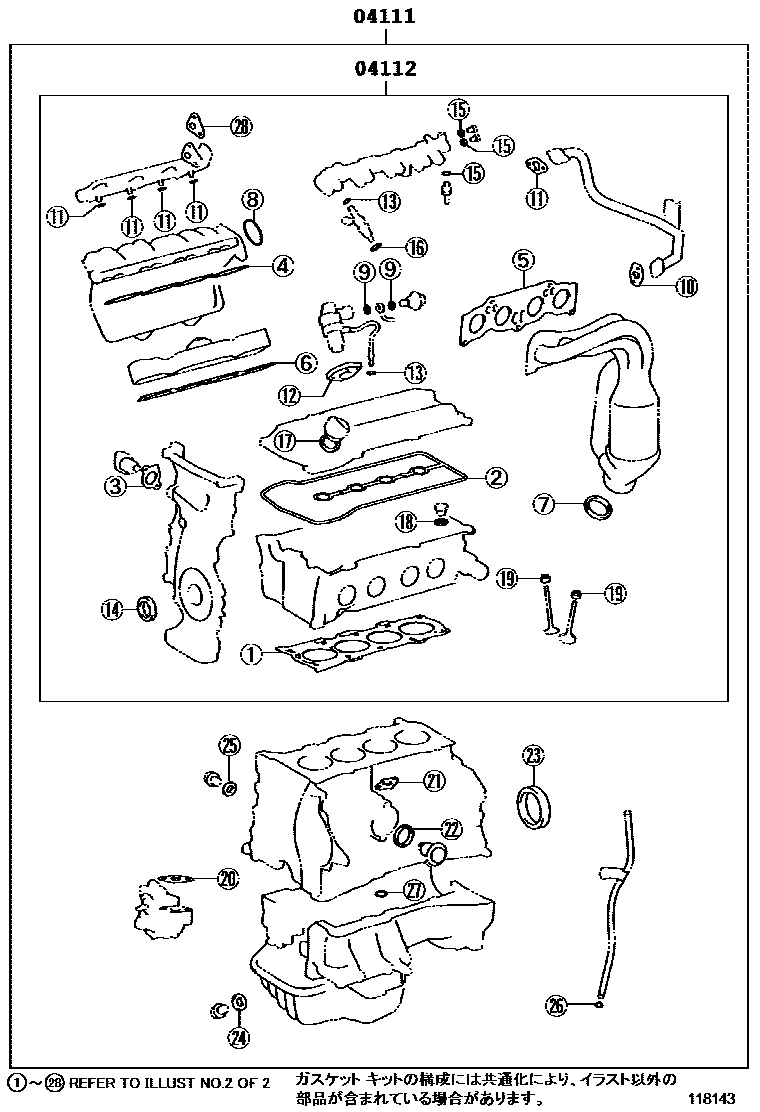

Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 118143
Engine Overhaul Gasket Kit — 118143 (200005 – 999999)

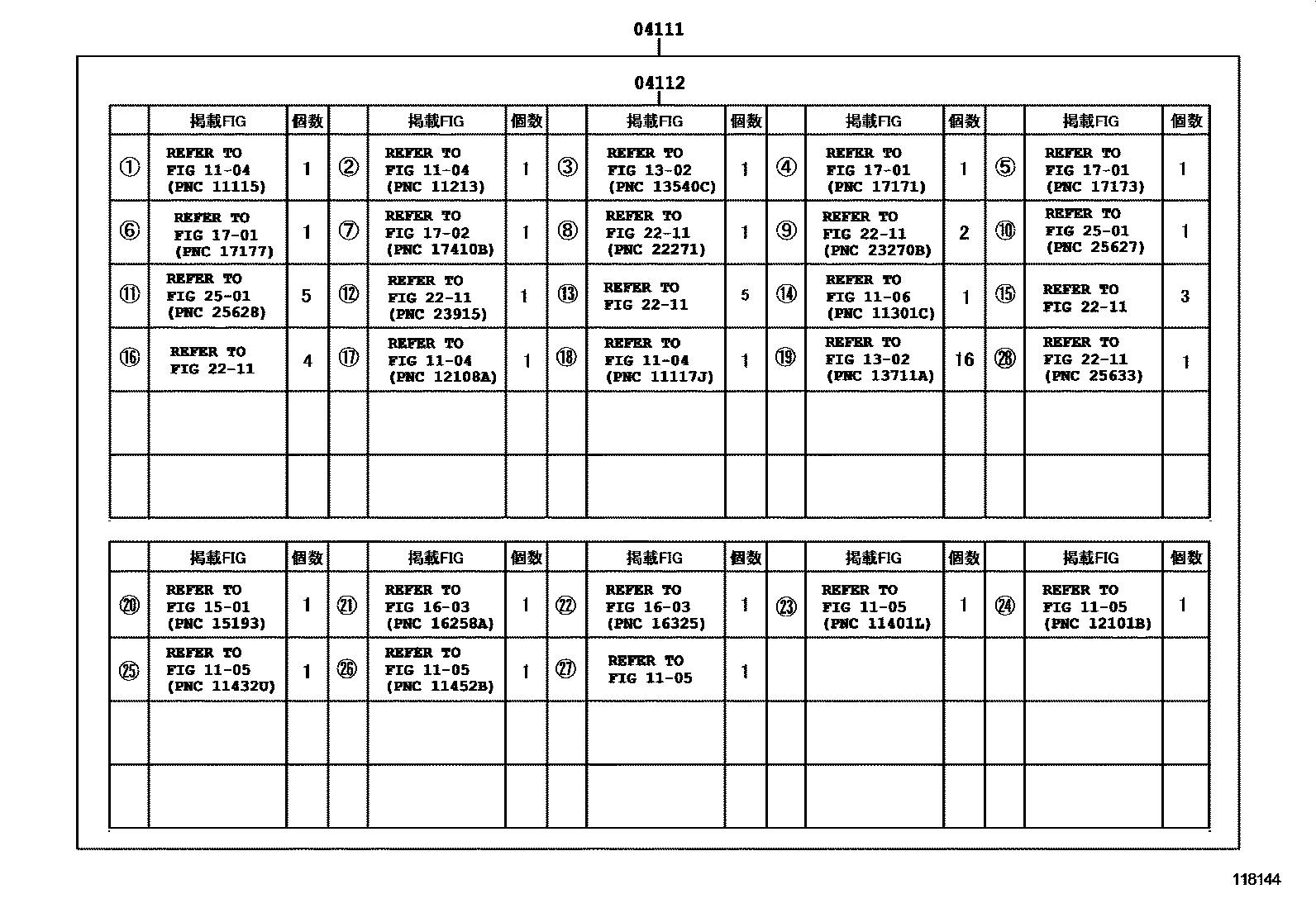

Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 118144
Engine Overhaul Gasket Kit — 118144 (200005 – 999999)

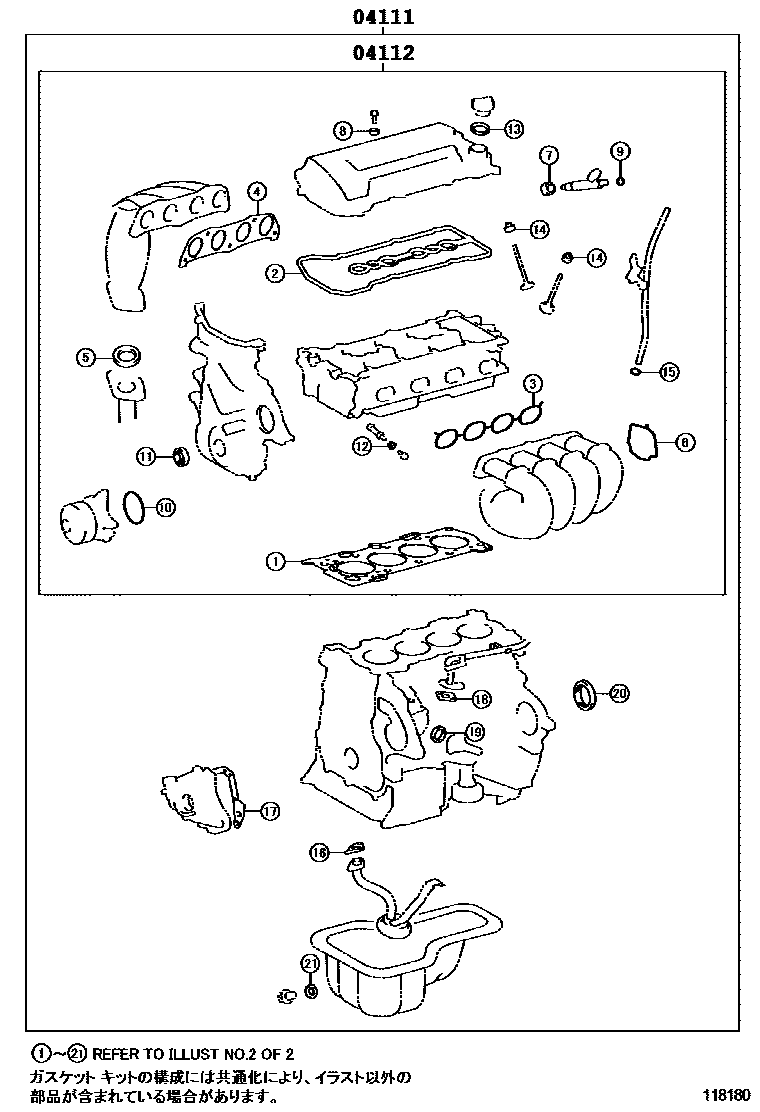

Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 118180
Engine Overhaul Gasket Kit — 118180 (200005 – 200404)

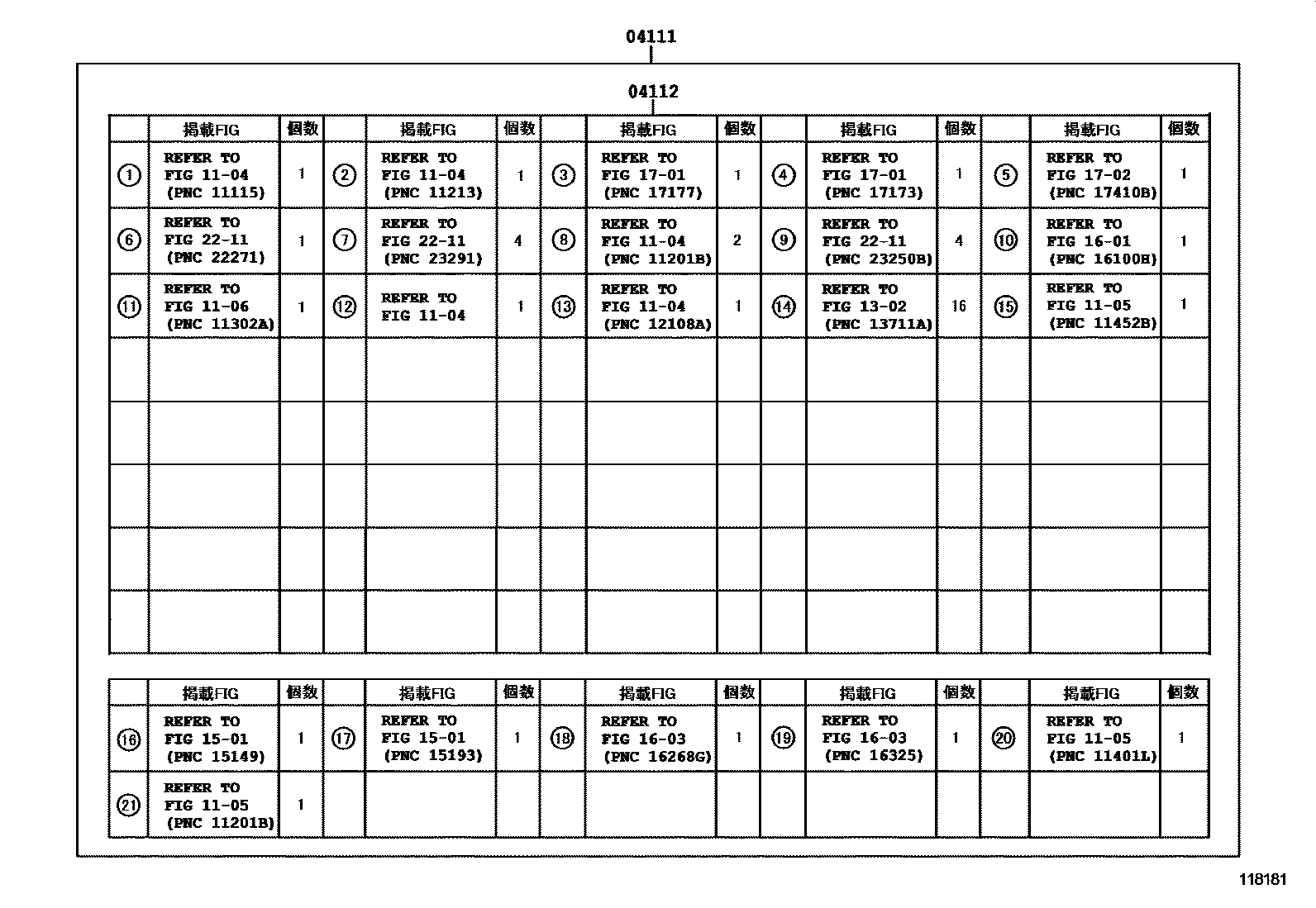

Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 118181
Engine Overhaul Gasket Kit — 118181 (200005 – 200404)

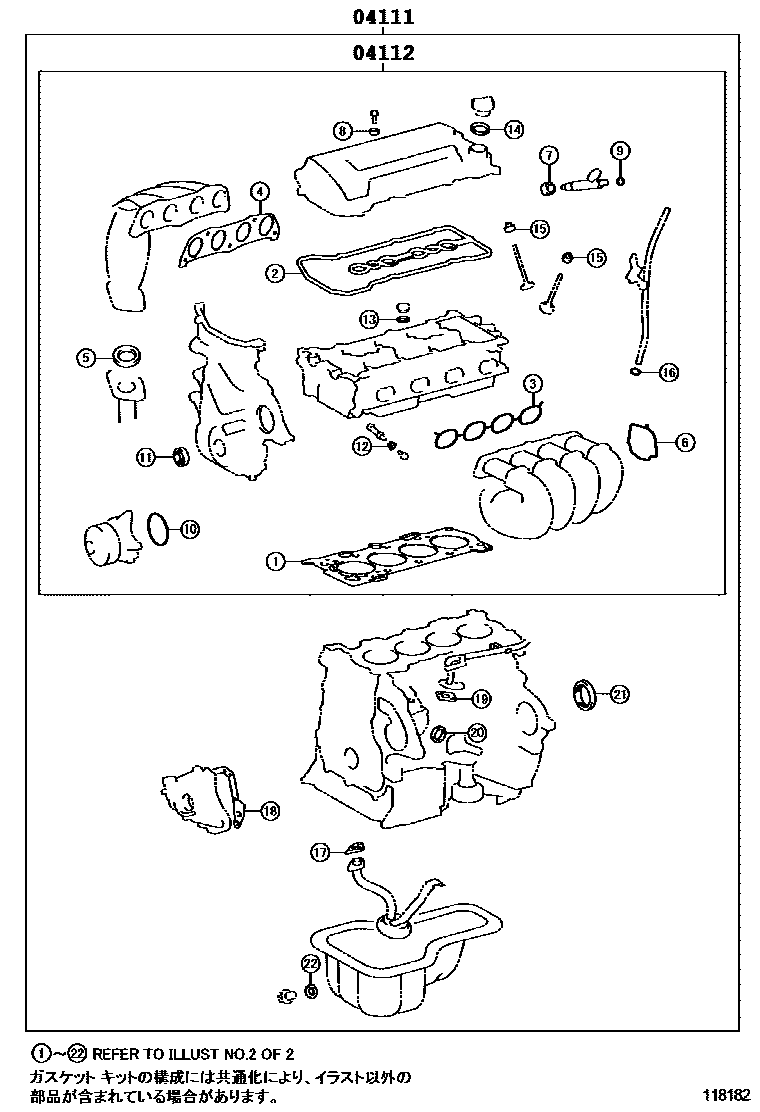

Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 118182
Engine Overhaul Gasket Kit — 118182 (200404 – 999999)

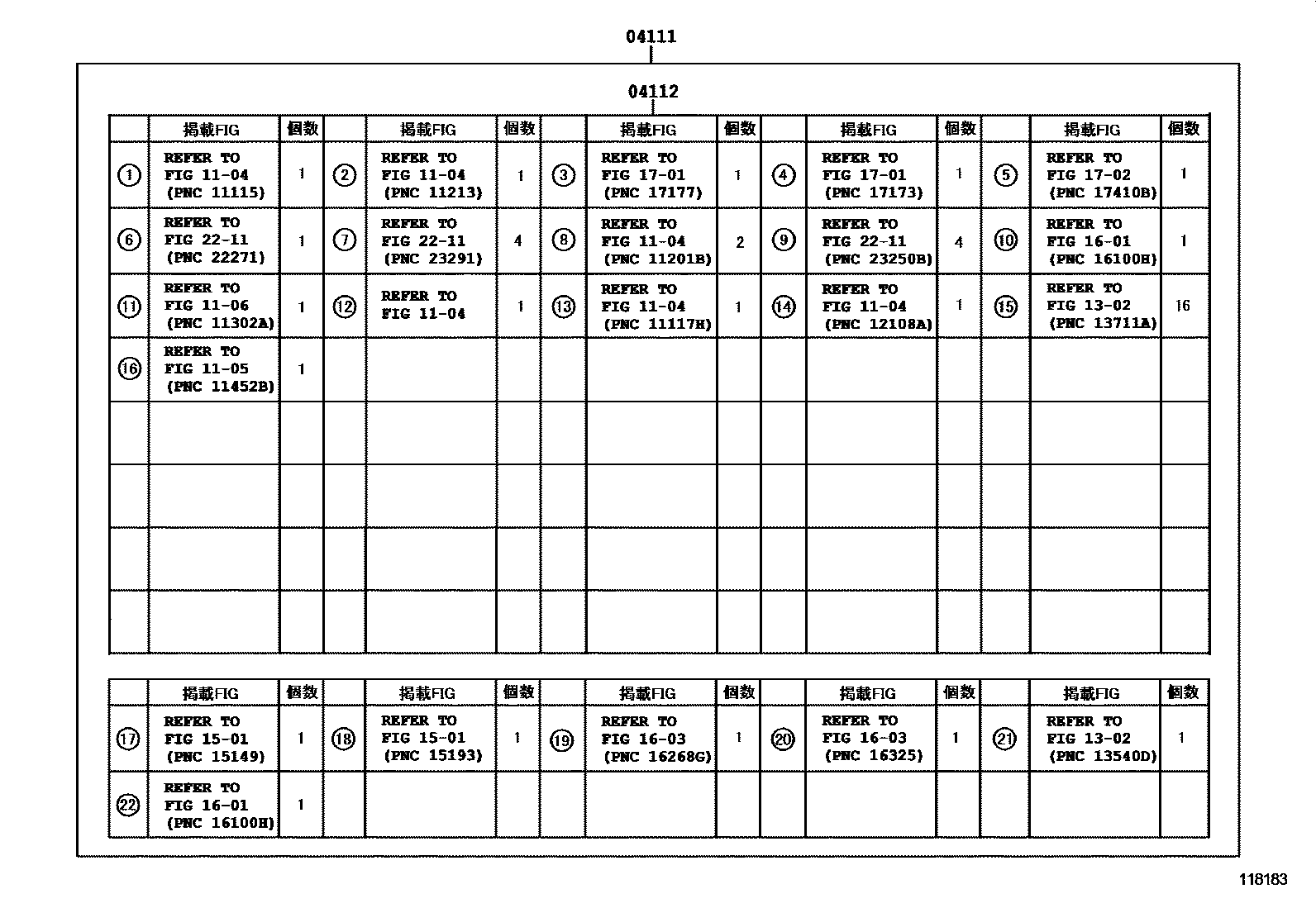

Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 118183
Engine Overhaul Gasket Kit — 118183 (200404 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-22110 · 04111-22111 · 04111-22112 · 04111-22650 · 04111-22860 · 04111-28060 · 04111-28061 · 04111-28062 · 04111-28063 · 04111-28064 · 04111-28065 · 04111-28160 · 04111-28391 · 04111-28392
04112Engine valve grinding pad assembly04112-22110 · 04112-22111 · 04112-22112 · 04112-22590 · 04112-22710 · 04112-28060 · 04112-28061 · 04112-28062 · 04112-28063 · 04112-28064 · 04112-28065 · 04112-28160 · 04112-28371 · 04112-28372
