Toyota RAV4 Short Block Assembly — Figure 1102

Toyota RAV4 EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

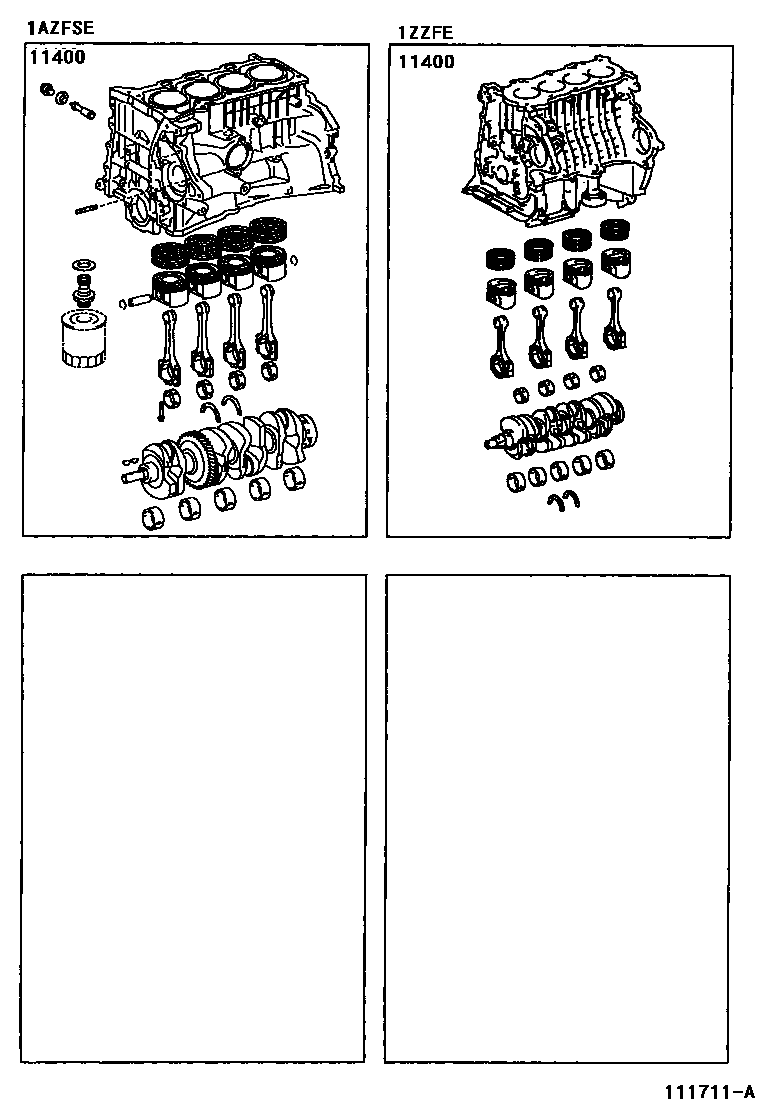

Toyota RAV4 Short Block Assembly EPC diagram — 111711A
Short Block Assembly — 111711A (200005 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-22060 · 11400-22061 · 11400-22100 · 11400-22180 · 11400-22190 · 11400-22220 · 11400-28060 · 11400-28150
