Toyota RAV4 Heating & Air Conditioning - Compressor — Figure 8719

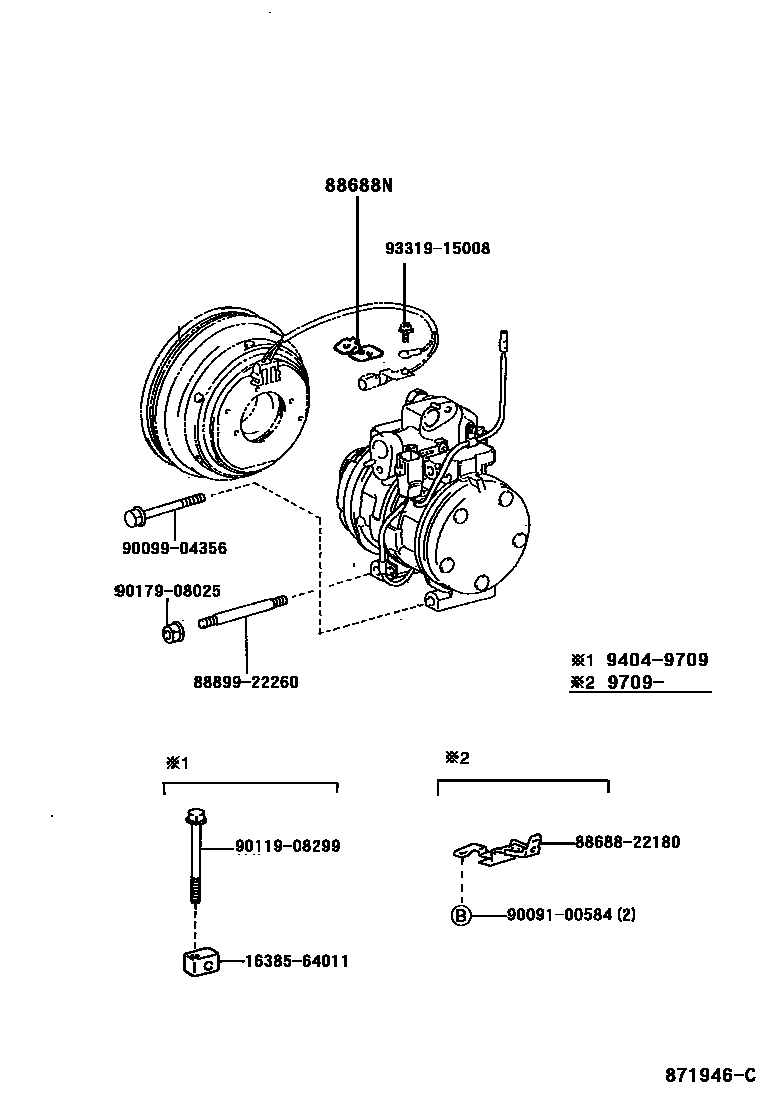

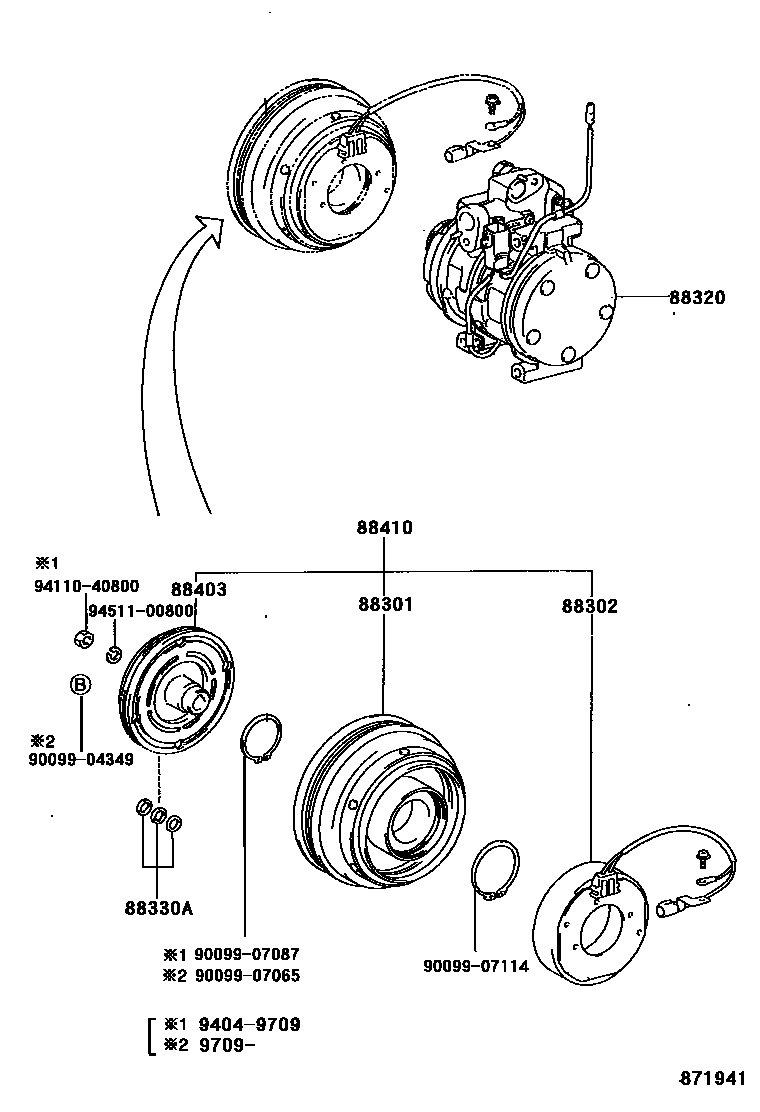

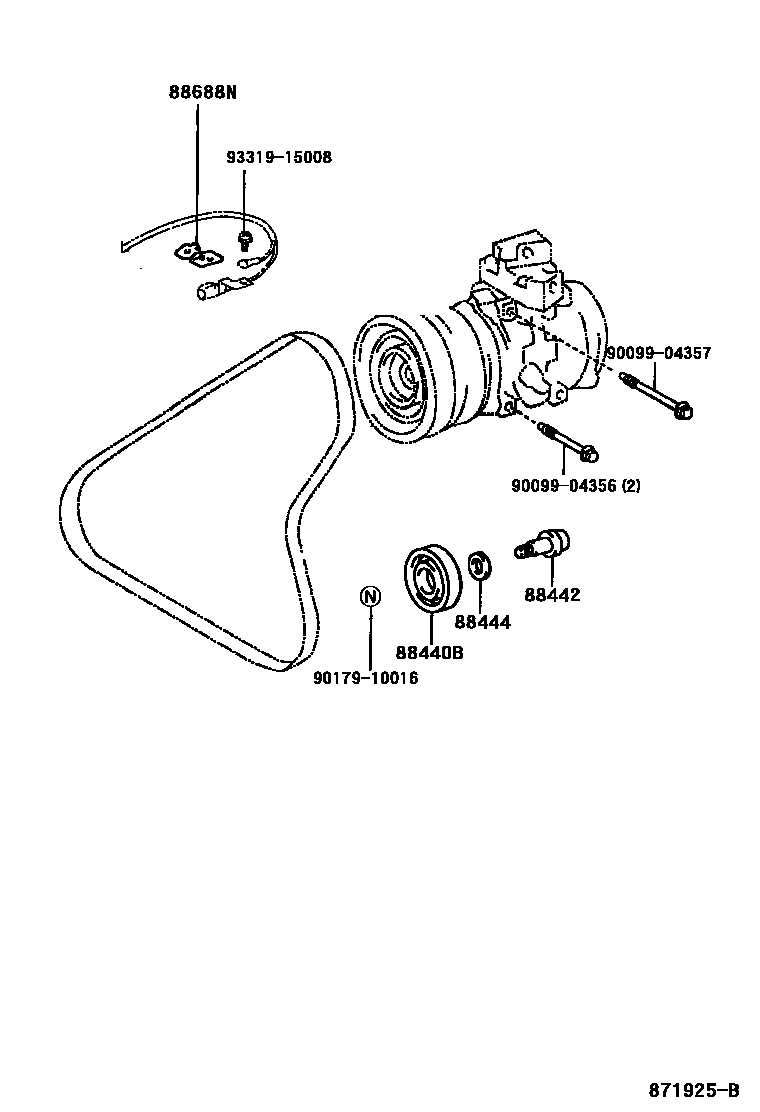

Toyota RAV4 EPC diagram 8719, Heating & Air Conditioning - Compressor, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-2A010 · 88412-32011 · 88412-44010 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-2A030 · 88411-42010 · 88411-43010 |
| 88320 | Cooler Compressor Assembly | 88320-42010 · 88320-42011 · 88320-42040 · 88320-42050 · 88320-42060 |
| 88330A | Washer (for electromagnetic clutch) | 88335-12050 · 88335-14020 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-12030 · 88403-30290 |
| 88410 | Magnetic Clutch Assembly | 88410-42010 · 88410-42020 · 88410-42030 · 88410-44010 |
| 88440B | Idler gear assembly | 88440-42011 |
| 88442 | idler shaft | 88442-42010 |
| 88444 | Idler gear bracket | 88444-42010 |
| 88688N | cooler bracket | 88688-21020 · 88688-2D800 · 88688-33260 |
