Toyota RAV4 Heating & Air Conditioning - Cooler Piping — Figure 8718

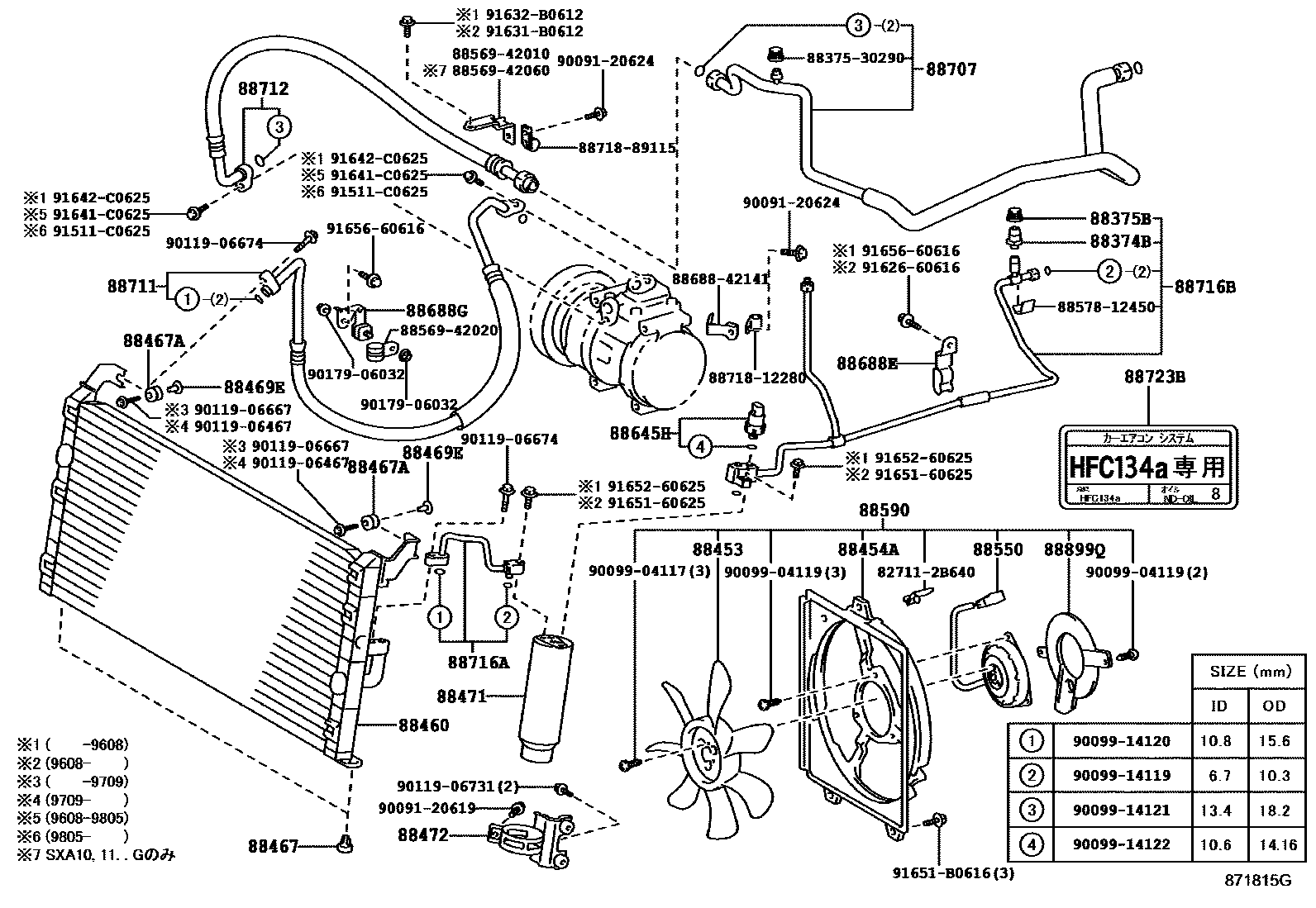

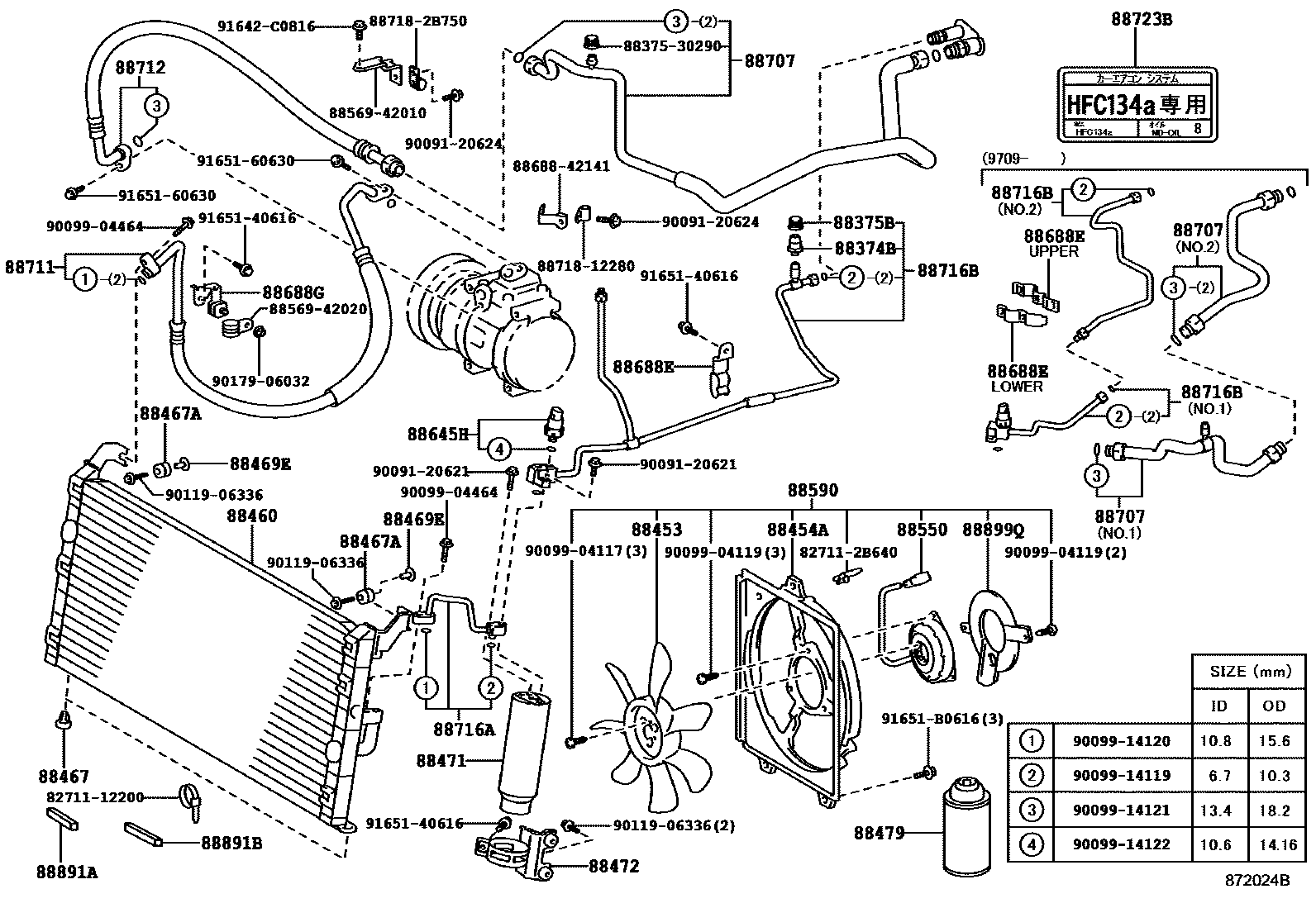

Toyota RAV4 EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30280 |
| 88453 | Cooling fan (for condenser) | 88453-20070 |
| 88454A | fan cover | 88454-42010 · 88454-42011 |
| 88460 | Air conditioning condenser assembly | 88460-42020 · 88460-42021 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-16090 |
| 88467A | No. 2 air conditioning condenser buffer pad | 90099-32130 |
| 88469E | No. 2 condenser bracket collar | 88469-28010 |
| 88471 | Air conditioning fluid storage tank | 88471-20050 |
| 88472 | No. 1 liquid storage tank bracket | 88472-42010 |
| 88479 | Air conditioning Freon gas (cooler refrigerant drum) | 90986-02007 |
| 88550 | Blower motor assembly (for condenser) | 16363-74180 |
| 88590 | Blower assembly with hood | 88590-42010 · 88590-42011 |
| 88645H | No. 1 pressure switch | 88645-20050 |
| 88688E | Cooler No. 1 refrigerant hose bracket | 88688-42020 · 88688-42021 · 88688-42280 · 88688-42290 |
| 88688G | Cooler refrigerant pipe bracket | 88688-42010 |
| 88707 | Suction pipe sub-assembly | 88717-42010 · 88717-42011 · 88717-42080 · 88717-42090 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88703-42021 · 88703-42022 · 88711-42010 · 88711-42030 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-42020 · 88712-42021 · 88712-42022 · 88712-42060 · 88712-42061 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-42010 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-42030 · 88716-42081 · 88716-42082 · 88716-42110 · 88716-42130 |
| 88723B | Cooler maintenance warning label | 88723-20030 |
| 88891A | Seal A (for cooler) | 88578-42040 |
| 88891B | Seal B (for cooler) | 88578-42030 |
| 88899Q | Cover plate | 88899-42060 |
