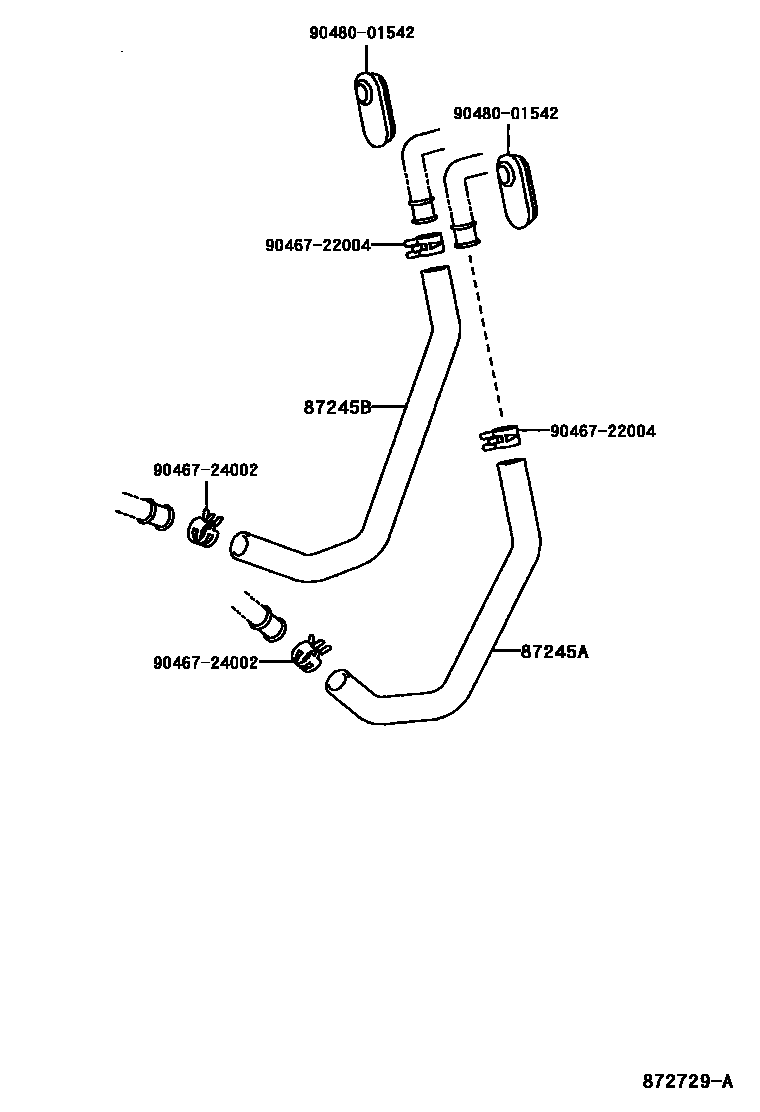

Toyota RAV4 暖风和空调系统 - 水管 — Figure 8716
Toyota RAV4 EPC diagram 8716, 暖风和空调系统 - 水管, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87245A | Heater water inlet hose A | 87245-42010 · 87245-42011 · 87245-42050 · 87245-42051 · 87245-42052 · 87245-42070 |
| 87245B | Heater water inlet hose B | 87245-42020 · 87245-42060 · 87245-42061 · 87245-42080 |
