Toyota RAV4 暖风和空调系统 - 冷却器组件 — Figure 8714

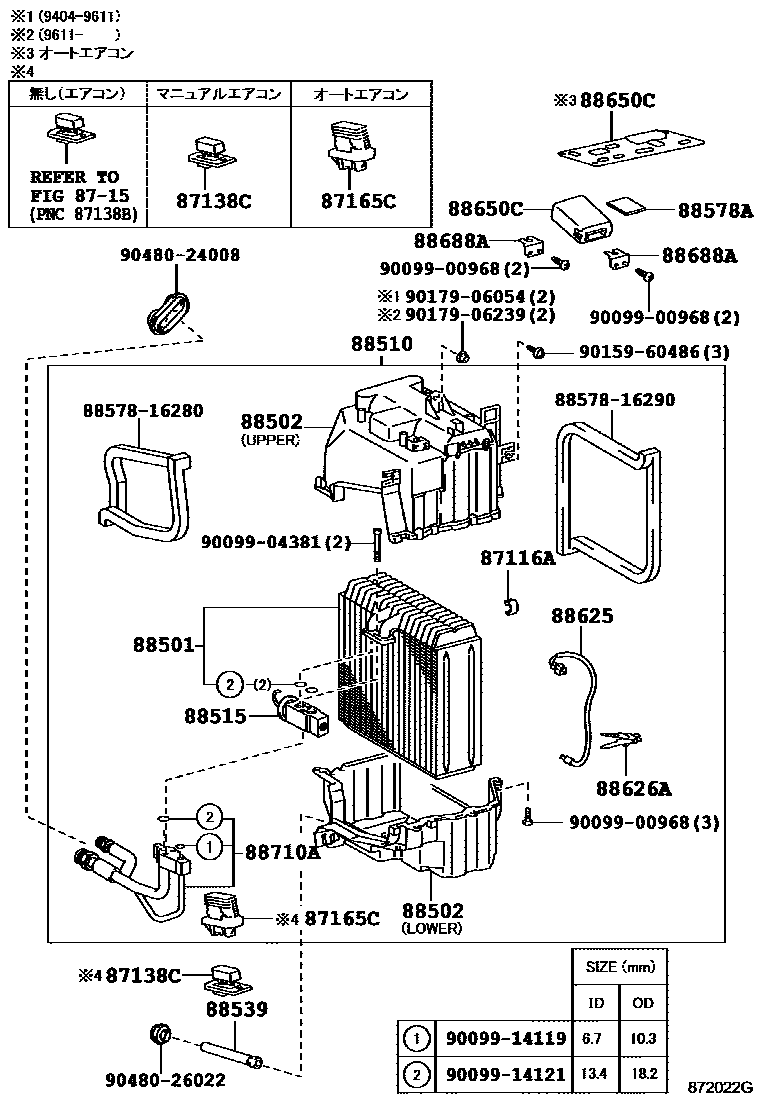

Toyota RAV4 EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87116A | Fixing spring (for cooler unit housing) | 87116-14010 |
| 87138C | Blower resistor | 87138-42010 |
| 87165C | Blower motor control device | 87165-42010 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-42010 · 88501-42011 |
| 88502 | Cooling device shell sub-assembly | 88502-42010 · 88502-42011 · 88502-42020 · 88502-42021 |
| 88510 | Cooler device assembly | 88510-42030 · 88510-42031 · 88510-42090 |
| 88515 | Cooler expansion valve | 88515-20100 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-42010 |
| 88578A | Cooler stabilized amplifier seal | 88578-42010 |
| 88625 | Cooler No. 1 Thermistor | 88625-20340 |
| 88626A | Thermistor mount | 88569-20160 · 88626-28010 |
| 88650C | Air conditioning amplifier sub-assembly | 88650-42010 · 88650-42050 |
| 88688A | Cooler stabilized amplifier stand | 88688-42050 · 88688-42151 |
| 88710A | Air conditioning pipe assembly | 88710-42010 |
