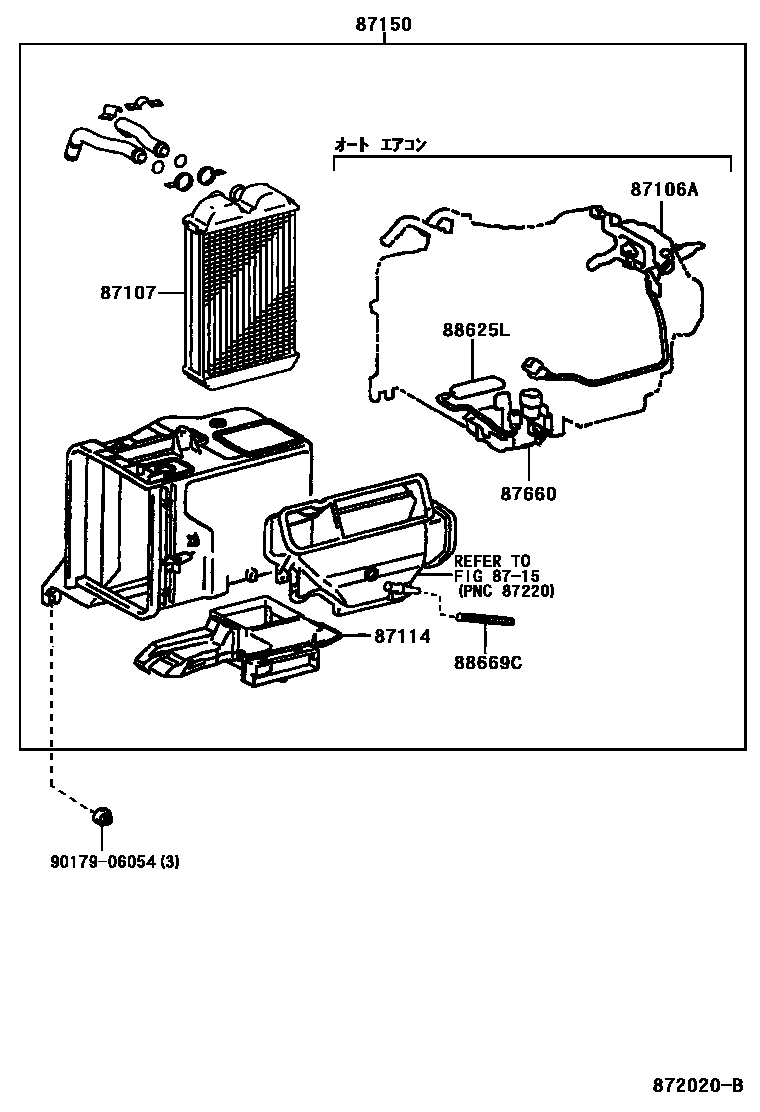

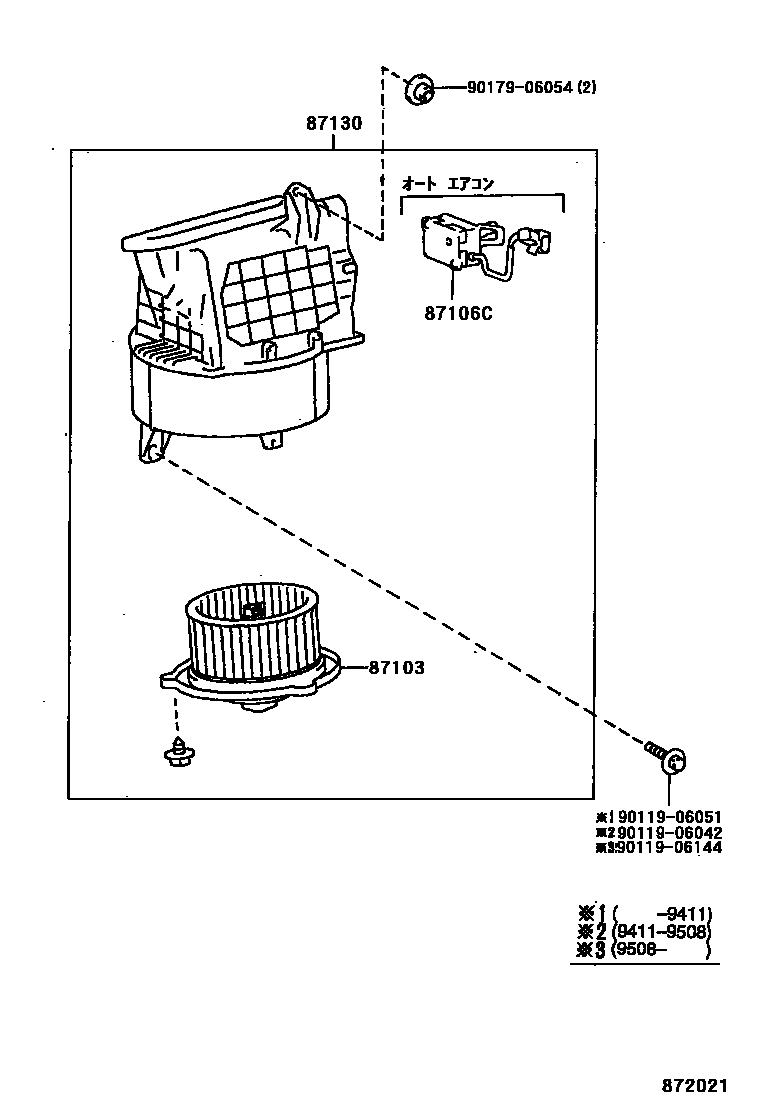

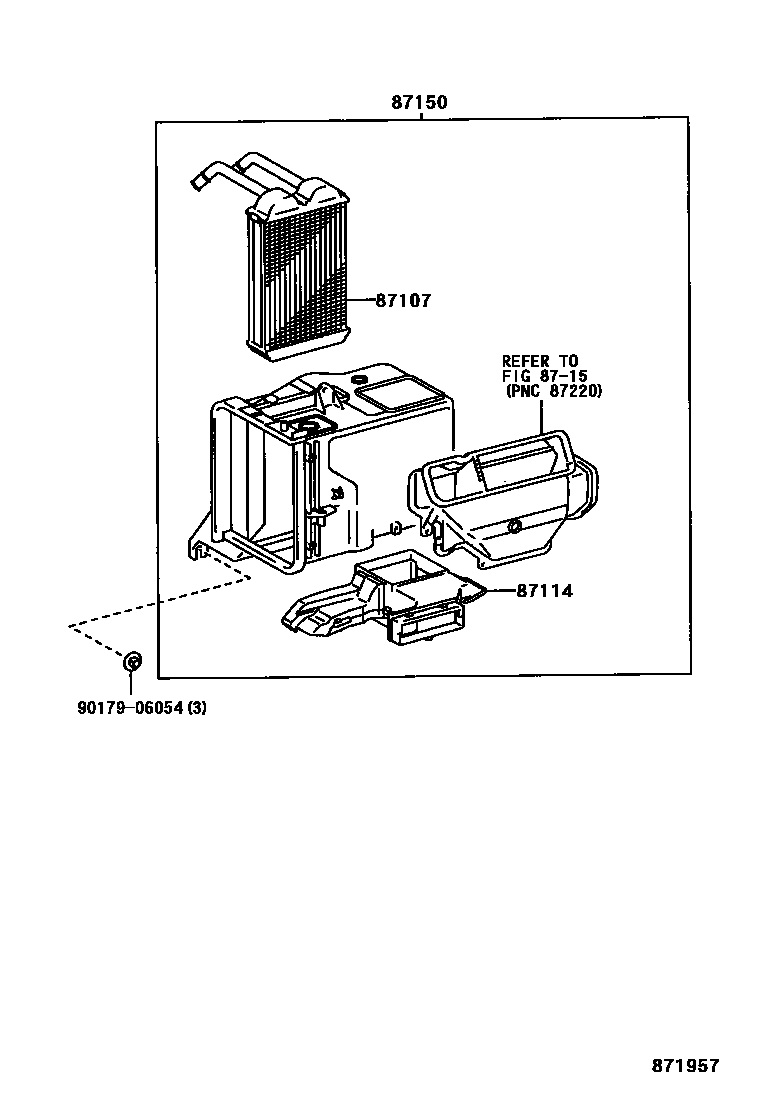

Toyota RAV4 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712
Toyota RAV4 EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87103 | Heater blower motor sub-assembly with fan | 87103-17010 · 87103-42010 |
| 87106A | Damper servo mechanism sub-assembly | 87106-42010 |
| 87106C | Damper servo mechanism sub-assembly (for blower) | 87106-16020 |
| 87107 | Heater radiator device sub-assembly | 87107-10350 · 87107-42010 · 87107-42020 · 87107-42050 · 87107-42080 · 87107-42100 · 87107-42110 |
| 87114 | heater cover | 87114-42010 · 87114-42020 |
| 87130 | Front heater blower assembly | 87130-16140 · 87130-16150 |
| 87150 | Heater radiator assembly | 87150-42010 · 87150-42011 · 87150-42020 · 87150-42021 · 87150-42080 · 87150-42090 |
| 87660 | Air conditioning servo mechanism assembly | 88660-42030 |
| 88625L | Cooler thermistor | 88790-42010 |
| 88669C | air hose | 88669-33050 |
