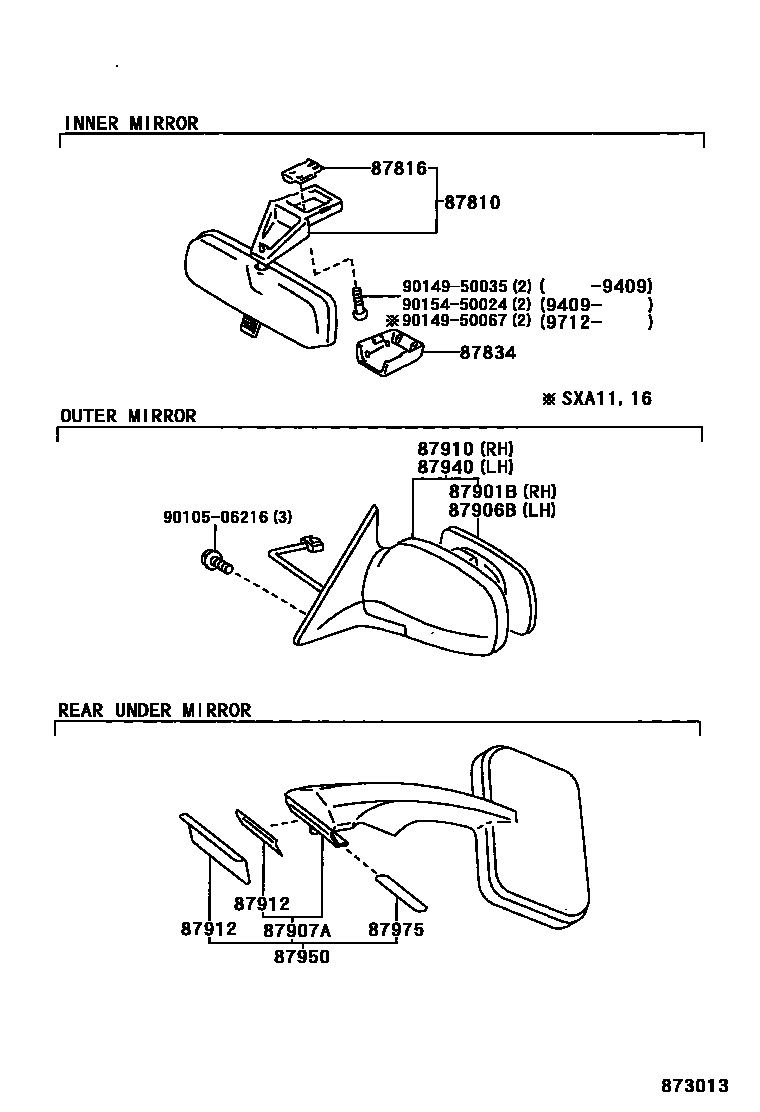

Toyota RAV4 后视镜 — Figure 8701
Toyota RAV4 EPC diagram 8701, 后视镜, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87816 | Interior rearview mirror spring | 74372-01020 · 74372-30030 |
| 87901B | Right exterior rearview mirror sub-assembly | 87931-42010 · 87931-42240 · 87931-42340 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-2B510 · 87961-42240 · 87961-42330 |
| 87907A | Exterior rear view mirror sub-assembly | 87907-42010 |
| 87910 | Right exterior rearview mirror assembly | 87910-42010 · 87910-42020 · 87910-42080 · 87910-42110 · 87910-42220 · 87910-42230 · 87910-42240 · 87910-42250 |
| 87912 | Exterior mirror protection device | 87912-42010 · 87912-42020 |
| 87940 | Left exterior rearview mirror assembly | 87940-42050 · 87940-42140 · 87940-42160 · 87940-42170 · 87940-42220 · 87940-42230 · 87940-42240 · 87940-42250 |
| 87950 | Exterior rear view mirror assembly | 87950-42010 |
| 87975 | Exterior rear view mirror bracket | 87975-42010 |
