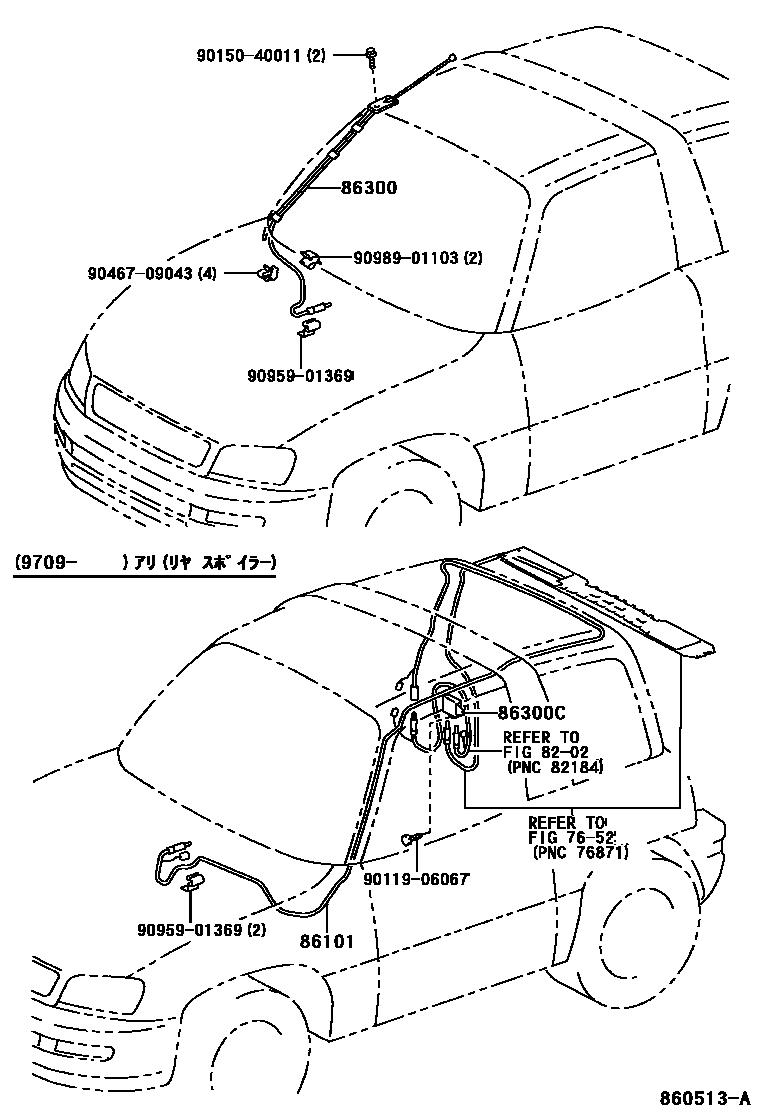

Toyota RAV4 antenna — Figure 8604
Toyota RAV4 EPC diagram 8604, antenna, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-42020 · 86101-42030 |
| 86300 | Antenna assembly with fixing parts | 86300-42010 · 86300-42030 |
| 86300C | Amplifier antenna assembly | 86300-42050 |
