Toyota RAV4 收音机、放大器和冷凝器 — Figure 8601

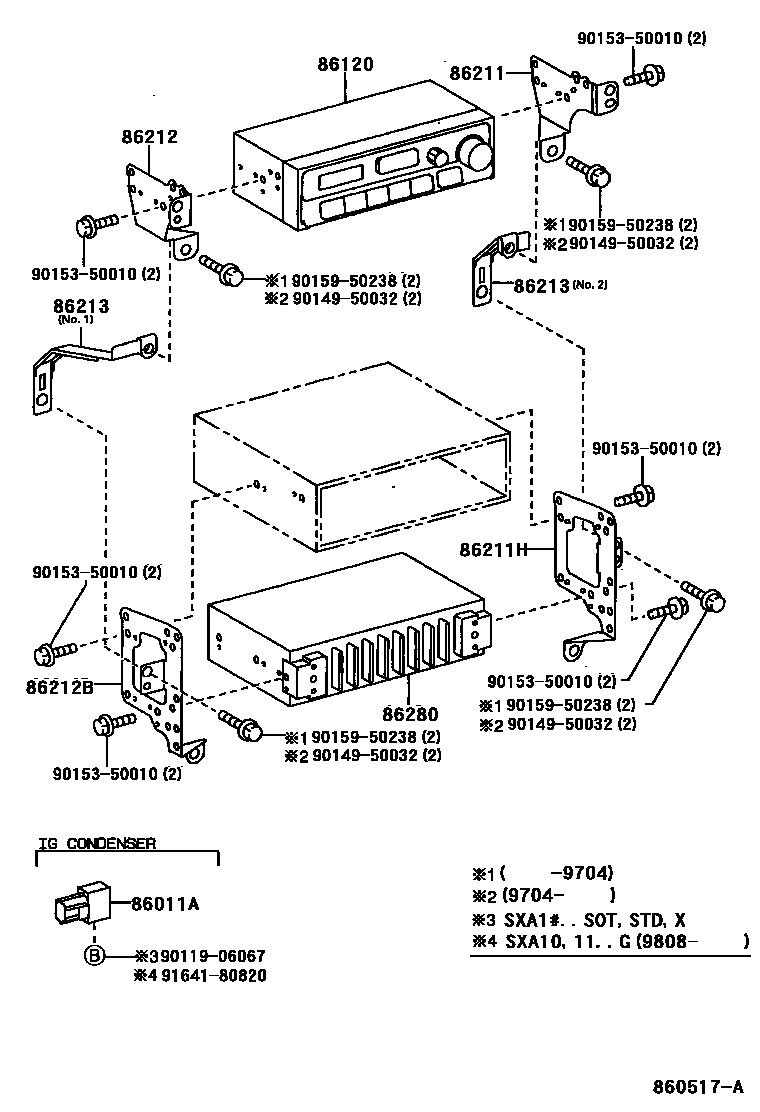

Toyota RAV4 EPC diagram 8601, 收音机、放大器和冷凝器, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011A | radio settings phase modulator | 90980-04083 · 90980-04130 · 90980-04132 |
| 86120 | Radio assembly | 86120-28240 · 86120-60200 · 86120-95J04 |
| 86211 | No. 1 radio bracket | 86211-42010 |
| 86211H | No. 2 radio bracket | 86211-42020 |
| 86212 | No. 2 radio bracket | 86212-42010 |
| 86212B | No. 1 radio bracket | 86212-42020 |
| 86213 | No. 3 radio bracket | 86213-42010 · 86213-42020 |
| 86280 | Stereo parts amplifier assembly | 86280-42010 · 86280-42020 |
