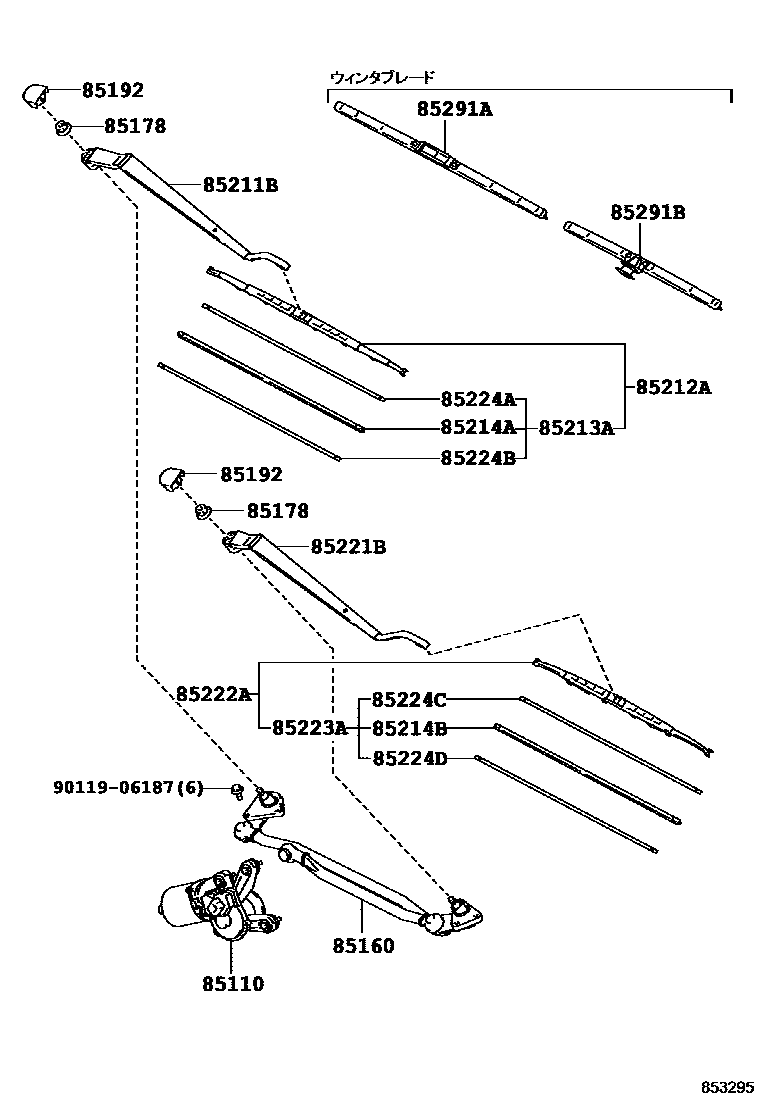

Toyota RAV4 挡风玻璃刮水器 — Figure 8501
Toyota RAV4 EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-42010 · 85110-42021 |
| 85160 | Windshield wiper connecting rod assembly | 85150-42010 · 85150-42040 |
| 85178 | Nut (for securing front wiper arm) | 90179-08113 |
| 85192 | windshield wiper arm cover | 85292-12020 |
| 85211B | Right front wiper arm | 85211-42010 · 85211-42040 |
| 85212A | Right front wiper blade | 85212-23070 · 85212-42030 · 85212-42040 |
| 85213A | Right wiper blade rubber strip | 85213-30250 |
| 85214A | Right wiper rubber strip | 85214-10080 · 85214-30250 |
| 85214B | Left wiper rubber strip | 85214-20320 · 85214-20350 |
| 85221B | Left front wiper arm | 85221-42010 · 85221-42040 |
| 85222A | Left front wiper blade | 85222-20310 · 85222-20390 |
| 85223A | Left front wiper blade rubber strip | 85223-20310 |
| 85224A | No. 1 wiper rubber strip back plate | 85224-30380 · 85224-42010 |
| 85224B | No. 2 wiper rubber strip back plate | 85224-30380 · 85224-42010 |
| 85224C | No. 3 wiper rubber strip back plate | 85224-20310 · 85224-60050 |
| 85224D | No. 4 wiper rubber strip back plate | 85224-20310 · 85224-60050 |
| 85291A | Right front wiper blade for winter use | 85291-22050 |
| 85291B | Left front wiper blade for winter use | 85291-30030 |
