Toyota RAV4 遥控门锁 — Figure 8420

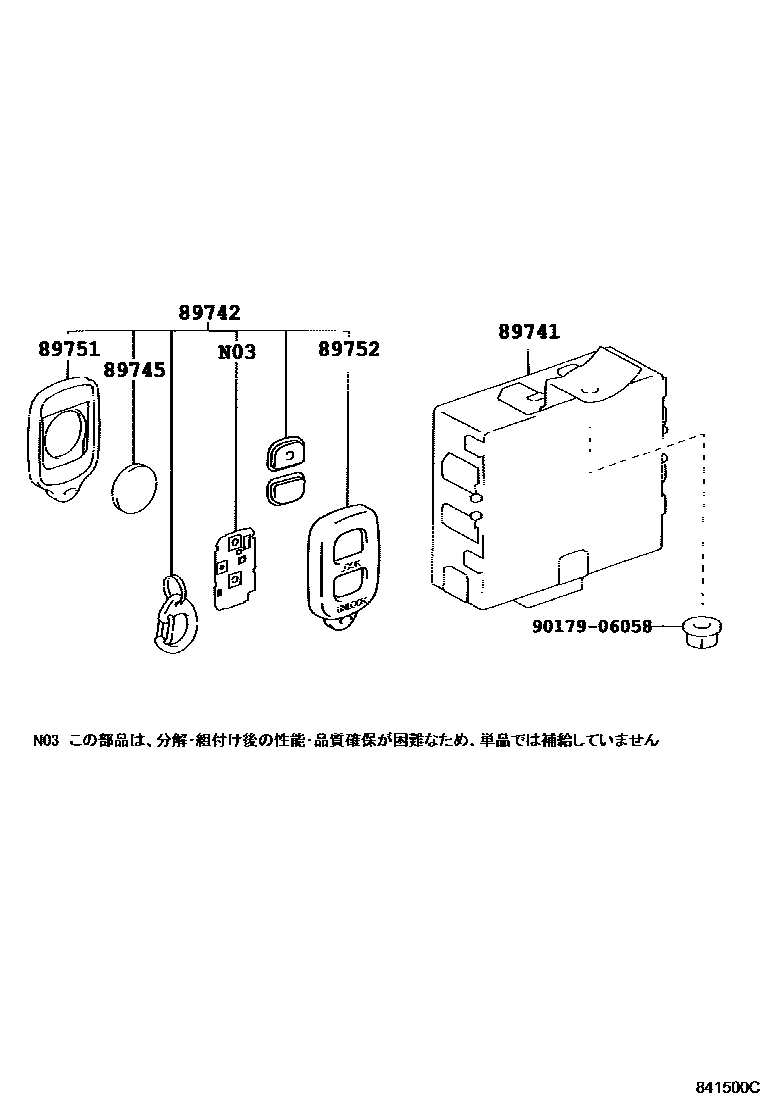

Toyota RAV4 EPC diagram 8420, 遥控门锁, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89741 | door control receiver | 89741-42010 |
| 89742 | remote key | 89742-33120 |
| 89745 | Transmitter battery | 89745-50010 |
| 89751 | Transmitter housing cover | 89751-44050 |
| 89752 | transmitter housing | 89752-44020 |
