Toyota RAV4 ABS 和 VSC — Figure 8414

Toyota RAV4 EPC diagram 8414, ABS 和 VSC, with 1 images and 11 PNC and OE references.

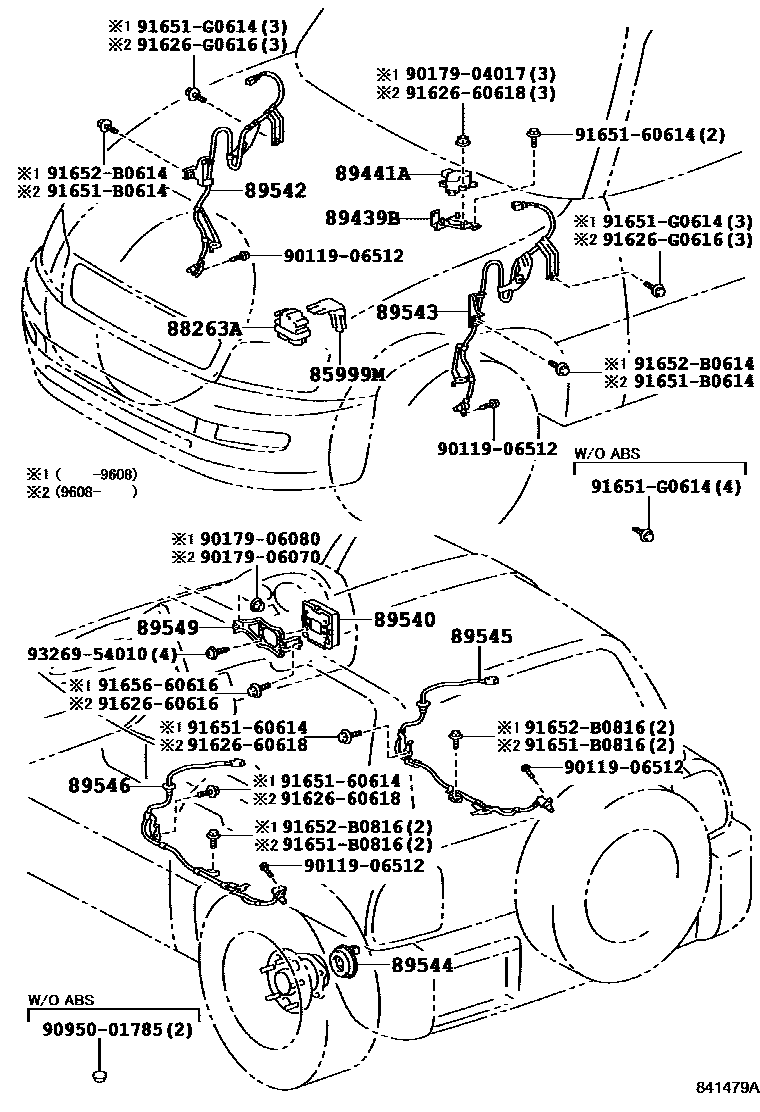

Toyota RAV4 ABS 和 VSC EPC diagram — 841479A
ABS 和 VSC — 841479A (199404 – 999999)

PNC and OE references

PNCPart nameOE numbers
85999MRelay bracket85999-42020
88263AAnti-skid control relay88263-12080
89439BSensor holder89439-42010
89441Adeceleration sensor89441-20050 · 89441-30040 · 89441-42010
89540Anti-skid control ECU assembly89540-42030 · 89540-42050 · 89540-42070 · 89541-42010 · 89541-42030 · 89541-42040
89542Right front wheel speed sensor89542-42010 · 89542-42011 · 89542-42020
89543Left front wheel speed sensor89543-42010 · 89543-42011 · 89543-42020
89544Anti-skid control sensor89544-42010
89545Right rear wheel speed sensor89516-42010 · 89516-42020 · 89545-42010 · 89545-42020
89546Left rear wheel speed sensor89516-42010 · 89516-42020 · 89546-42010 · 89546-42020
89549Anti-slip control ECU bracket89549-42010 · 89549-42020
