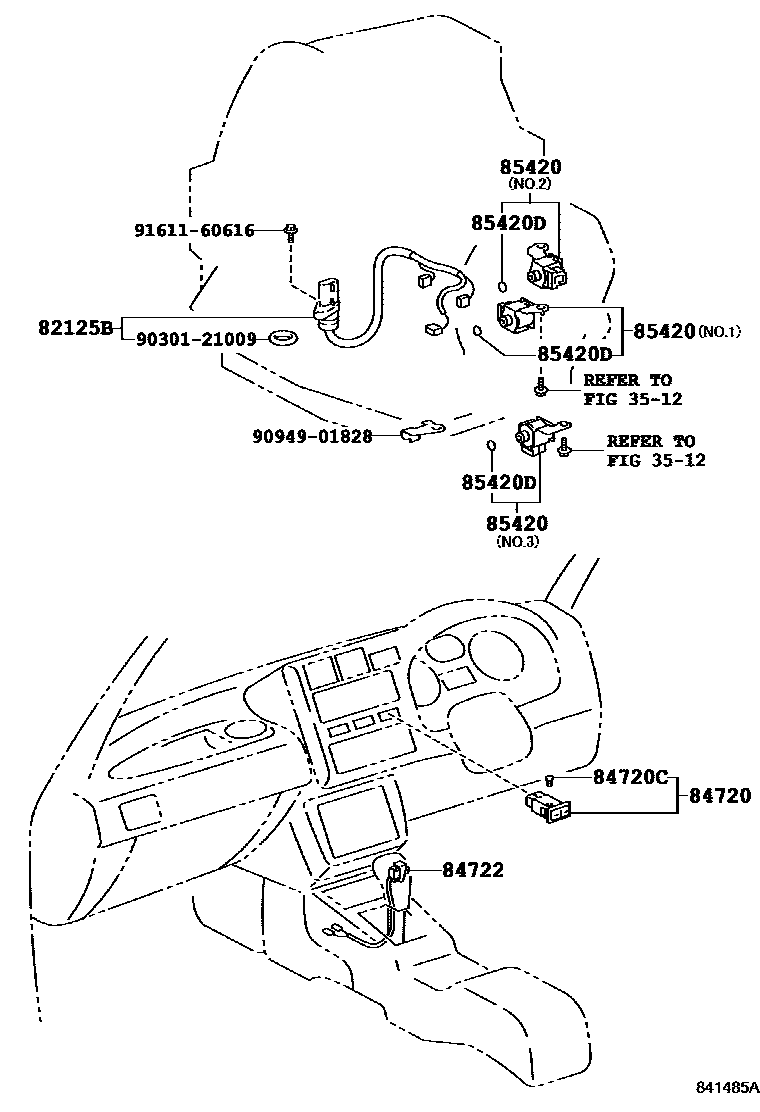

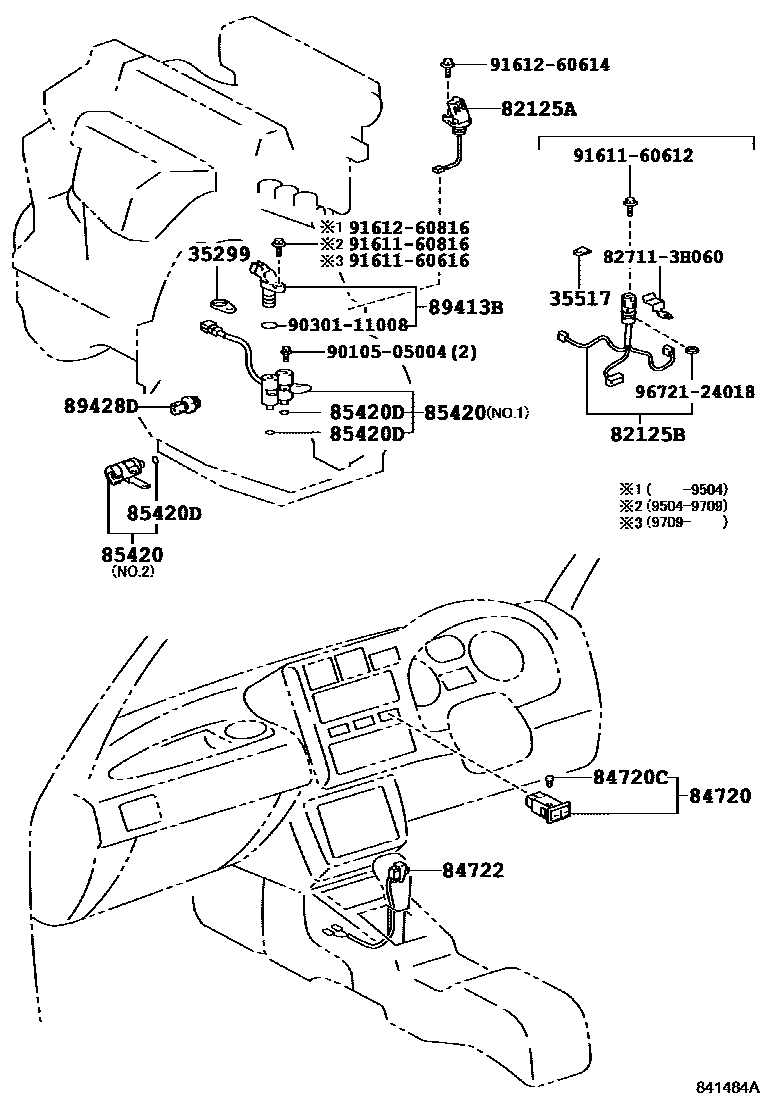

Toyota RAV4 超速档和电子控制变速器 — Figure 8410
Toyota RAV4 EPC diagram 8410, 超速档和电子控制变速器, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35299 | Transmission speed sensor spacer | 35299-32010 |
| 35517 | Transmission harness locking plate | 35517-32010 |
| 82125A | Transmission wiring harness | 82125-20210 |
| 82125B | Transmission wiring harness | 82125-12350 · 82125-42010 |
| 84720 | Mode selection switch assembly | 84720-42010 · 84720-42011 |
| 84720C | Light bulb (for mode selector switch) | 84999-10420 |
| 85420 | Transmission solenoid valve assembly | 85420-12100 · 85420-12120 · 85420-12140 · 85420-21010 · 85420-21040 · 85420-21060 · 85420-32102 · 85420-32111 · 85420-32120 |
| 85420D | O-ring (for transmission solenoid valve) | 90301-06004 |
| 89413B | Transmission speed sensor | 89413-32010 |
| 89428D | No. 2 temperature switch | 89428-12140 |
