Toyota RAV4 电子燃油喷射系统 — Figure 8404

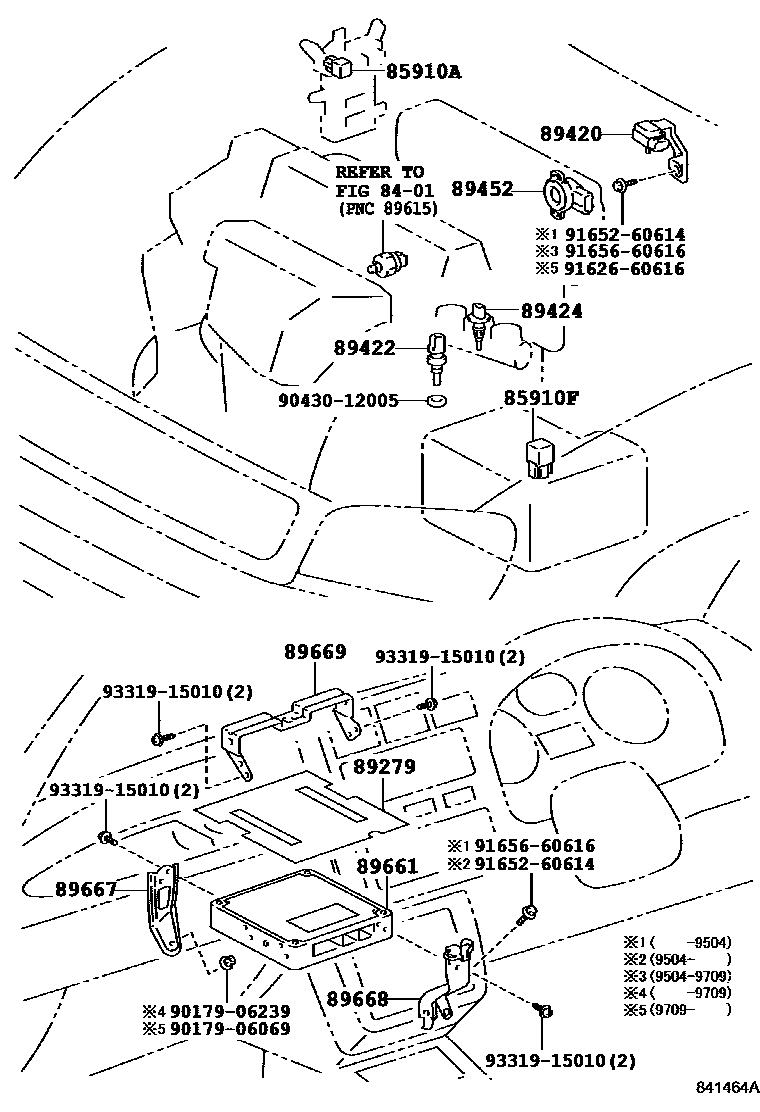

Toyota RAV4 EPC diagram 8404, 电子燃油喷射系统, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85910A | Circuit breaking relay assembly (for EFI) | 90987-02009 · 90987-02012 |
| 85910F | ECU relay (for EFI) | 90987-02009 |
| 89279 | Engine control ECU cover | 89279-42010 |
| 89420 | Vacuum sensor assembly | 89420-0W030 · 89420-0W050 · 89420-42010 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-16010 · 89422-20010 · 89422-22030 · 89422-35010 |
| 89424 | Intake air temperature sensor (for E.F.I.) | 89424-12010 |
| 89452 | Throttle position sensor (for E.F.I.) | 89452-20130 · 89452-22090 · 89452-33030 |
| 89661 | Engine control ECU | 89661-42010 · 89661-42020 · 89661-42280 · 89661-42290 · 89661-42300 · 89661-42310 · 89661-42320 · 89661-42330 · 89661-42460 · 89661-42470 |
| 89667 | Engine control ECU bracket | 89667-42010 · 89667-42020 |
| 89668 | No. 2 engine control ECU bracket | 89668-42010 · 89668-42020 |
| 89669 | No. 3 engine control ECU bracket | 89669-42010 · 89669-42020 |
