Toyota RAV4 开关和继电器和ECU — Figure 8401

Toyota RAV4 EPC diagram 8401, 开关和继电器和ECU, with 8 images and 91 PNC and OE references.

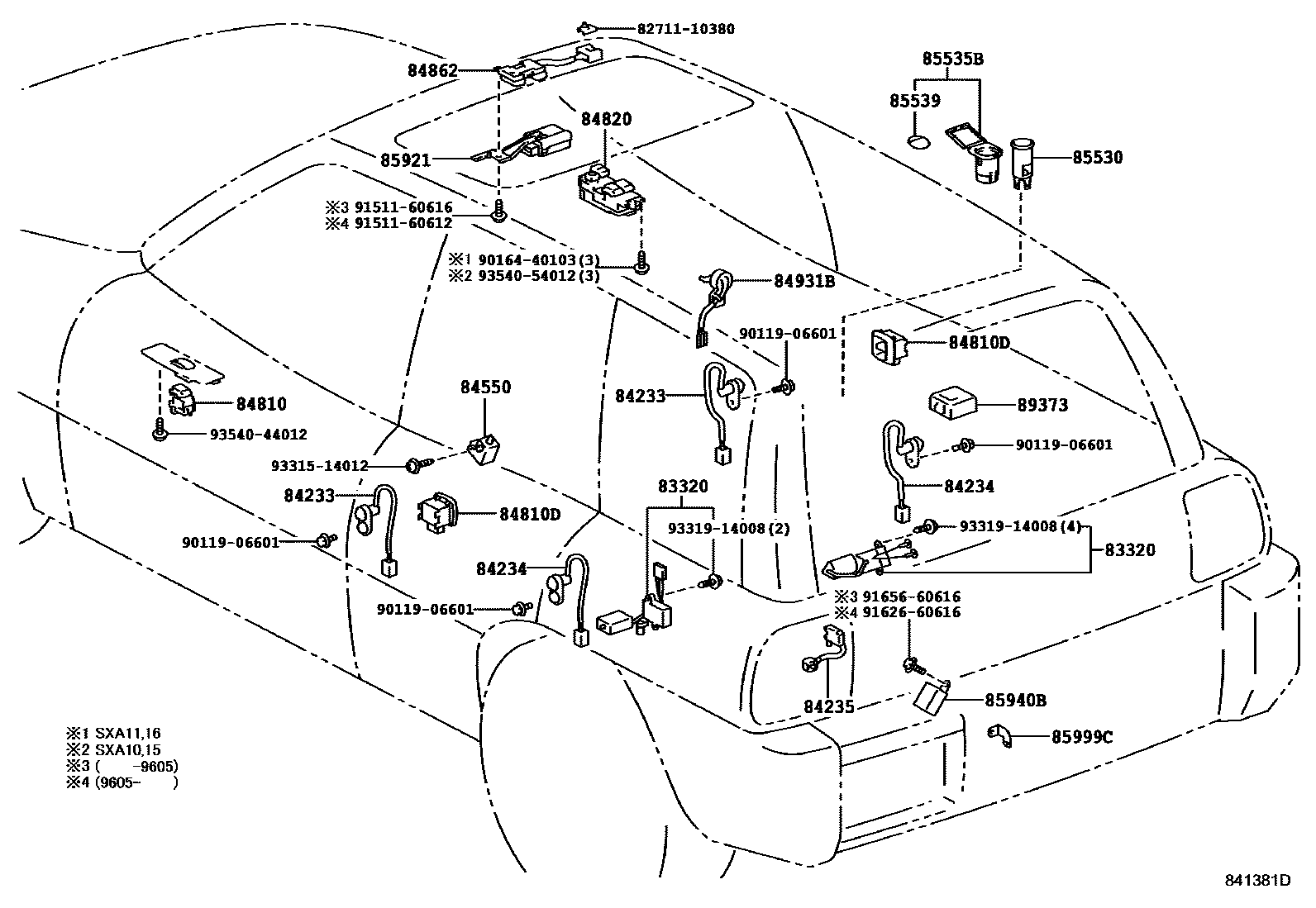

Toyota RAV4 开关和继电器和ECU EPC diagram — 841381D
开关和继电器和ECU — 841381D (199404 – 999999)

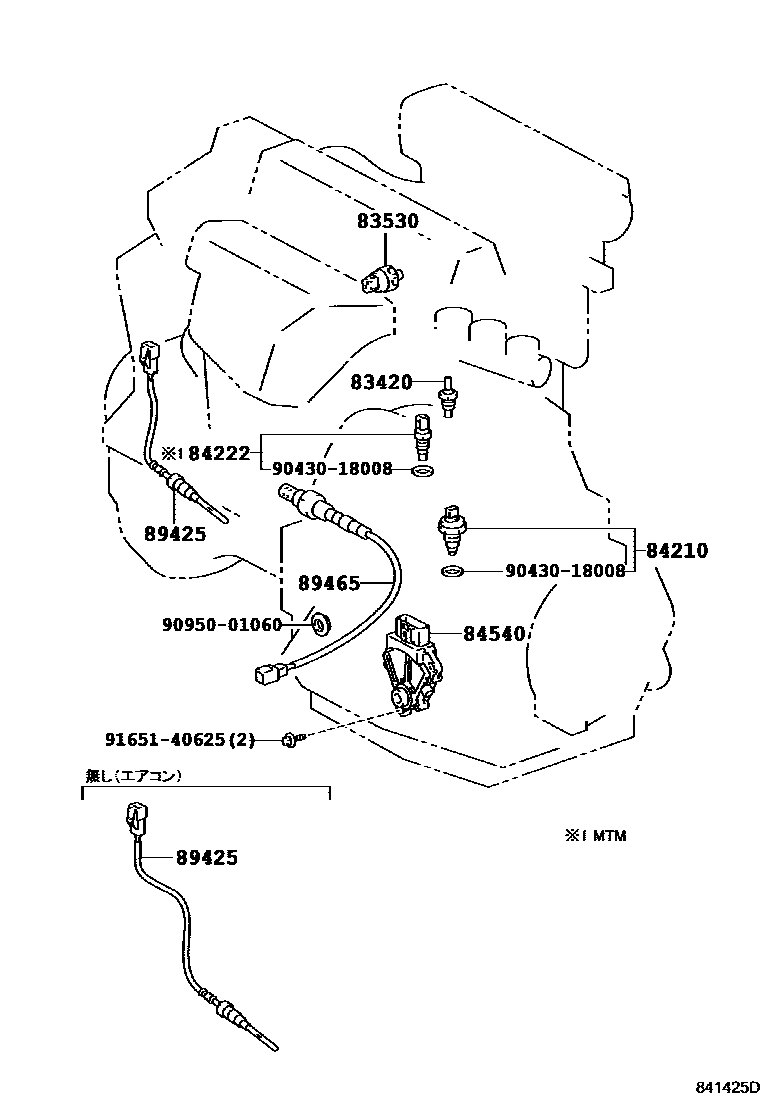

Toyota RAV4 开关和继电器和ECU EPC diagram — 841425D
开关和继电器和ECU — 841425D (199404 – 999999)

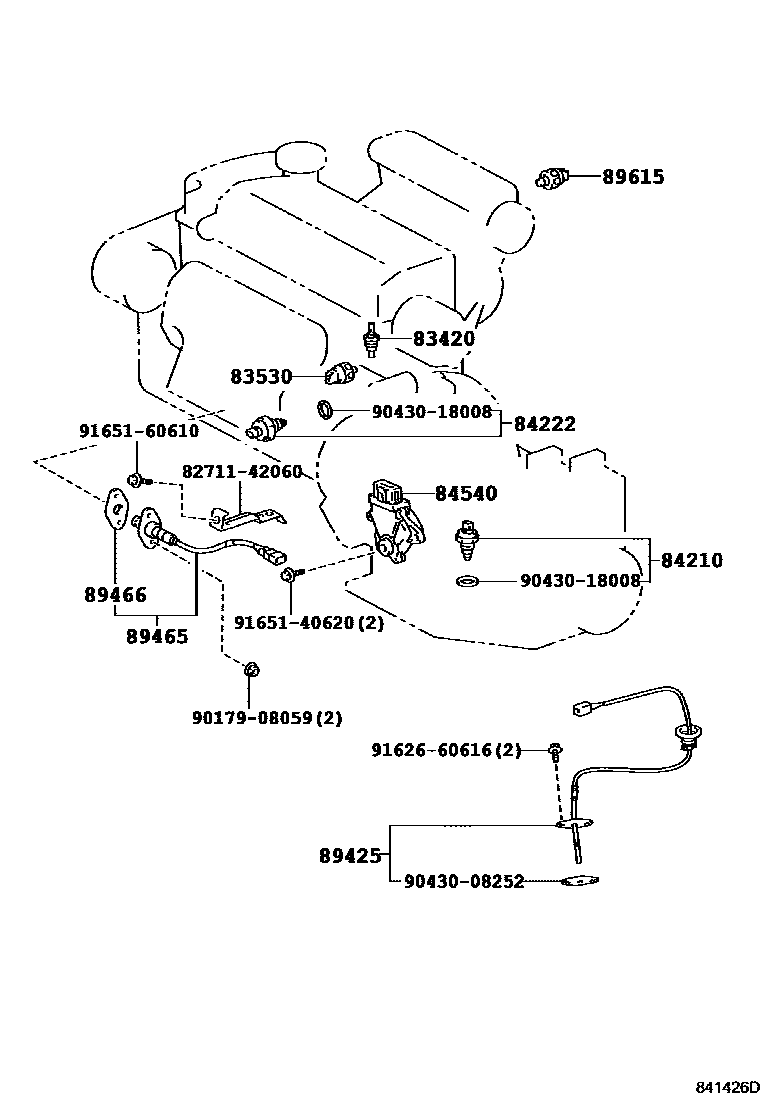

Toyota RAV4 开关和继电器和ECU EPC diagram — 841426D
开关和继电器和ECU — 841426D (199608 – 999999)

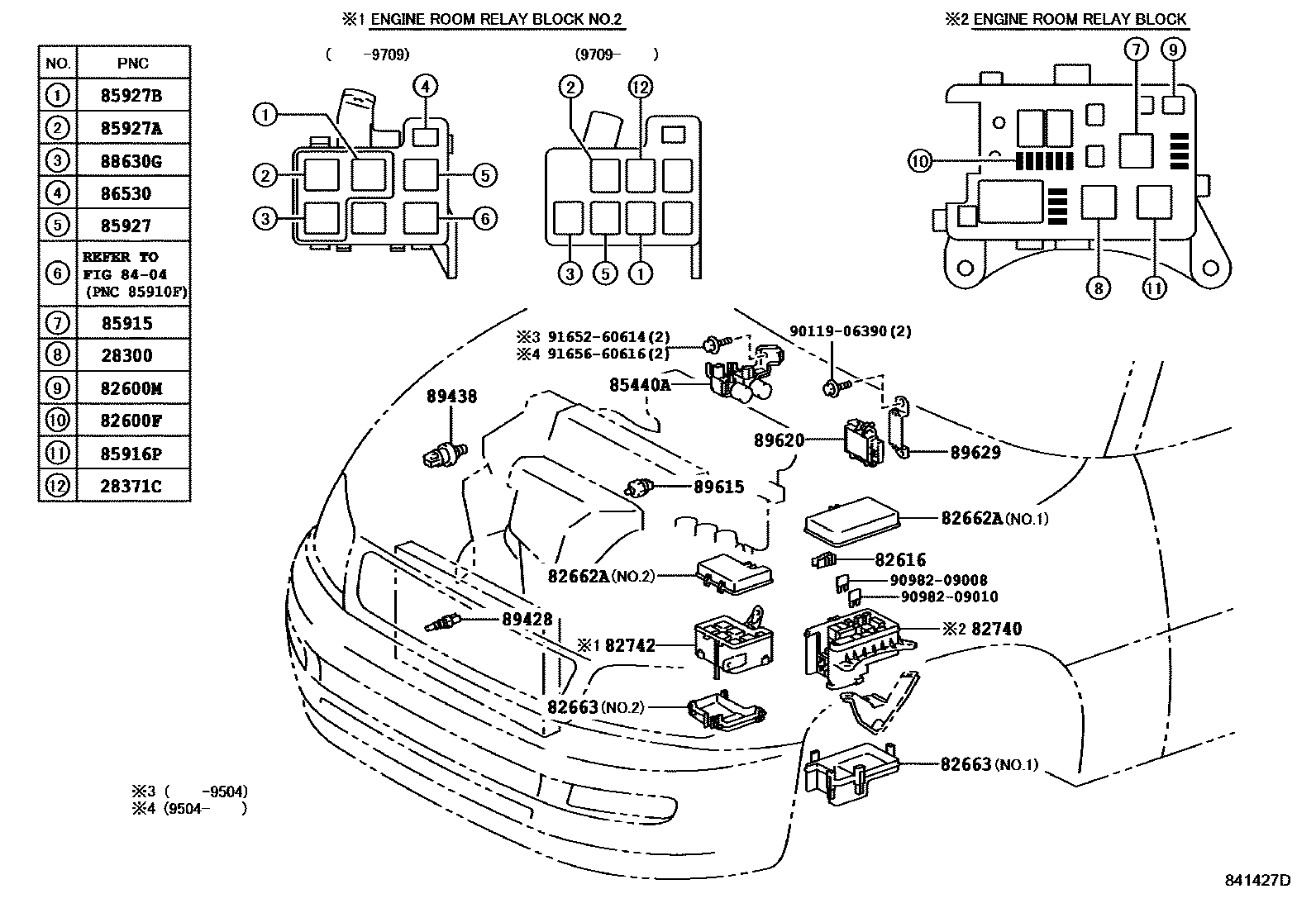

Toyota RAV4 开关和继电器和ECU EPC diagram — 841427D
开关和继电器和ECU — 841427D (199404 – 999999)

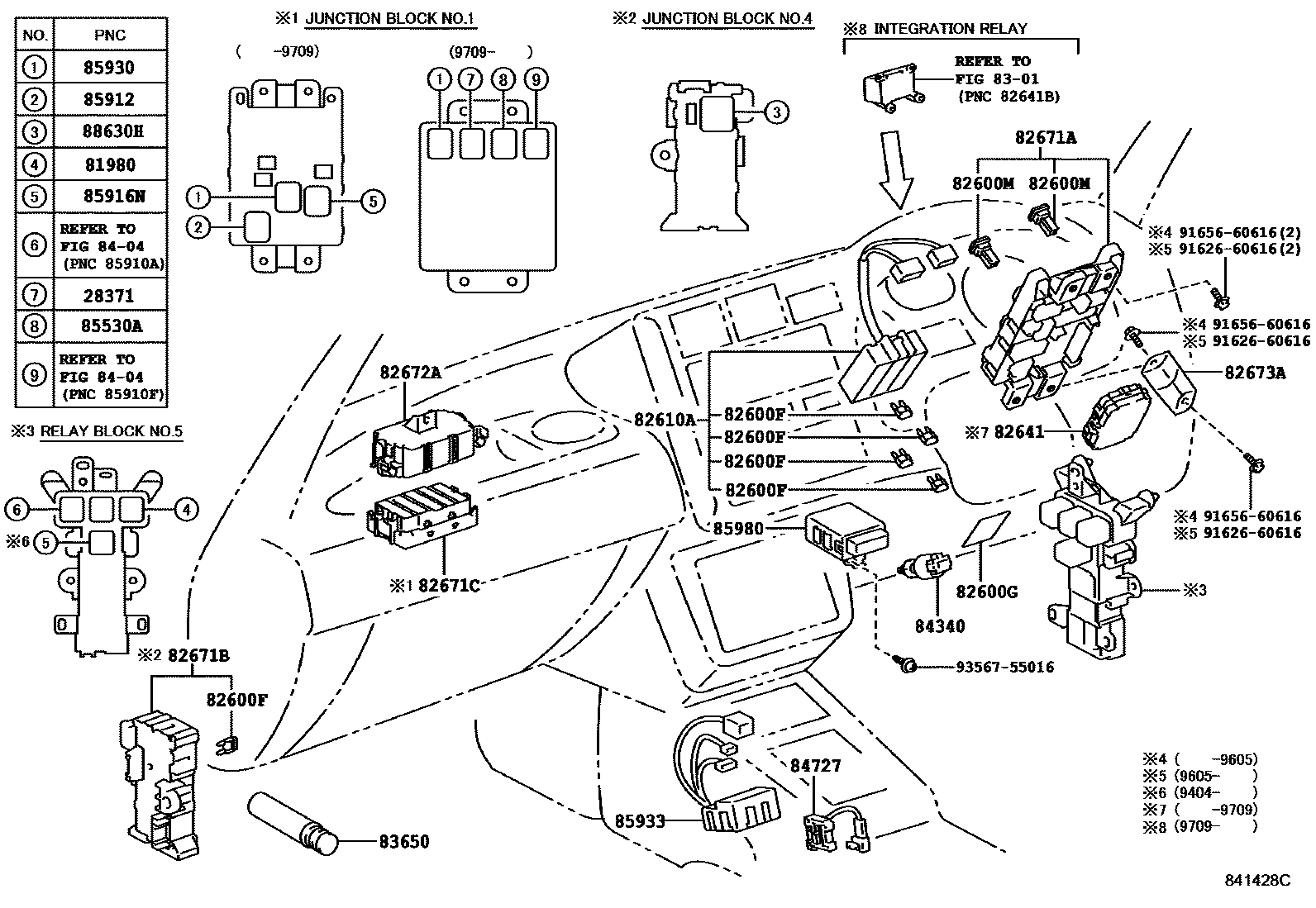

Toyota RAV4 开关和继电器和ECU EPC diagram — 841428C
开关和继电器和ECU — 841428C (199404 – 999999)

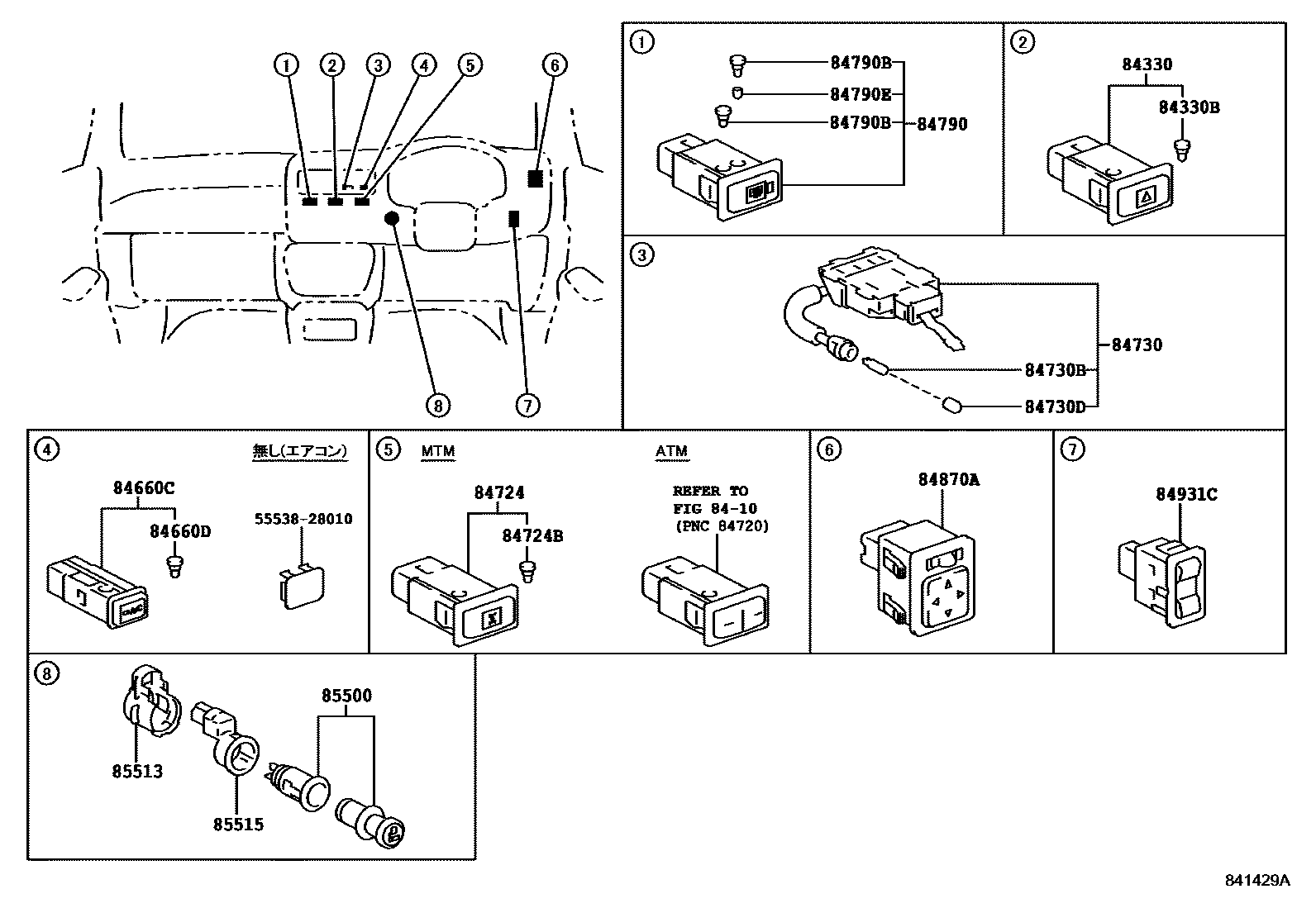

Toyota RAV4 开关和继电器和ECU EPC diagram — 841429A
开关和继电器和ECU — 841429A (199404 – 999999)

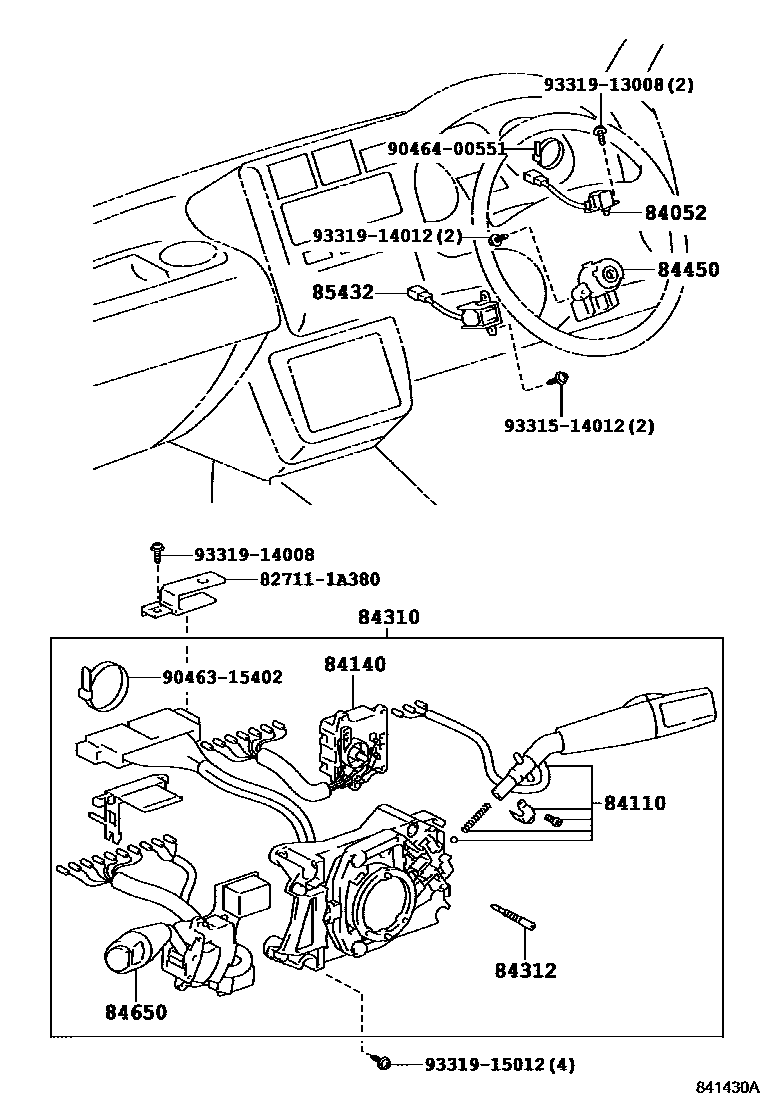

Toyota RAV4 开关和继电器和ECU EPC diagram — 841430A
开关和继电器和ECU — 841430A (199404 – 199608)

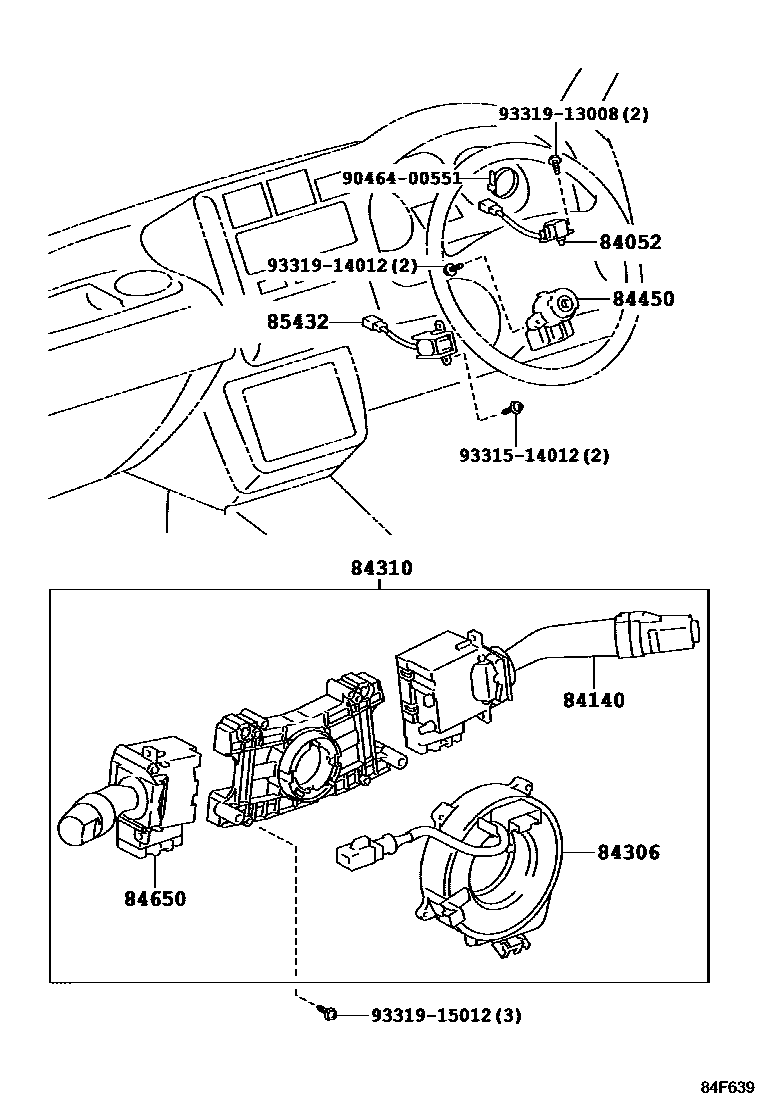

Toyota RAV4 开关和继电器和ECU EPC diagram — 84F639
开关和继电器和ECU — 84F639 (199608 – 999999)

PNC and OE references

PNCPart nameOE numbers
28300Starter relay assembly28300-10020
28371No. 1 ignition relay90987-02009
28371CNo. 2 ignition relay90987-02012
81980Turn signal flasher relay assembly81980-12070 · 81980-12110
82600FSpare fuse90982-09007 · 90982-09008 · 90982-09009 · 90982-09010 · 90982-09011
82600GWarning nameplate (for fuses)82683-42010 · 82683-42040 · 82683-42050
82600Mmedium current fuse90982-08282 · 90982-10001 · 90982-10002
82610AFuse box assembly82610-42010 · 82610-42040
82616fuse puller82616-20010
82641Integrated relay No. 182641-20190 · 82641-32052
82662ANo. 1 relay box upper cover82662-42020 · 82662-42030 · 82662-42031 · 82662-42090 · 82662-42091
82663Relay box lower cover82663-42010 · 82663-42020 · 82663-42030 · 82663-42040
82671Ajunction box82732-42020 · 82732-42030 · 82732-42050
82671Bjunction box82733-42010
82671Cjunction box82671-12150
82672AJunction box cover82672-42010 · 82672-42040
82673AJunction box bracket82673-42010 · 82673-42030
82740Engine room relay box assembly82740-42010 · 82740-42021 · 82740-42022
82742Engine room No. 2 relay box82742-42010 · 82742-42020
83320Fuel gauge sensor assembly83320-49045 · 83320-49065 · 83320-49135 · 83320-49155
83420Water temperature sensor assembly83420-16040 · 83420-20040 · 83420-AA010
83530Oil pressure switch assembly (for engine)83530-28020 · 83530-30090 · 83530-60020
83650fuse90986-01005
84052Unlock warning switch assembly84052-12060 · 84052-20050
84110No. 1 light control switch assembly84112-49055
84140Headlight dimmer switch assembly84140-12300 · 84140-26170
84210Reversing light switch assembly84210-12040
84222No. 1 transfer case indicator switch84222-12010
84233Door control light switch assembly (for front door)84231-32040
84234Door control light switch assembly (for rear door)84231-32040
84235Door control light switch assembly (for back door)84231-42010
84306Spiral cable sub-assembly84306-12070 · 84306-35010 · 84306-35011
84310Turn signal switch assembly84310-42030 · 84310-42040 · 84310-42070 · 84310-42090 · 84310-42110 · 84310-42120 · 84310-42150 · 84310-42160
84312Speaker contact piece84312-12040
84330Hazard warning signal switch assembly84332-42010 · 84332-43010
84330BHazard warning signal switch light bulb84999-10320 · 84999-10860
84340brake light switch assembly84340-32090
84450Ignition or starter switch assembly84450-41010
84540Neutral start switch assembly84540-12200 · 84540-12210 · 84540-20200
84550Parking brake switch assembly84550-16060
84650Windshield wiper switch assembly84652-26500 · 84652-35530 · 84652-42030 · 84652-42040 · 84652-42060 · 84652-42070 · 84652-60790
84660CCooler switch84660-42010 · 84660-42011
84660DLight bulb (for cooler switch)88607-16010
84724four wheel drive control switch84724-42010
84724BFour wheel drive control switch light bulb84999-10320
84727Shift lock control switch84727-12030 · 84727-12070
84730Heater blower switch assembly84732-42010 · 84732-89115
84730Bheater blower switch light bulb90981-11014
84730DHeater blower switch bulb cover84998-10050
84790Rear window defogger switch assembly84790-42010 · 84790-42020
84790BBulb (for rear window defogger switch)84999-10310 · 84999-10320
84790EBulb cover (for rear window defogger switch)84998-10630
84810Electric window lift switch assembly84810-12080
84820Electric window lift main switch assembly84820-10040 · 84820-10050 · 84820-16040 · 84820-42010 · 84820-42040
84870AExterior rearview mirror switch assembly84870-16020 · 84870-16040 · 84870-20050
84931Bdoor control switch84931-10070 · 84931-10071 · 84931-10080 · 84931-10081
84931CBack door control switch84930-42010
85432Key interlock solenoid valve85432-20050 · 85432-42011 · 85432-42012
85440AFour-wheel drive control solenoid valve assembly85440-42010 · 85440-42011 · 85440-42020 · 85440-42021
85500Cigarette lighter assembly85500-28050
85513Cigarette lighter cover85513-28010
85515Cigarette lighter frame bracket85515-30030
85530No. 1 power socket assembly85530-33020
85530Apower outlet relay90987-02012
85535BNo. 1 power outlet cover85535-33010
85539Power socket attention labels85539-60010
85912defogger relay90987-02009
85915main relay85925-17010 · 90987-04002
85916NTail light relay90987-02009
85916Pheadlight relay90987-02006
85921Sliding sunroof control relay85921-12070 · 85921-42010
85927cooling fan relay90987-03003
85927ACooling fan relay No. 290987-02012 · 90987-04003 · 90987-04004
85927BCooling fan relay No. 390987-02009 · 90987-02012 · 90987-04004
85930Electric window relay assembly90987-02009 · 90987-02012
85933Shift lock control ECU85933-12090 · 85933-12091 · 85933-12121
85940BRear wiper relay assembly85940-42010
85980Door control relay assembly85980-42020
85999CNo. 3 relay bracket85999-42030
86530Speaker relay assembly86530-20070
88630GCooler relay assembly90987-02006 · 90987-02009 · 90987-02012
88630HCooler relay assembly90987-04002
89373Malfunction indicator light sensor89373-20210
89425Exhaust gas temperature sensor89425-42010 · 89425-49065
89428No. 2 temperature detection switch89428-33010
89438Power steering oil pressure switch89438-33010
89465oxygen sensor89465-20270 · 89465-42050 · 89465-49055
89466Oxygen sensor pad89466-20020
89615knock control sensor89615-20030 · 89615-20060 · 89615-32030 · 89615-32040 · 89615-33020
89620Ignition assembly89621-16020
89629Ignition bracket assembly89629-30160 · 89629-42040
