Toyota RAV4 仪表 — Figure 8301
Toyota RAV4 EPC diagram 8301, 仪表, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82641B | Integrated relay (for instrumentation) | 83888-42360 |

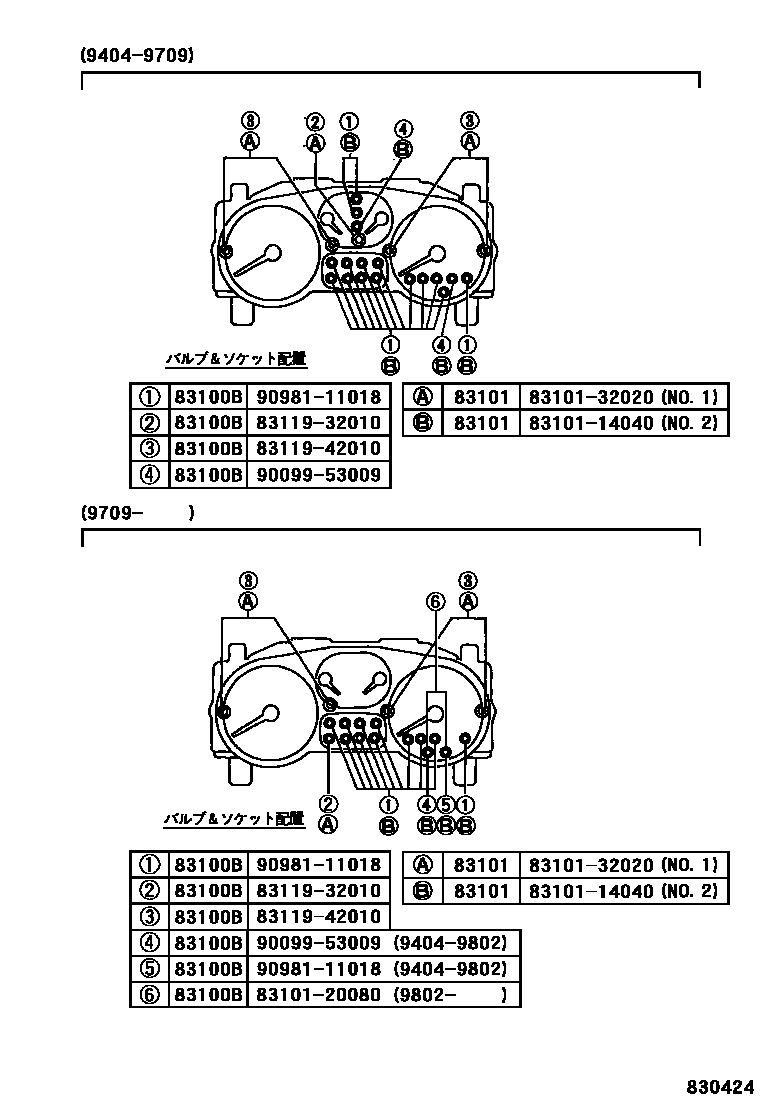

| 83100B | Combination instrument bulb No. 1 | 83101-20080 · 83119-32010 · 83119-42010 · 90099-53009 · 90981-11018 |
| 83101 | Combined instrument lamp holder sub-assembly | 83101-14040 · 83101-32020 |

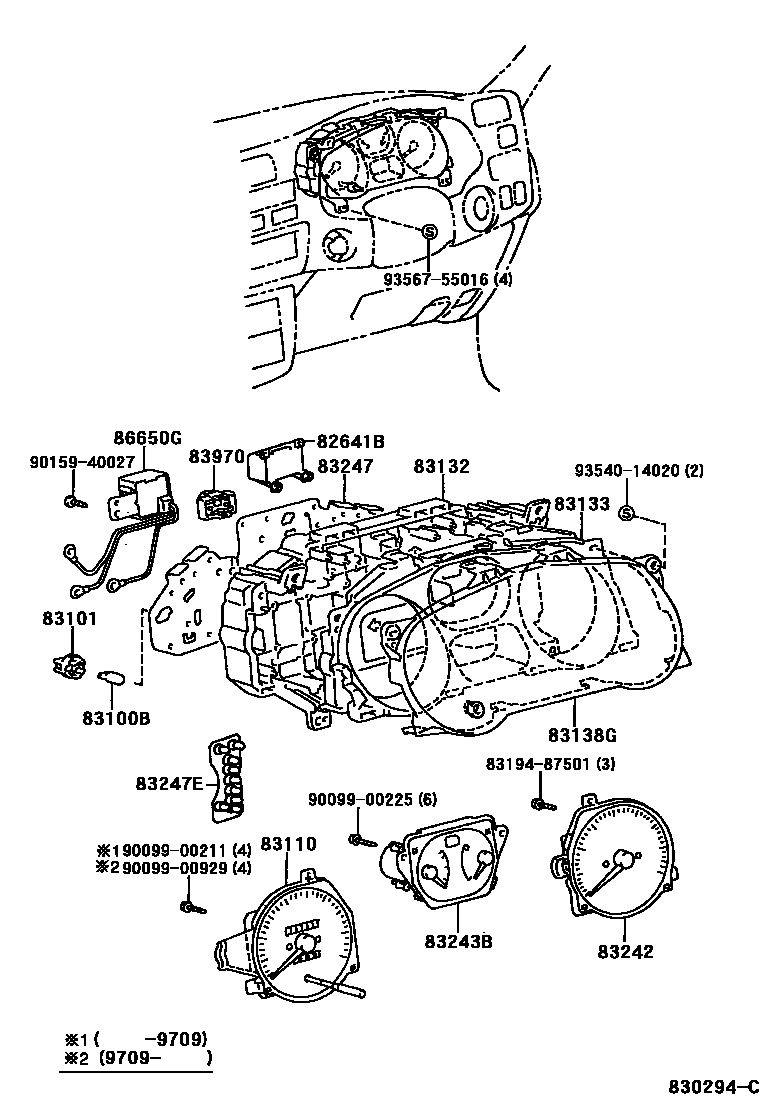

| 83110 | Speedometer assembly | 83110-42010 · 83220-42030 |
| 83132 | Instrument cluster housing | 83132-42010 · 83841-42080 · 83841-42090 · 83841-42360 |
| 83133 | Combined instrument panel No. 1 | 83133-42010 |
| 83138G | Instrument cluster glass | 83138-42010 · 83852-42360 |

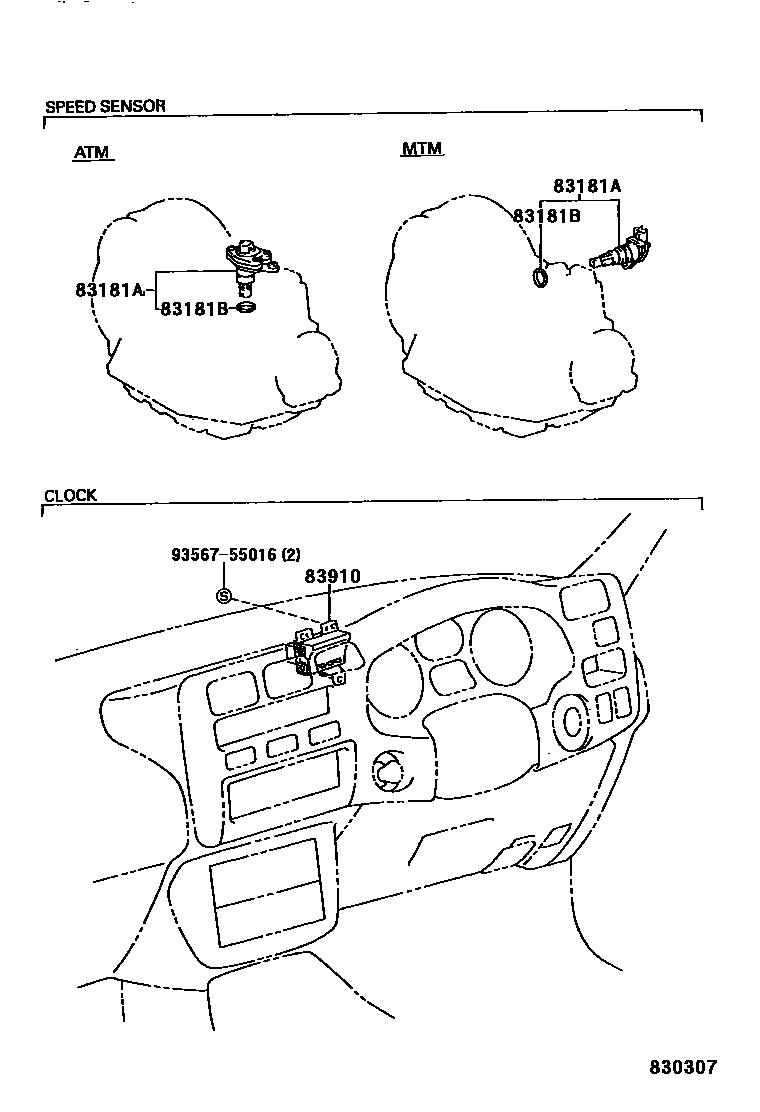

| 83181A | speedometer sensor | 83181-12020 · 83181-12050 · 83181-12060 · 83181-12070 |
| 83181B | O-ring (for speedometer sensor) | 96711-24018 · 96711-24030 |
| 83242 | Engine tachometer assembly | 83242-42010 · 83881-42220 · 83881-42330 · 83881-42360 · 83881-42700 |
| 83243B | Combination table assembly | 83243-42010 · 83243-42030 · 83882-42350 · 83882-42360 |
| 83247 | Instrument circuit board | 83247-42010 · 83861-42080 · 83861-42090 · 83861-42350 · 83861-42360 · 83861-42380 |
| 83247E | No. 4 instrument circuit board | 83866-42350 |
| 83910 | clock assembly | 83910-42010 |
| 83970 | Reversing warning buzzer assembly | 83970-20010 |
| 86650G | Buzzer assembly | 86650-12030 |
