Toyota RAV4 高位刹车灯 — Figure 8117

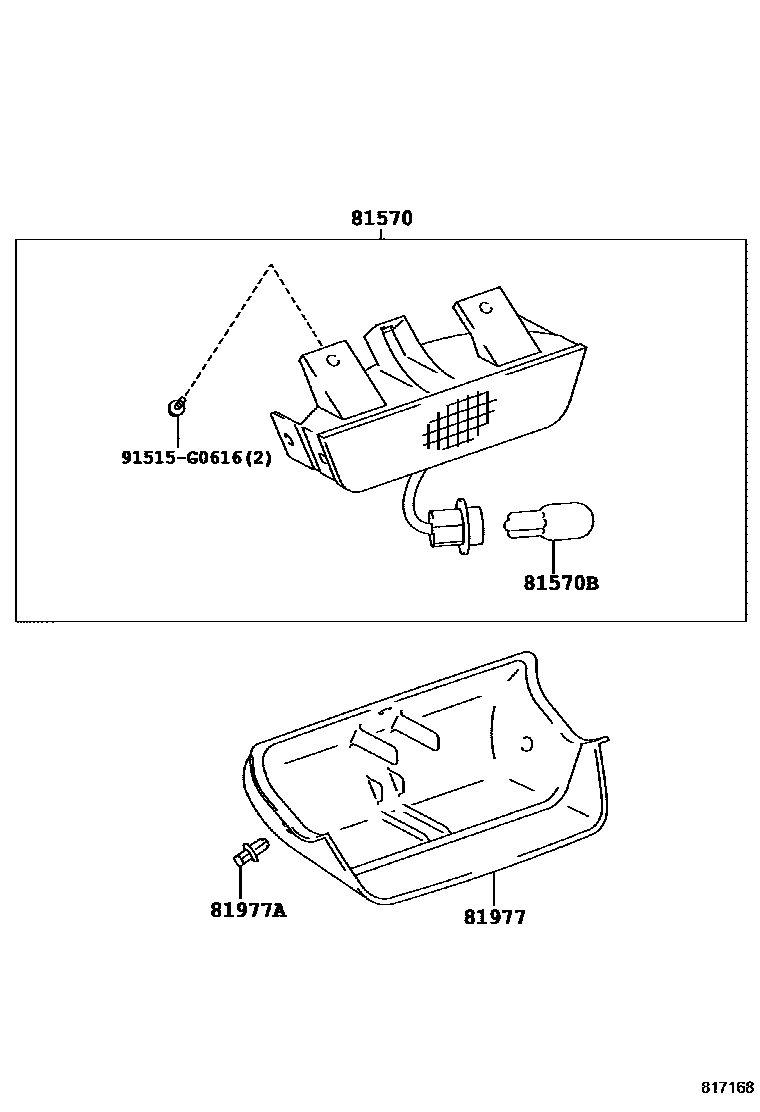

Toyota RAV4 EPC diagram 8117, 高位刹车灯, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81570 | Central brake light assembly | 81570-42010 · 81570-42040 |
| 81570B | Bulb (for center brake light) | 90981-11042 · 90981-11055 |
| 81571 | central brake light cover | 81571-42030 |
| 81574 | Central brake light cover | 81574-42030 |
| 81575 | No. 2 central brake light cover | 81575-42030 |
| 81576 | Central brake light holder and wiring harness | 81576-42030 |
| 81579 | Central brake light bracket | 81579-42040 |
