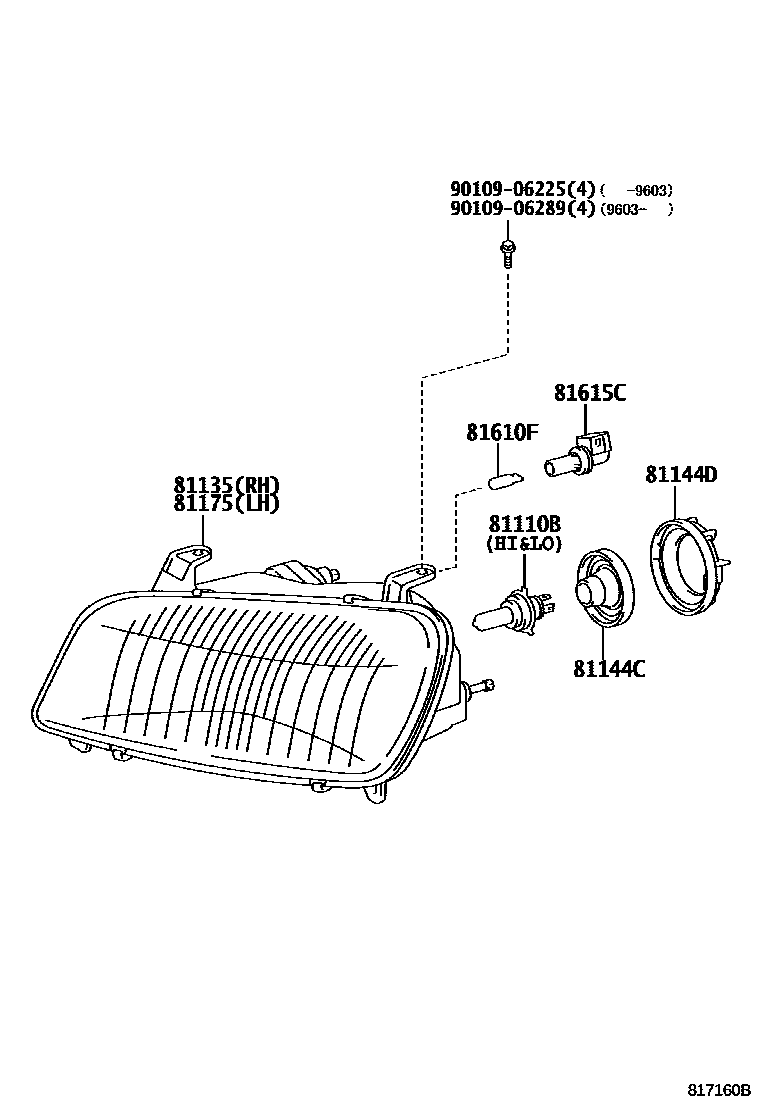

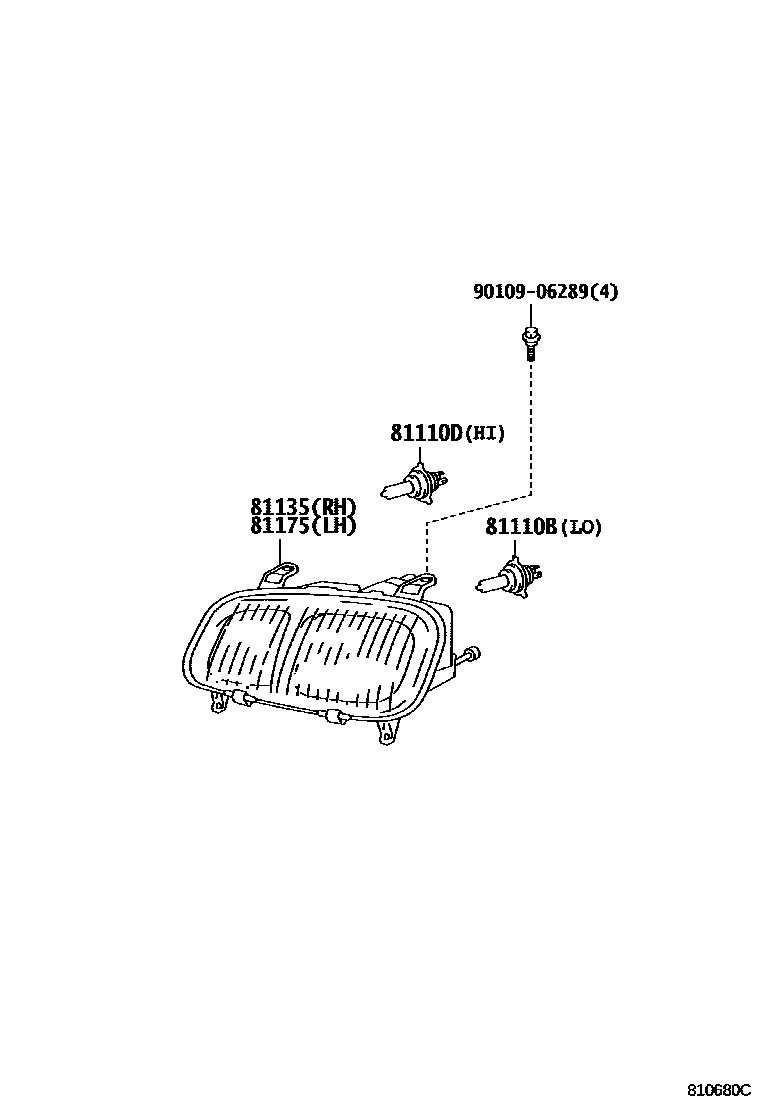

Toyota RAV4 Headlamp — Figure 8101
Toyota RAV4 EPC diagram 8101, Headlamp, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110B | Bulb (for headlight No. 1) | 90080-81040 · 90981-22003 |
| 81110D | Bulb (for headlight No. 2) | 90080-81041 |
| 81135 | Right headlight assembly | 81105-42010 · 81105-42080 |
| 81144C | Headlight lamp holder cover | 81139-1E310 |
| 81144D | headlight lock cover | 81112-1E310 |
| 81175 | Left headlight assembly | 81106-42010 · 81106-42080 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615C | Width light lamp holder and wiring harness | 90075-99044 |
