Toyota RAV4 accelerator pedal connecting rod — Figure 7851

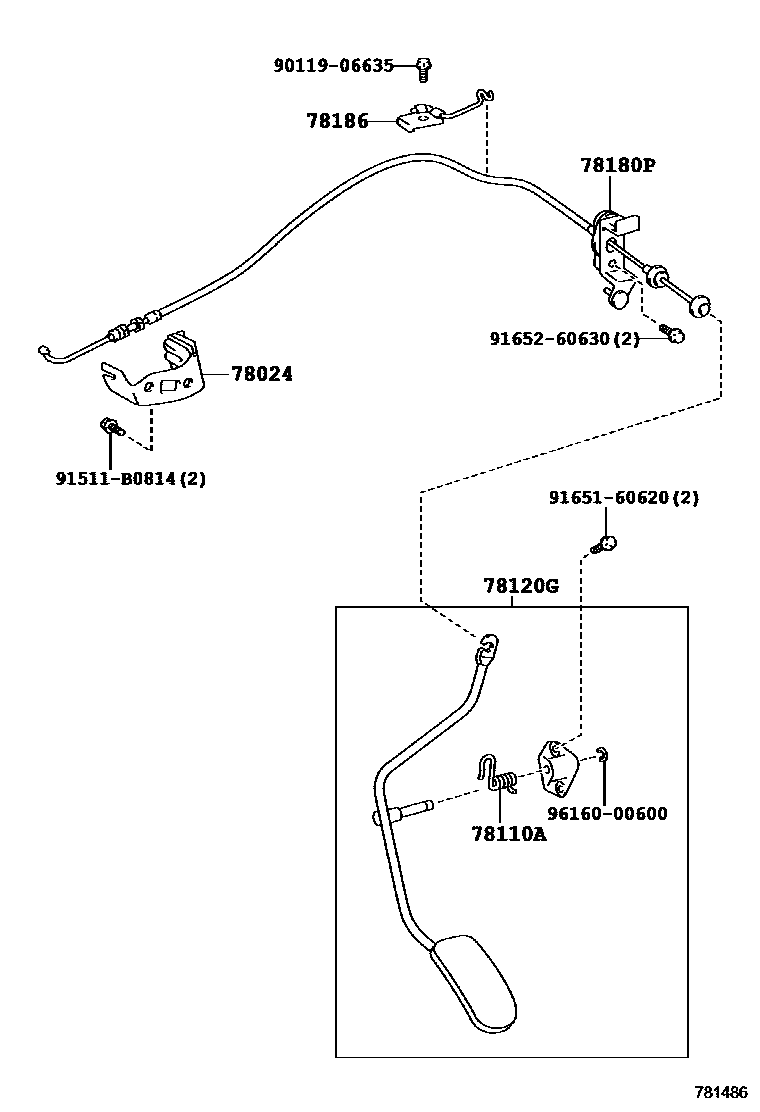

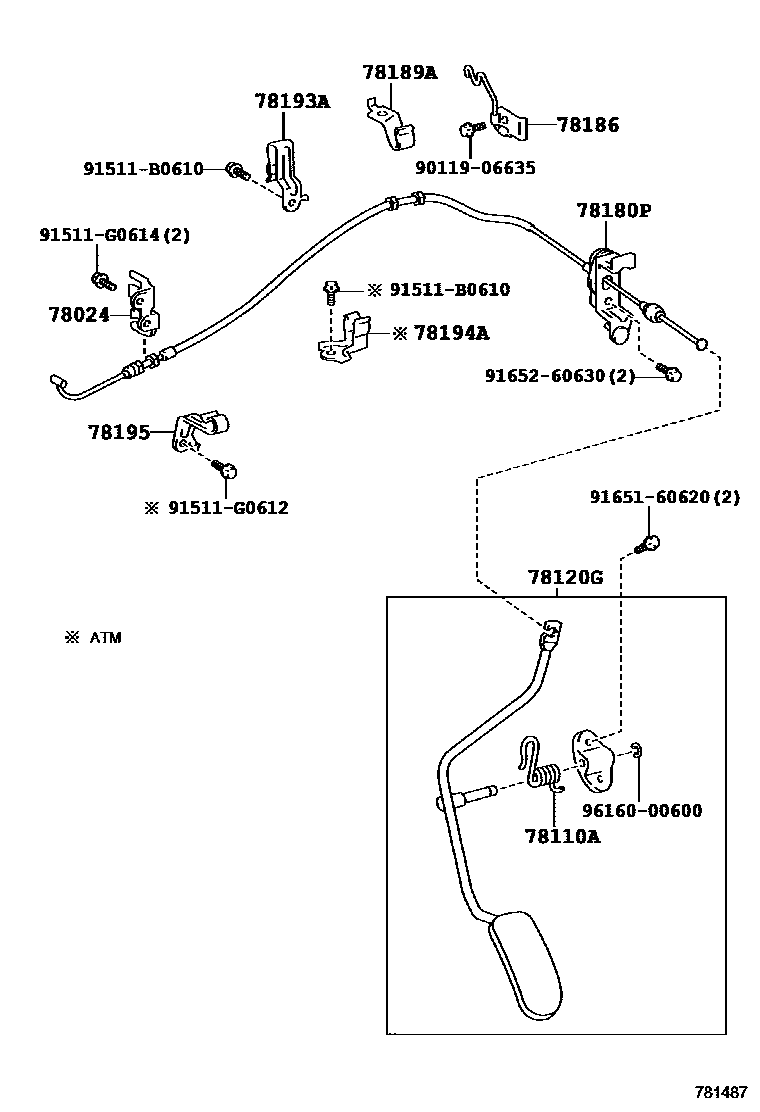

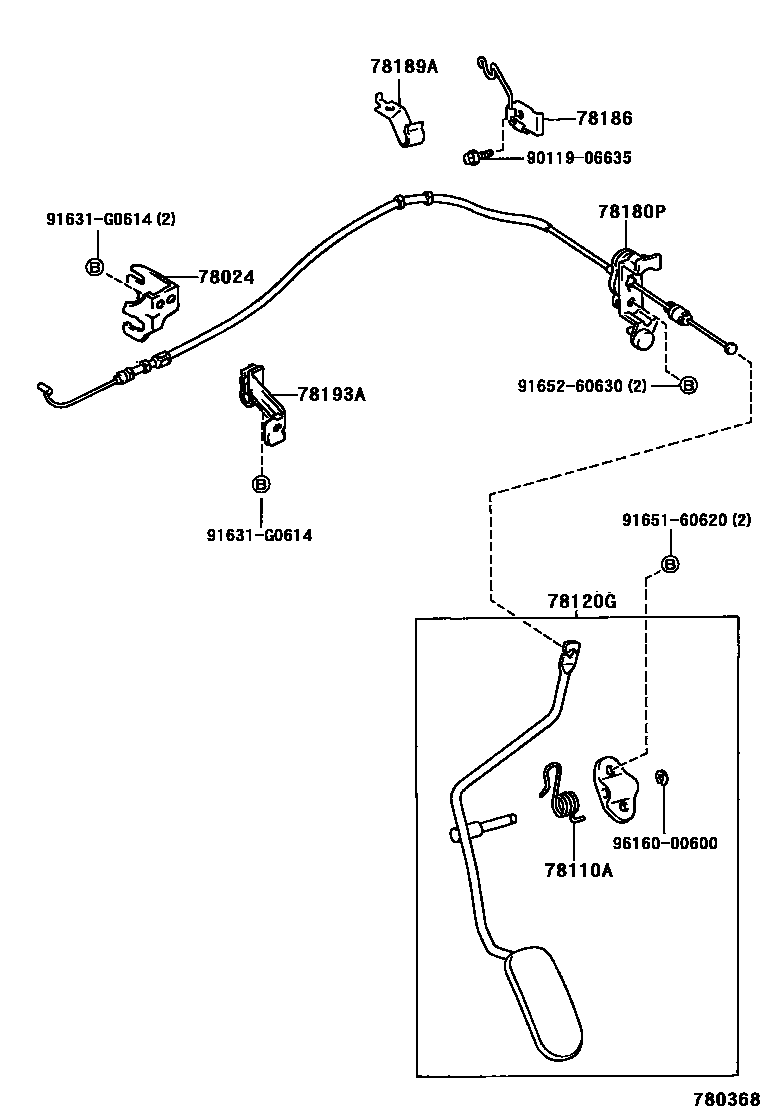

Toyota RAV4 EPC diagram 7851, accelerator pedal connecting rod, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78024 | Accelerator pedal control cable bracket sub-assembly | 78024-20140 · 78024-44020 · 78024-88460 · 78024-88561 |
| 78110A | Spring (for accelerator pedal lever) | 90508-26075 · 90959-03049 |
| 78120G | Accelerator pedal lever assembly | 78120-42010 · 78120-42040 |
| 78180P | Accelerator pedal control cable assembly | 78180-42010 · 78180-42040 · 78180-42050 · 78180-42080 |
| 78186 | No. 1 accelerator pedal control cable bracket | 78186-42010 · 78186-42020 |
| 78189A | No. 2 accelerator pedal control cable bracket | 78189-42010 |
| 78193A | No. 3 accelerator pedal control cable bracket | 78193-88461 · 78193-88561 |
| 78194A | No. 4 accelerator pedal control cable bracket | 78194-88460 |
| 78195 | Accelerator pedal connecting rod bracket | 78195-88460 |
