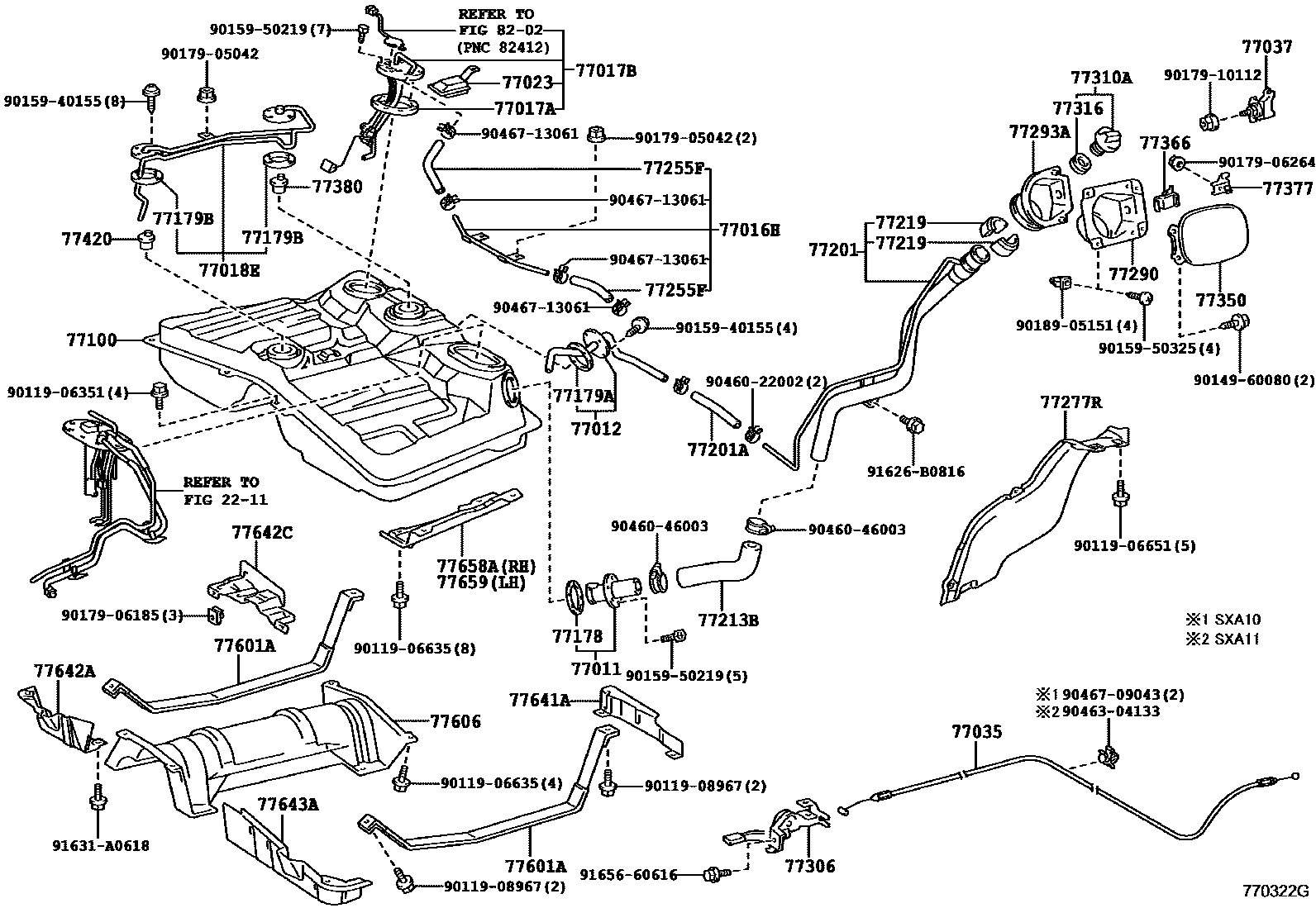

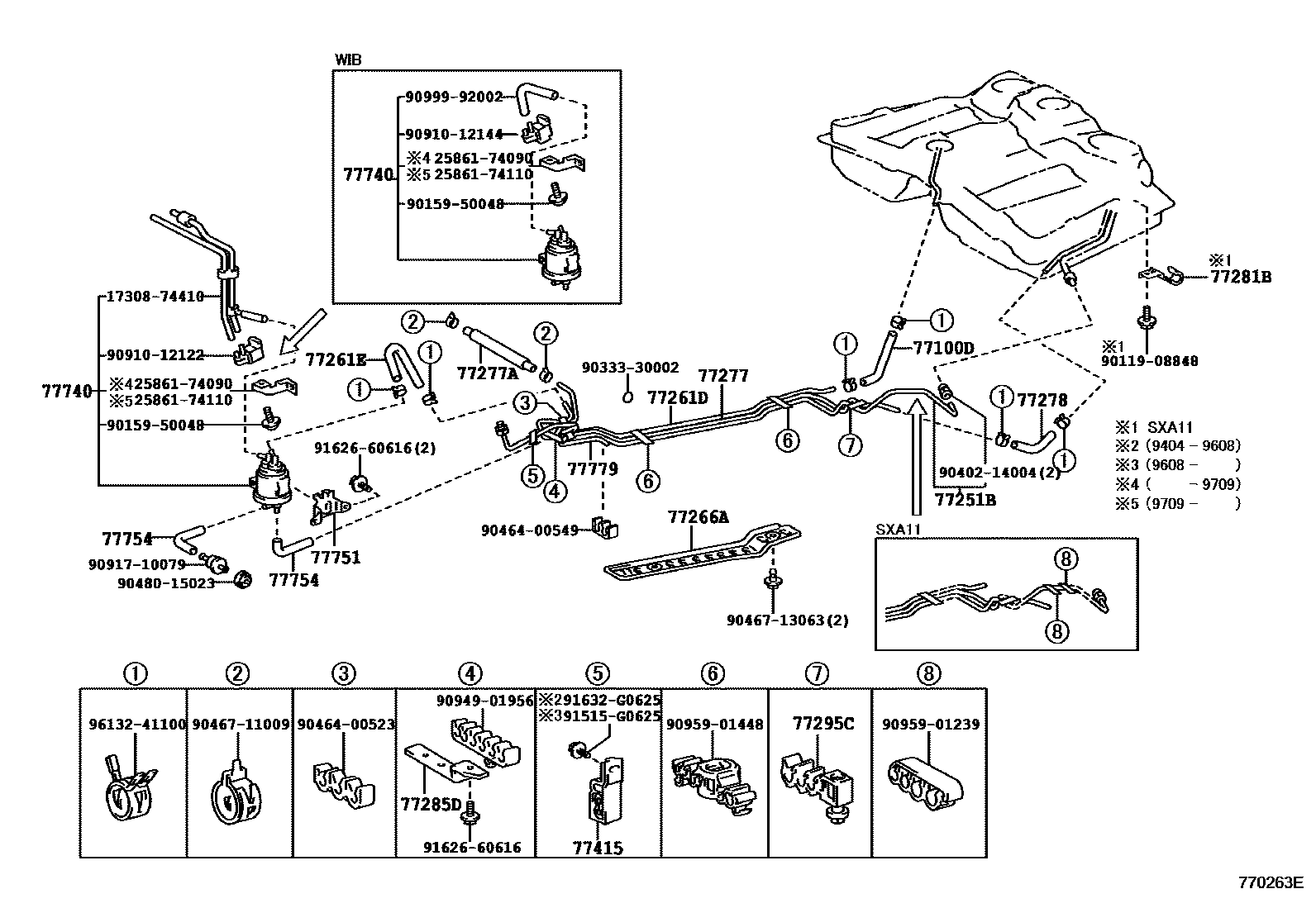

Toyota RAV4 燃油箱和燃油管 — Figure 7751
Toyota RAV4 EPC diagram 7751, 燃油箱和燃油管, with 2 images and 51 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 77011 | Filling pipe sub-assembly under fuel tank | 77011-10060 |
| 77012 | Fuel tank breather pipe sub-assembly | 77012-42020 |
| 77016H | Fuel return ventilation pipe sub-assembly | 77016-42020 |
| 77017A | fuel tank vent pipe gasket | 77169-14010 |
| 77017B | Fuel tank vent pipe sub-assembly | 77017-42020 |
| 77018E | Fuel tank evaporation vent pipe sub-assembly | 77018-42020 · 77018-42040 |
| 77023 | Fuel suction pipe filter sub-assembly | 77023-32030 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-42030 · 77035-42070 |
| 77037 | Fuel filler cap lock sub-assembly | 77037-14020 |
| 77100 | fuel tank assembly | 77001-42041 · 77001-42900 · 77001-42902 |
| 77178 | Fuel tank filler pipe lower gasket | 77178-20030 |
| 77179A | fuel tank breather gasket | 77179-20040 |
| 77179B | Fuel tank evaporative vent pipe gasket | 77179-26010 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-42020 · 77201-42060 · 77201-42061 |
| 77201A | No. 1 fuel hose (for fuel tank inlet pipe) | 95311-13018 |
| 77213B | Fuel tank to filler pipe hose | 77213-42010 · 77213-42030 |
| 77219 | Fuel tank filler pipe cap | 77219-32030 |
| 77251B | main fuel pipe | 77251-42010 · 77251-42020 · 77251-42050 · 77251-42060 |
| 77255F | No. 2 fuel hose (for fuel return pipe) | 95333-08011 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-42010 |
| 77266A | No. 1 fuel line protection device | 77266-42010 |
| 77277 | No. 1 fuel return pipe | 77255-42010 · 77255-42020 |
| 77277A | No. 1 fuel hose (for No. 1 return pipe) | 90447-12085 · 90447-12141 |
| 77277R | Fuel tank filler pipe protection device | 77277-42010 · 77277-42011 |
| 77278 | No. 2 fuel return pipe | 95333-06020 · 95334-06022 |
| 77281B | Fuel hose clamp (for rear main fuel line) | 77281-42010 |
| 77285D | No. 1 fuel pipe clamp | 77285-42010 |
| 77290 | Fuel tank filler pipe cover assembly | 77290-42010 |
| 77293A | No. 3 fuel tank filler pipe cover | 77293-32020 |
| 77295C | Fuel pipe retaining ring | 77295-42010 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-32010 |
| 77310A | Fuel tank cap assembly | 77310-35070 · 77310-48010 |
| 77316 | fuel tank cap gasket | 77316-16010 |
| 77350 | Fuel filler cap assembly | 77350-42010 · 77350-42020 |
| 77366 | Fuel filler cap hinge spring | 77360-22020 |
| 77377 | Fuel filler cap lock retainer | 77377-20050 |
| 77380 | Fuel shut-off valve assembly | 77380-26010 |
| 77415 | No. 5 fuel pipe retaining ring bracket | 77415-30020 |
| 77420 | No. 2 fuel shut-off valve assembly | 77420-26010 |
| 77601A | No. 1 fuel tank strap sub-assembly | 77601-42010 · 77601-42020 · 77601-42030 · 77601-42040 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-42010 |
| 77641A | No. 1 fuel tank protective shell | 77641-42010 |
| 77642A | No. 2 fuel tank protective shell | 77642-42010 |
| 77642C | No. 2 fuel tank protective shell | 77642-42020 |
| 77643A | No. 3 fuel tank protective shell | 77643-42010 |
| 77658A | No. 1 fuel tank edge protective shell | 77658-42010 |
| 77659 | No. 2 fuel tank edge protective shell | 77659-42010 |
| 77740 | Carbon canister assembly | 77740-42010 · 77740-42040 · 77740-42050 · 77740-42060 |
| 77751 | Carbon canister base bracket | 77751-20350 · 77751-20351 |
| 77754 | No. 1 carbon canister outlet hose | 77754-42010 · 77754-42020 · 77754-42030 |
| 77779 | Carbon canister outlet pipe | 77779-42010 |
