Toyota RAV4 扰流板和侧挡泥板 — Figure 7652

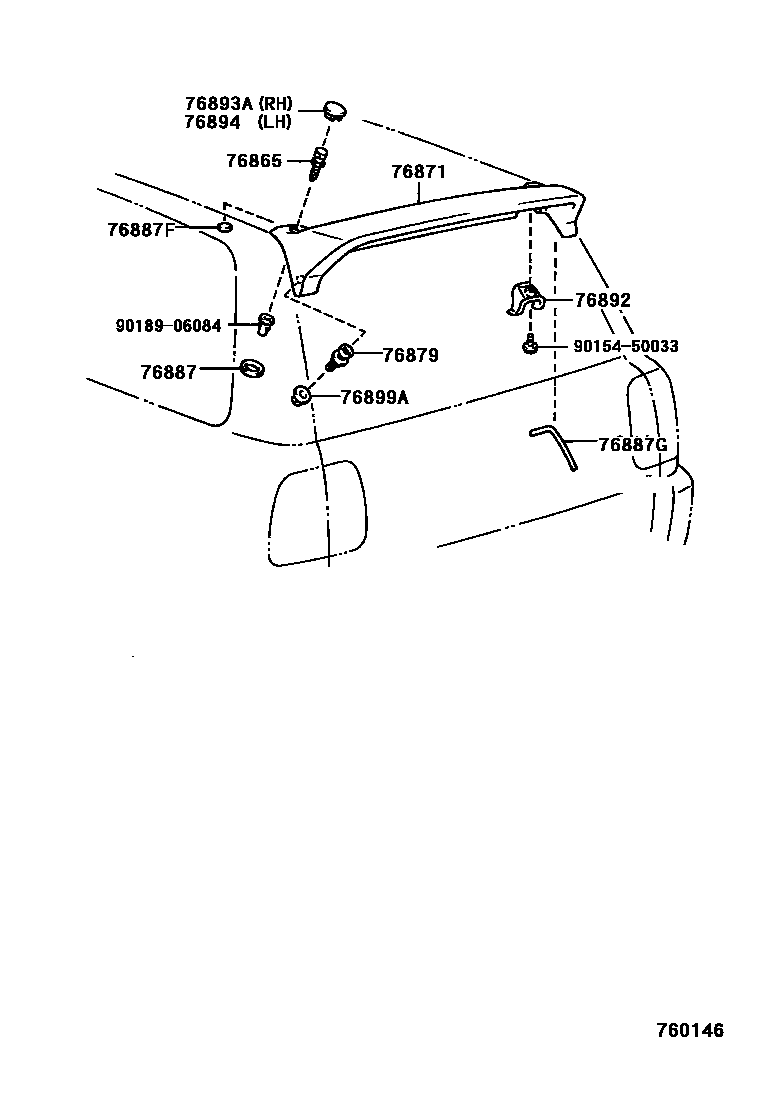

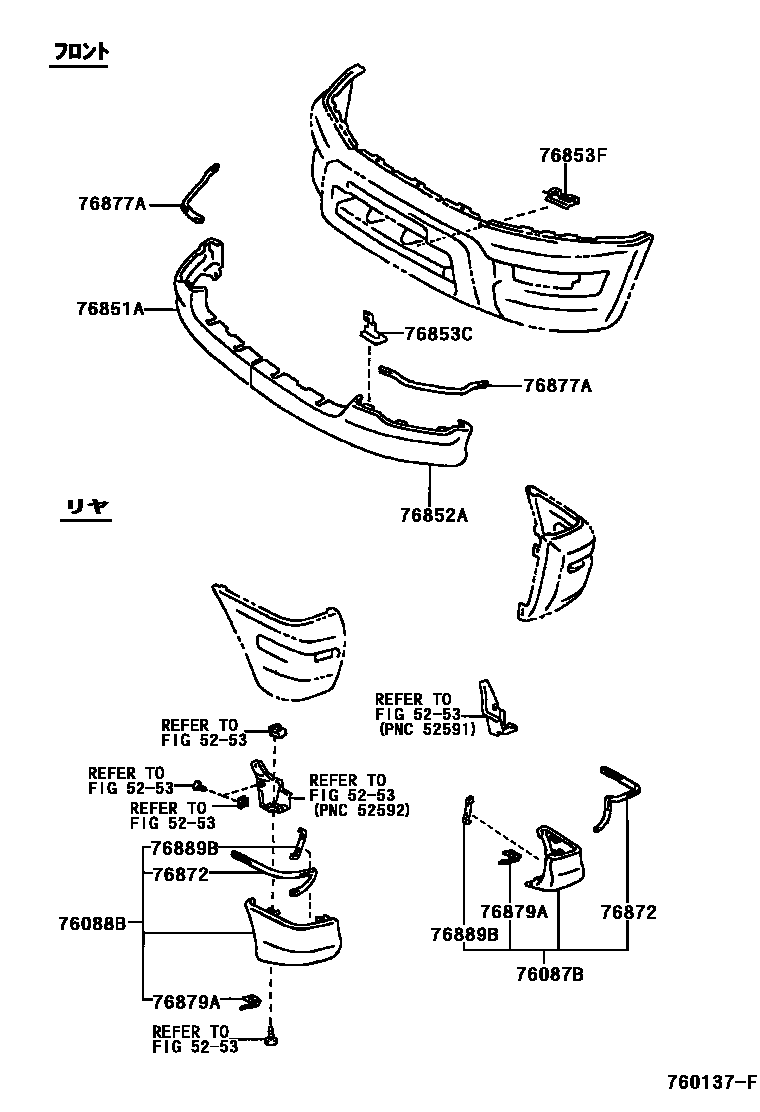

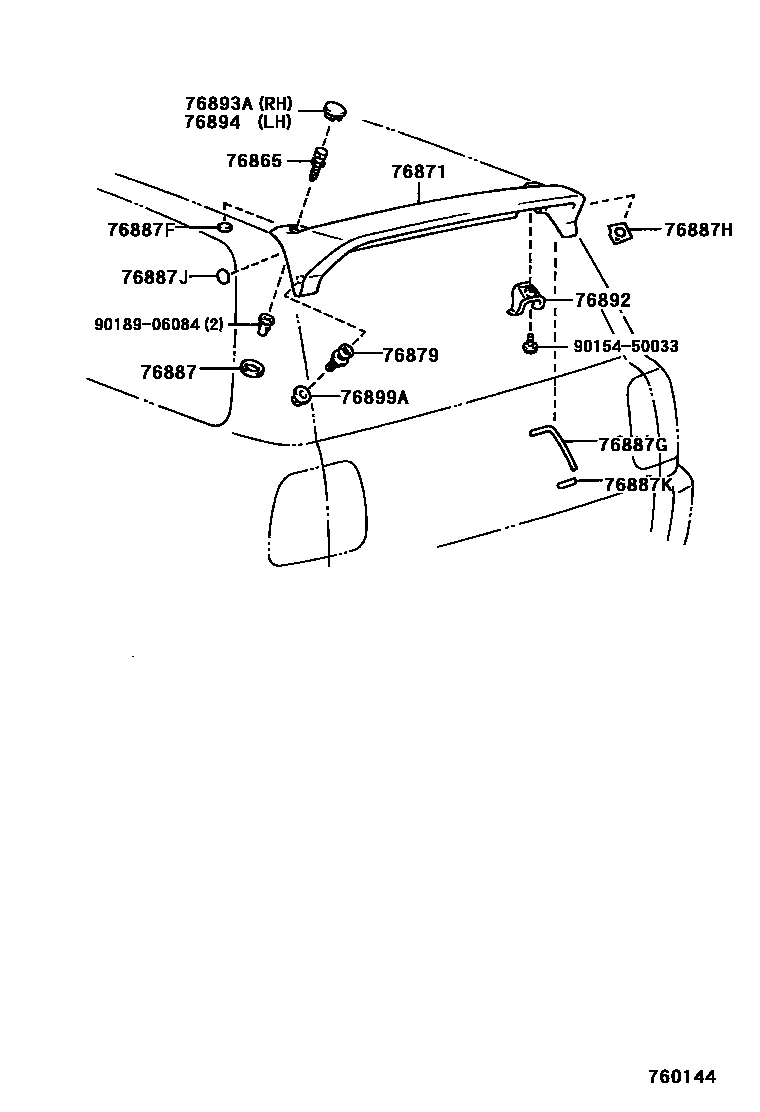

Toyota RAV4 EPC diagram 7652, 扰流板和侧挡泥板, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76853C | No. 1 front spoiler fixing piece | 76853-10010 |
| 76865 | No. 1 rear spoiler fixing piece | 76865-42010 |
| 76871 | rear spoiler | 76871-42900 · 76871-42901 |
| 76879 | No. 1 rear spoiler clip | 76879-42010 |
| 76879A | Rear spoiler spacer | 76879-44010 |
| 76887 | Rear spoiler seal | 76887-42020 |
| 76887F | No. 2 rear spoiler seal | 76887-42030 |
| 76887G | No. 3 rear spoiler seal | 76887-42040 |
| 76887H | No. 4 rear spoiler seal | 76887-42050 |
| 76887J | No. 5 rear spoiler seal | 76887-42060 |
| 76887K | No. 6 rear spoiler seal | 76887-42070 |
| 76892 | No. 2 rear spoiler | 76892-42900 · 76892-42901 |
| 76893A | Right rear spoiler cover | 76893-42900 · 76893-42901 |
| 76894 | Left rear spoiler cover | 76894-42900 · 76894-42901 |
| 76899A | rear spoiler nut | 76899-42010 |
