Toyota RAV4 车身镶条 — Figure 7553

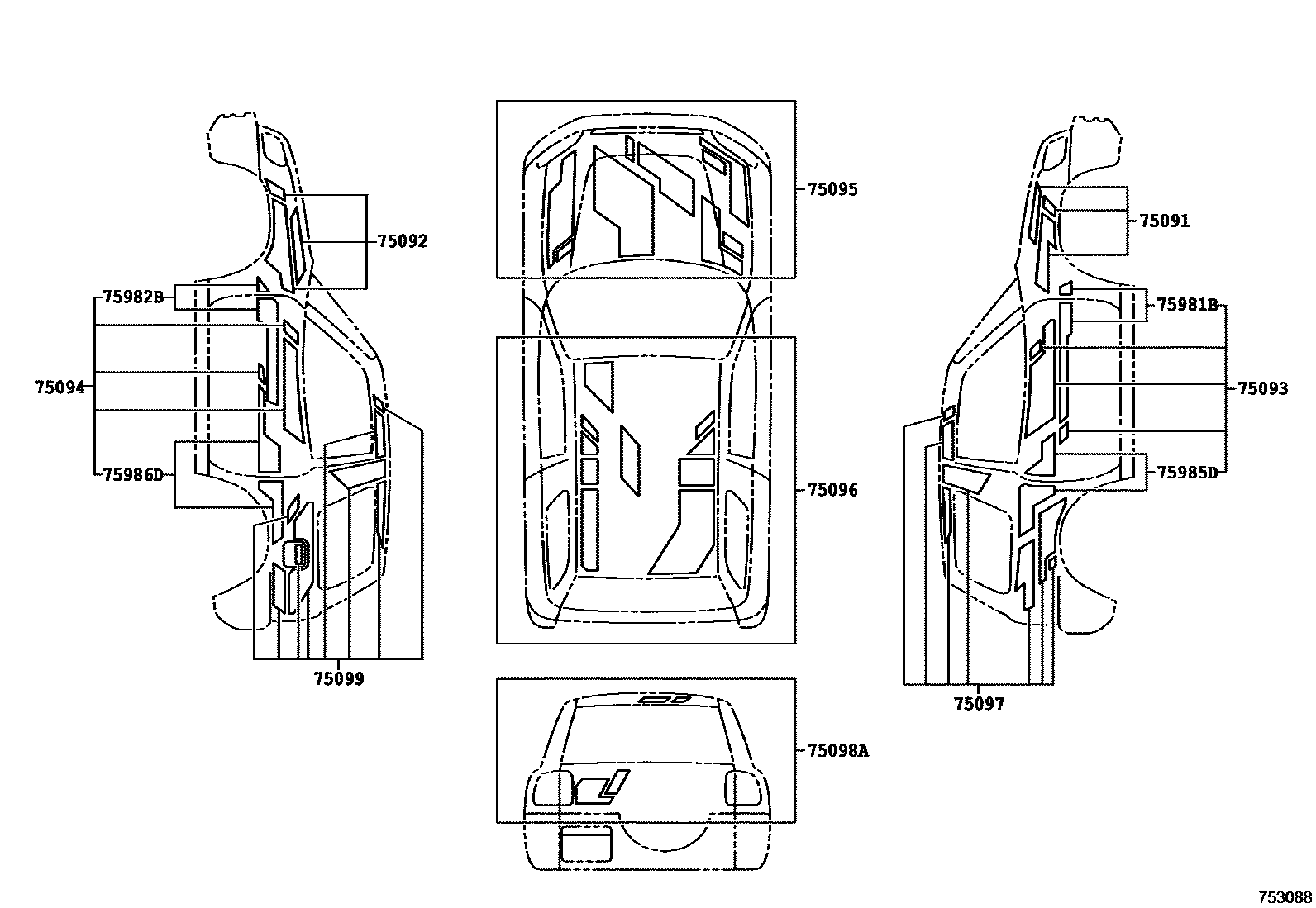

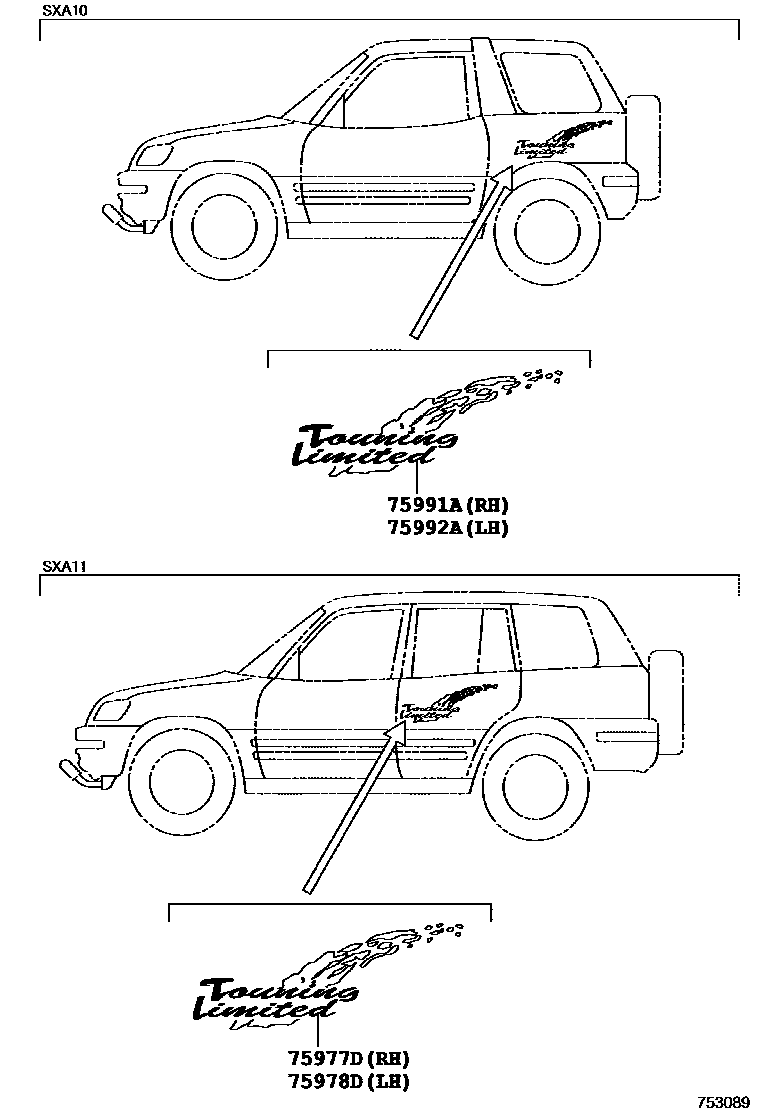

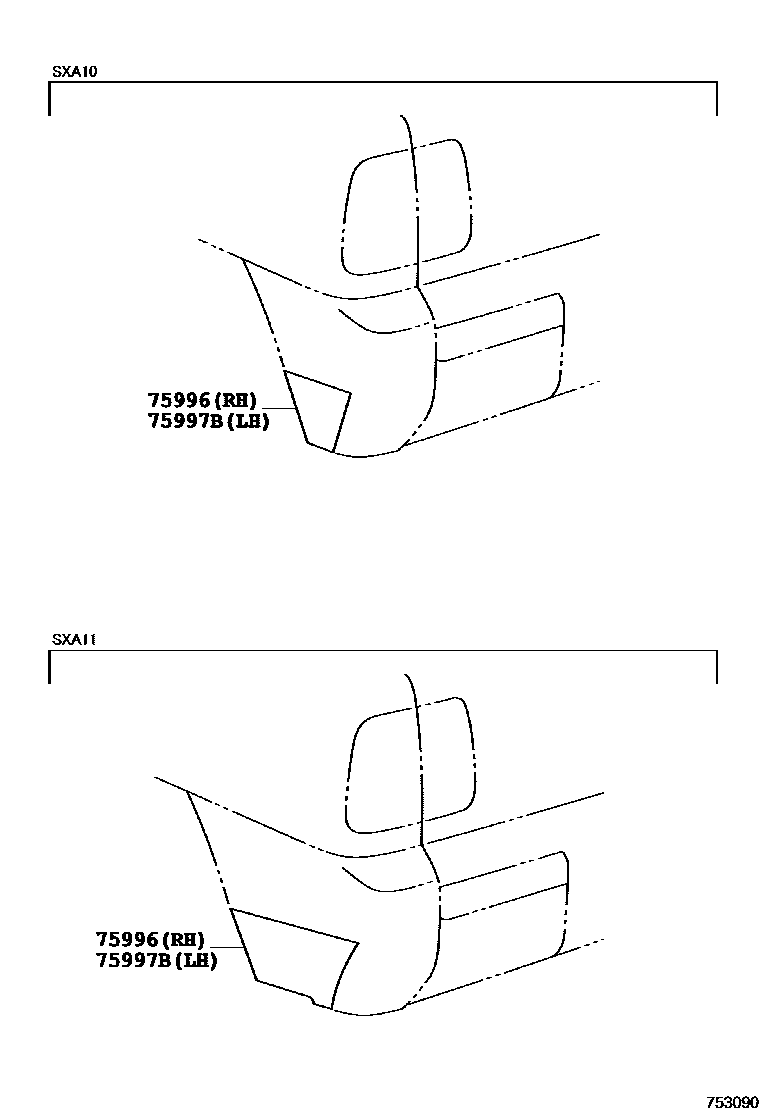

Toyota RAV4 EPC diagram 7553, 车身镶条, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75977D | Right rear door trim | 75097-42020 |
| 75978D | Left rear door trim | 75099-42020 |
| 75981B | Right fender panel | 75981-42010 |
| 75982B | Left fender panel | 75982-42010 |
| 75985D | Right front door outer trim | 75985-42010 |
| 75986D | Left front door outer trim | 75986-42010 |
| 75991A | Right side surround strip | 75097-42020 |
| 75992A | Left side surround strip | 75099-42020 |
| 75996 | Rear bumper molding | 75996-42010 · 75996-42020 · 75996-42050 · 75996-42060 |
| 75997B | Rear bumper molding | 75997-42010 · 75997-42020 · 75997-42050 · 75997-42060 |
