Toyota RAV4 warning nameplate — Figure 7455

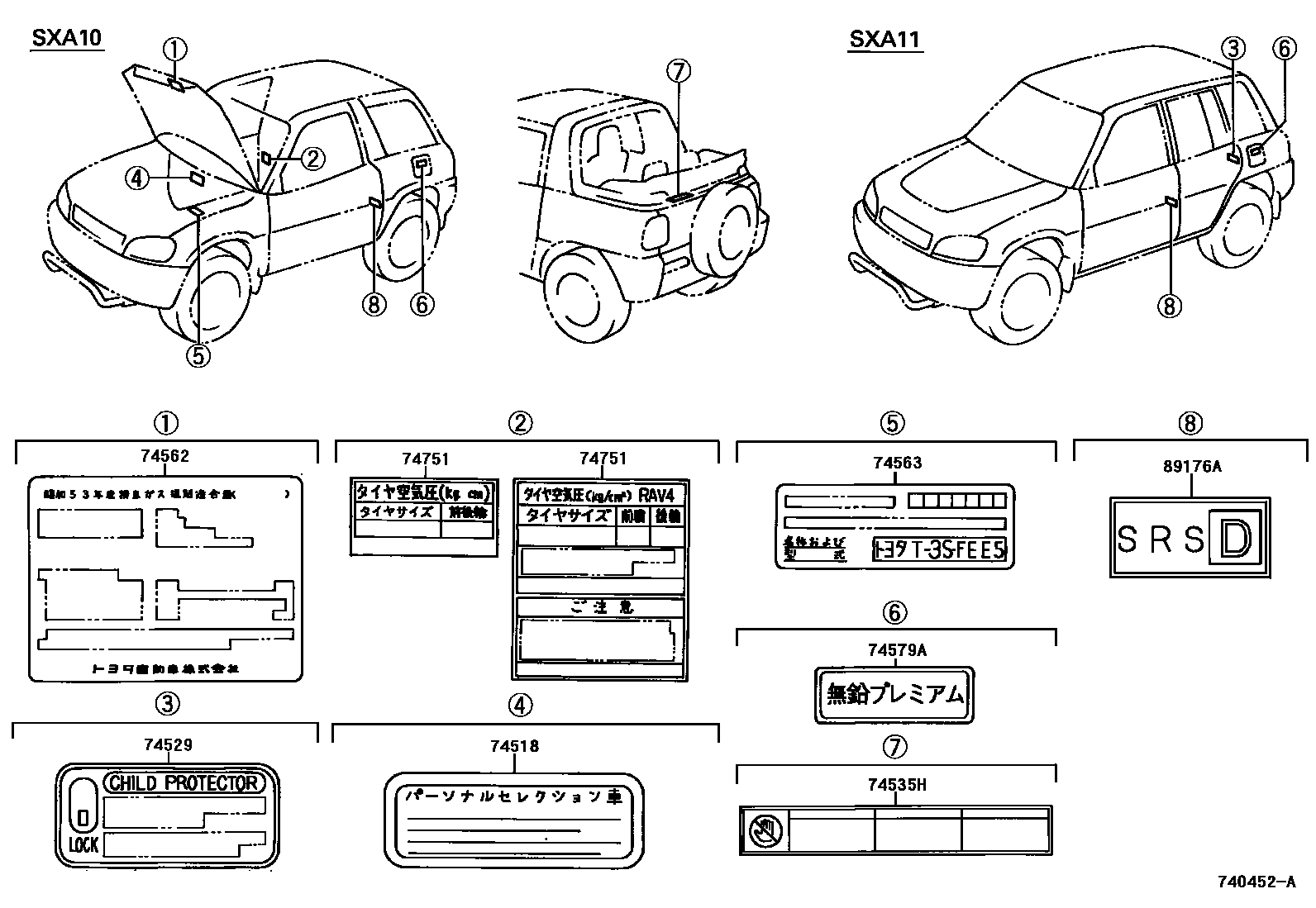

Toyota RAV4 EPC diagram 7455, warning nameplate, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74518 | Maintenance warning nameplate | 74518-42010 |
| 74529 | Child safety or child restraint lock warning nameplate | 69339-12010 |
| 74535H | Back door attention label | 74535-42010 |
| 74562 | Emission control system information plate | 74562-20590 |
| 74563 | Emission control equipment identification plate | 74563-42010 · 74563-42020 · 74563-42030 · 74563-42040 |
| 74579A | Unleaded Fuel Information Label | 74579-24010 |
| 74751 | tire pressure information label | 42661-42010 · 42661-42011 · 42661-42040 · 42661-42041 · 42661-42080 |
| 89176A | Air bag deployment information label | 89176-41010 |
