Toyota RAV4 seat belt — Figure 7152

Toyota RAV4 EPC diagram 7152, seat belt, with 2 images and 2 PNC and OE references.

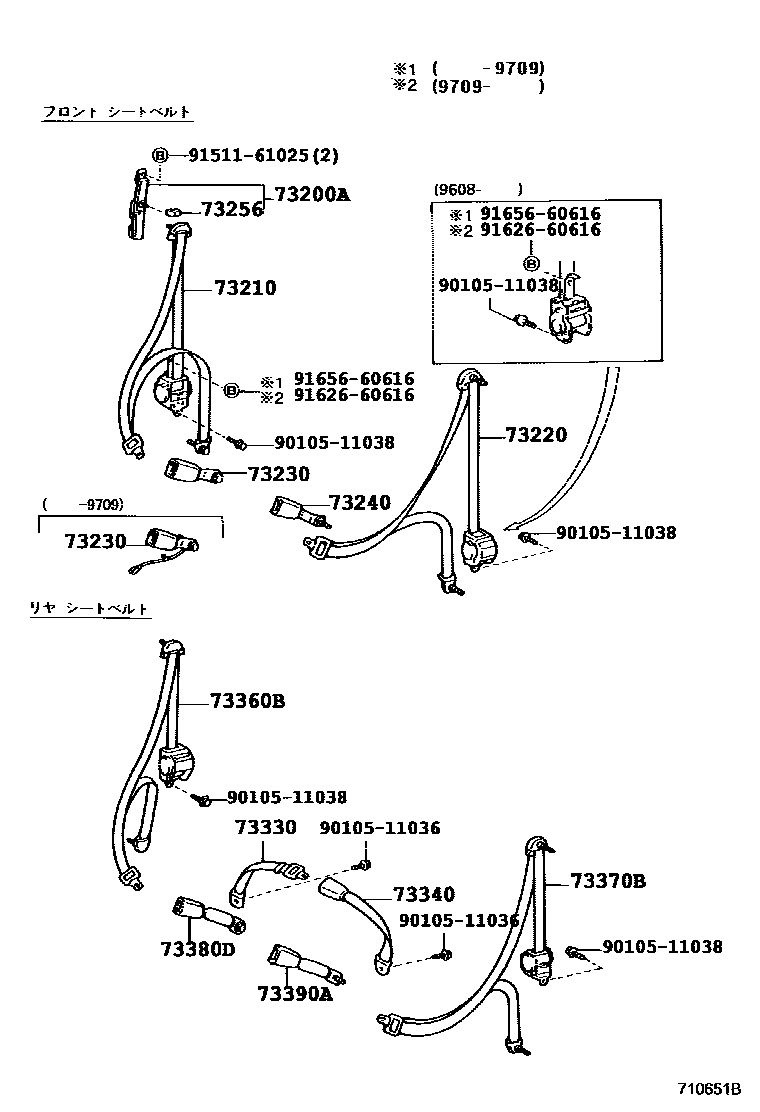

Toyota RAV4 seat belt EPC diagram — 710651B
seat belt — 710651B (199504 – 999999)

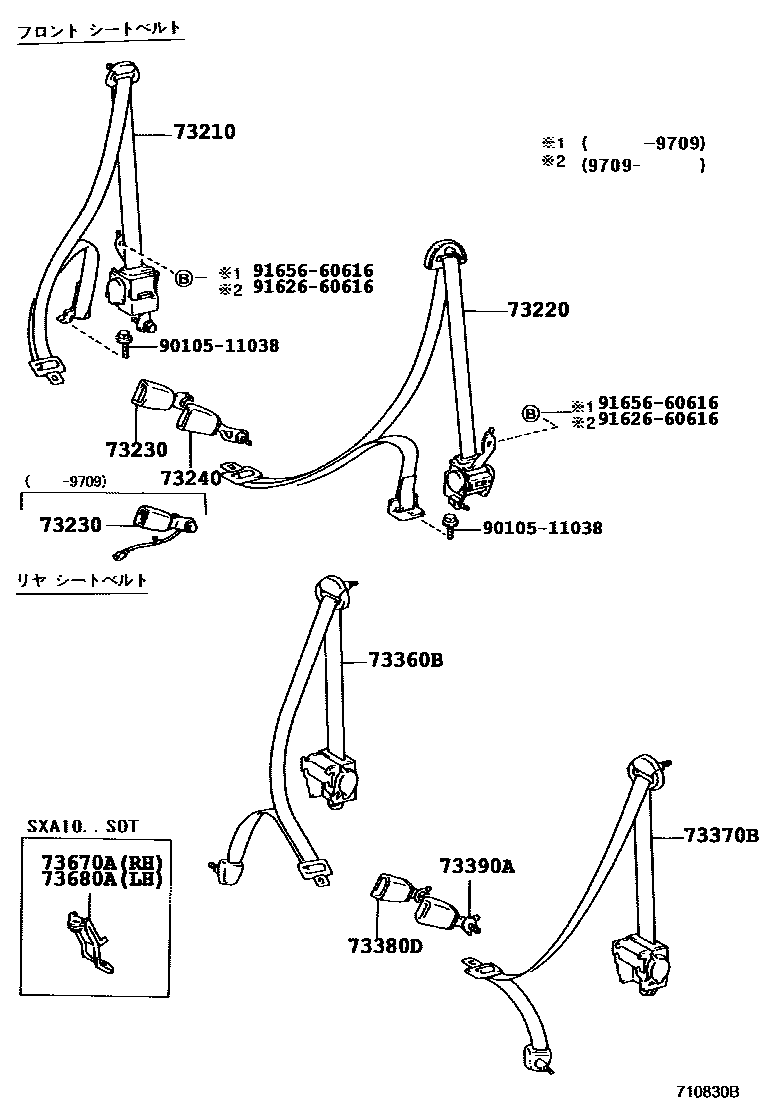

Toyota RAV4 seat belt EPC diagram — 710830B
seat belt — 710830B (199404 – 999999)

PNC and OE references

PNCPart nameOE numbers
73670ARear right seat outer seat belt anchor bracket assembly73670-42010
73680ARear left seat outer seat belt anchor bracket assembly73680-42010
