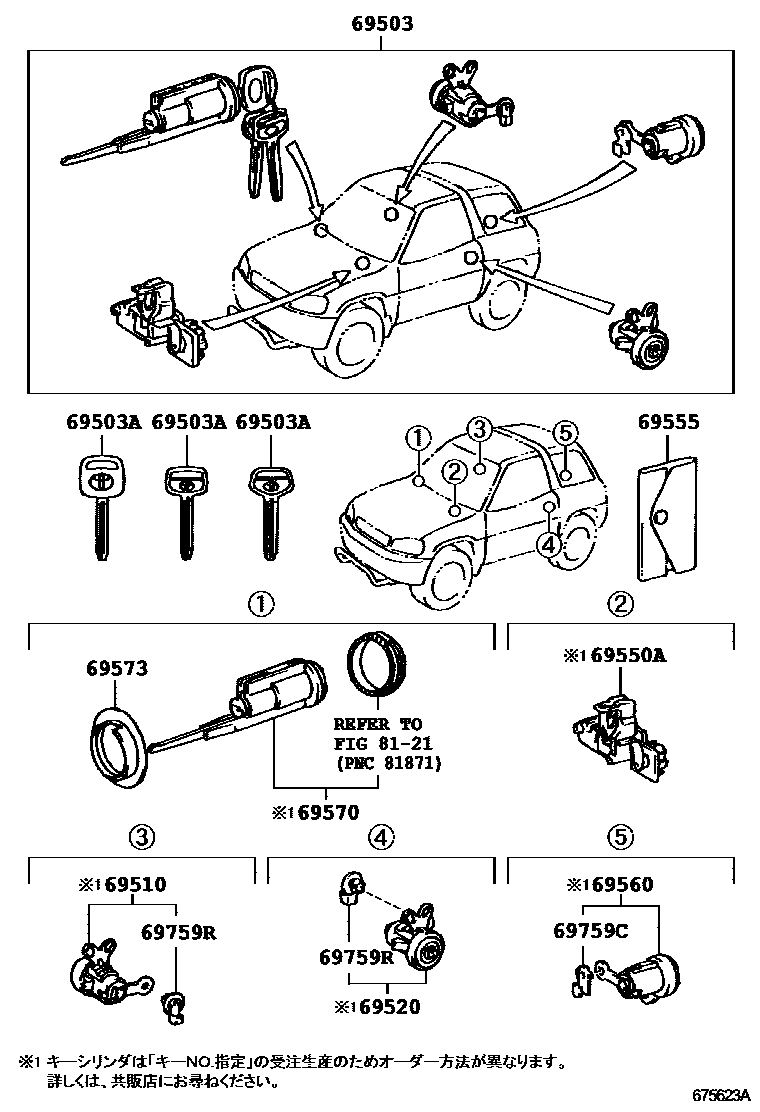

Toyota RAV4 锁芯组件 — Figure 6765
Toyota RAV4 EPC diagram 6765, 锁芯组件, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69503 | Door lock cylinder components | 69005-42010 · 69005-42050 · 69005-42090 · 69005-42100 |
| 69503A | external tooth key | 90999-00185 · 90999-00186 · 90999-00188 |
| 69510 | Right front door lock cylinder assembly | 69510-20240 · 69510-42010 |
| 69520 | Left front door lock cylinder assembly | 69520-20230 · 69520-42010 |
| 69550A | Glove box cover lock cylinder assembly | 69550-33020 |
| 69555 | key cover | 69555-17020 |
| 69560 | Rear door lock cylinder assembly | 69560-42010 |
| 69570 | Ignition switch lock cylinder assembly | 69570-42010 · 69570-42020 |
| 69573 | Ignition switch lock cylinder gasket | 69573-12030 · 69573-42020 |
| 69759C | Back door lock cylinder buckle | 69759-24080 |
| 69759R | Front door lock cylinder buckle | 69759-22080 · 69759-22090 |
