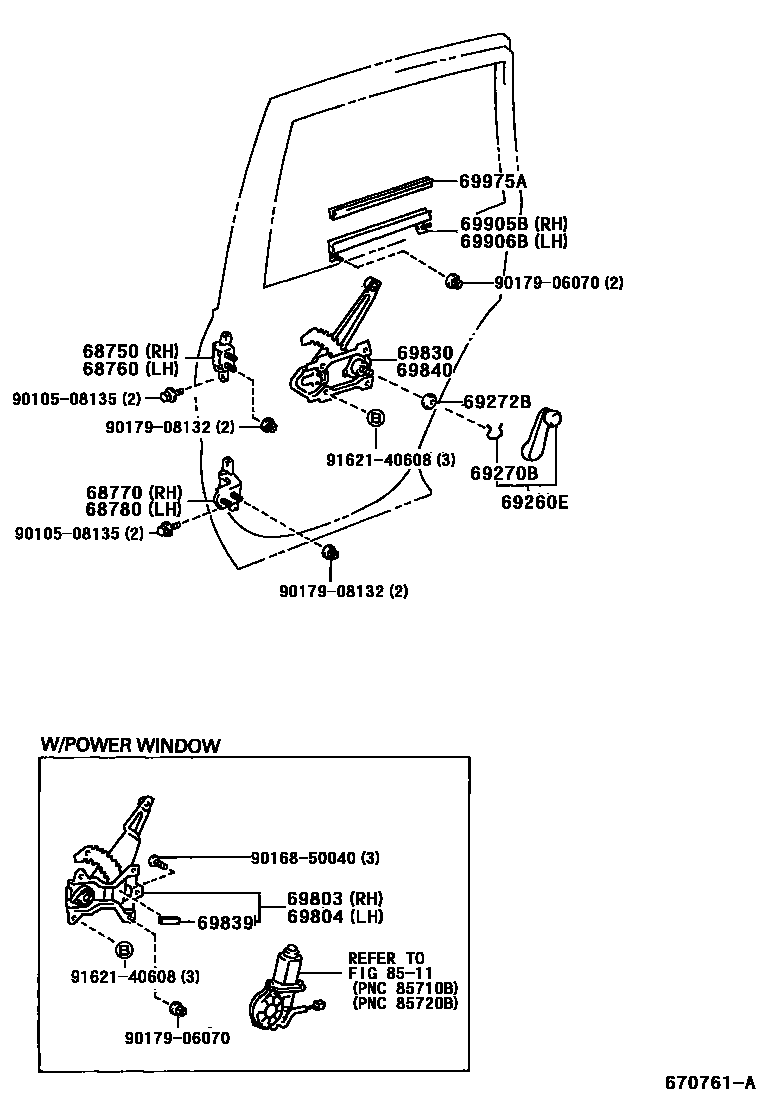

Toyota RAV4 后门车窗升降器和合页 — Figure 6757
Toyota RAV4 EPC diagram 6757, 后门车窗升降器和合页, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68750 | Right rear door upper hinge assembly | 68750-42010 |
| 68760 | Left rear door upper hinge assembly | 68760-42010 |
| 68770 | Right rear door lower hinge assembly | 68770-22020 |
| 68780 | Left rear door lower hinge assembly | 68780-22020 |
| 69270B | Shaft snap ring (for rear door window regulator handle) | 90520-01002 · 90520-01274 |
| 69803 | Right rear door window lifter sub-assembly | 69803-42010 |
| 69804 | Left rear door window lifter sub-assembly | 69804-42010 |
| 69830 | Right rear corner window lift assembly | 69830-42010 |
| 69839 | Rear door window regulator gasket | 69839-12020 |
| 69840 | Left rear corner window lift assembly | 69840-42010 |
| 69905B | Right rear door glass groove sub-assembly | 69905-42010 |
| 69906B | Left rear door glass groove sub-assembly | 69906-42010 |
| 69975A | Rear door glass channel filler | 69975-42010 |
