Toyota RAV4 后车身顶部窗帘和天窗板 — Figure 6555

Toyota RAV4 EPC diagram 6555, 后车身顶部窗帘和天窗板, with 1 images and 29 PNC and OE references.

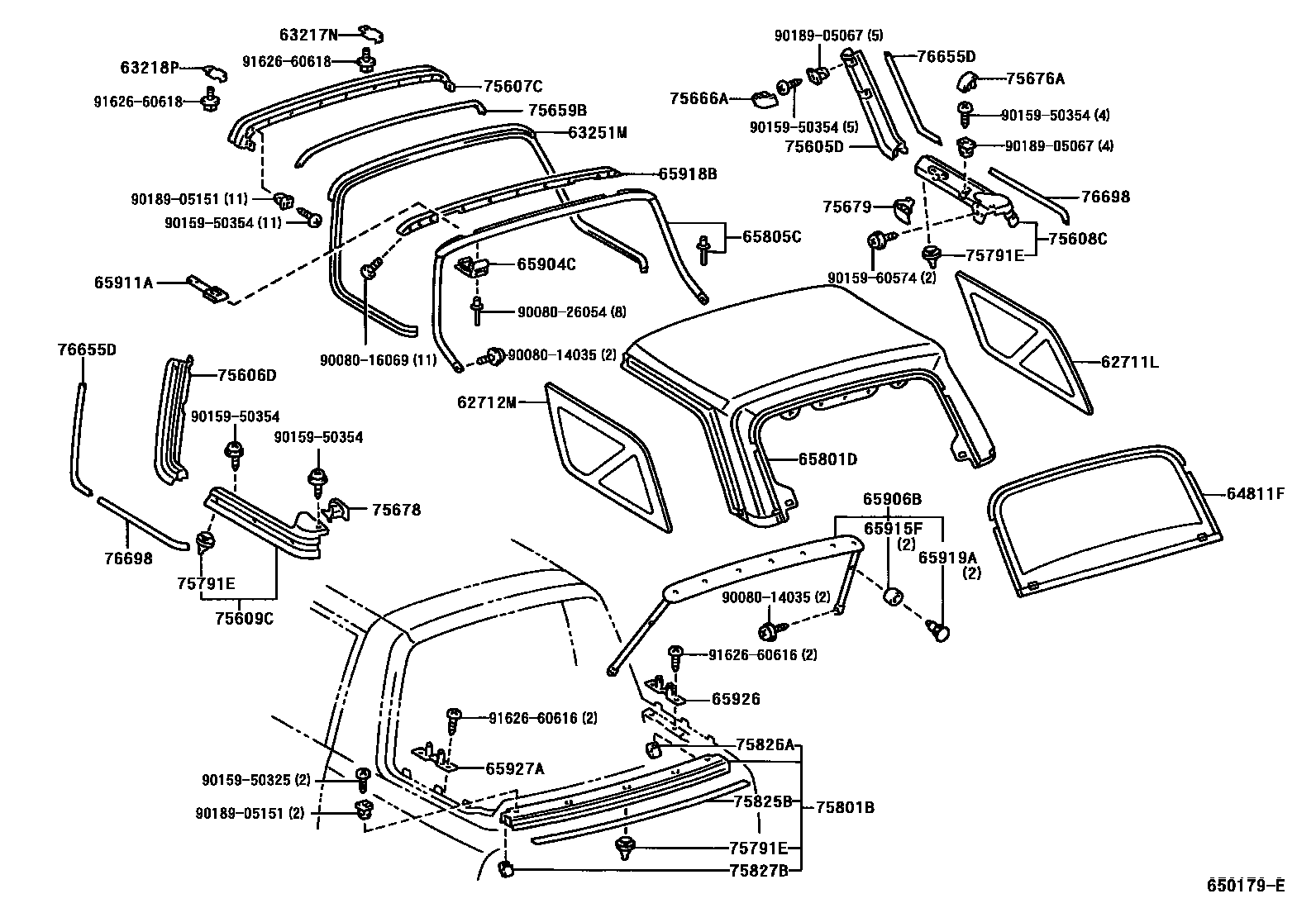

Toyota RAV4 后车身顶部窗帘和天窗板 EPC diagram — 650179E
后车身顶部窗帘和天窗板 — 650179E (199712 – 999999)

PNC and OE references

PNCPart nameOE numbers
63217NRight waterproof hood hook63217-0W040
63218PLeft side waterproof hood hook63217-0W040
63251MWaterproof soft awning outer sealing strip63251-0W040
65805CFront roof waterproof soft awning bow rod sub-assembly65805-0W010
65904CWaterproof soft hood lock bolt sub-assembly65904-0W030
65906BNo. 2 waterproof soft awning bow rod sub-assembly65906-0W030
65911AWaterproof soft canopy cover65911-0W040
65915FWaterproof hood rear padding65915-0W020
65918BWaterproof hood lower fixing parts65918-0W030
65919ANo. 1 bow rod positioning pin65919-0W030
65926Right waterproof awning slide rail pivot bracket65926-0W030
65927ALeft side waterproof awning slide rail pivot bracket65927-0W030
75605DRight side enclosure outer protective strip sub-assembly75605-0W010
75606DLeft side enclosure outer protective strip sub-assembly75606-0W010
75607CRoof protection strip sub-assembly75607-0W010
75608CRight rear corner window decorative belt sub-assembly75608-0W010
75609CLeft rear corner window decorative belt sub-assembly75609-0W010
75659Broof protection strip lining75659-0W010
75666ANo. 1 side panel rear protective strip end cover75666-0W010
75676ARight front corner window trim with end cap75676-0W010
75678Right rear corner window trim with end cap75678-0W010
75679Left rear corner window trim with end cap75679-0W010
75791EWaistline side protective strip clip75791-0W010
75801BRear door outer protective strip sub-assembly75801-0W010
75825BProtective strip padding on outer side of back door75659-0W010
75826ABack door right outer protective strip pad75826-0W010
75827BBack door left outer protective strip pad75827-0W010
76655DCorner window protective strip lining75659-0W010
76698Corner window trim with padding75659-0W010
