Toyota RAV4 车内装饰板 — Figure 6451

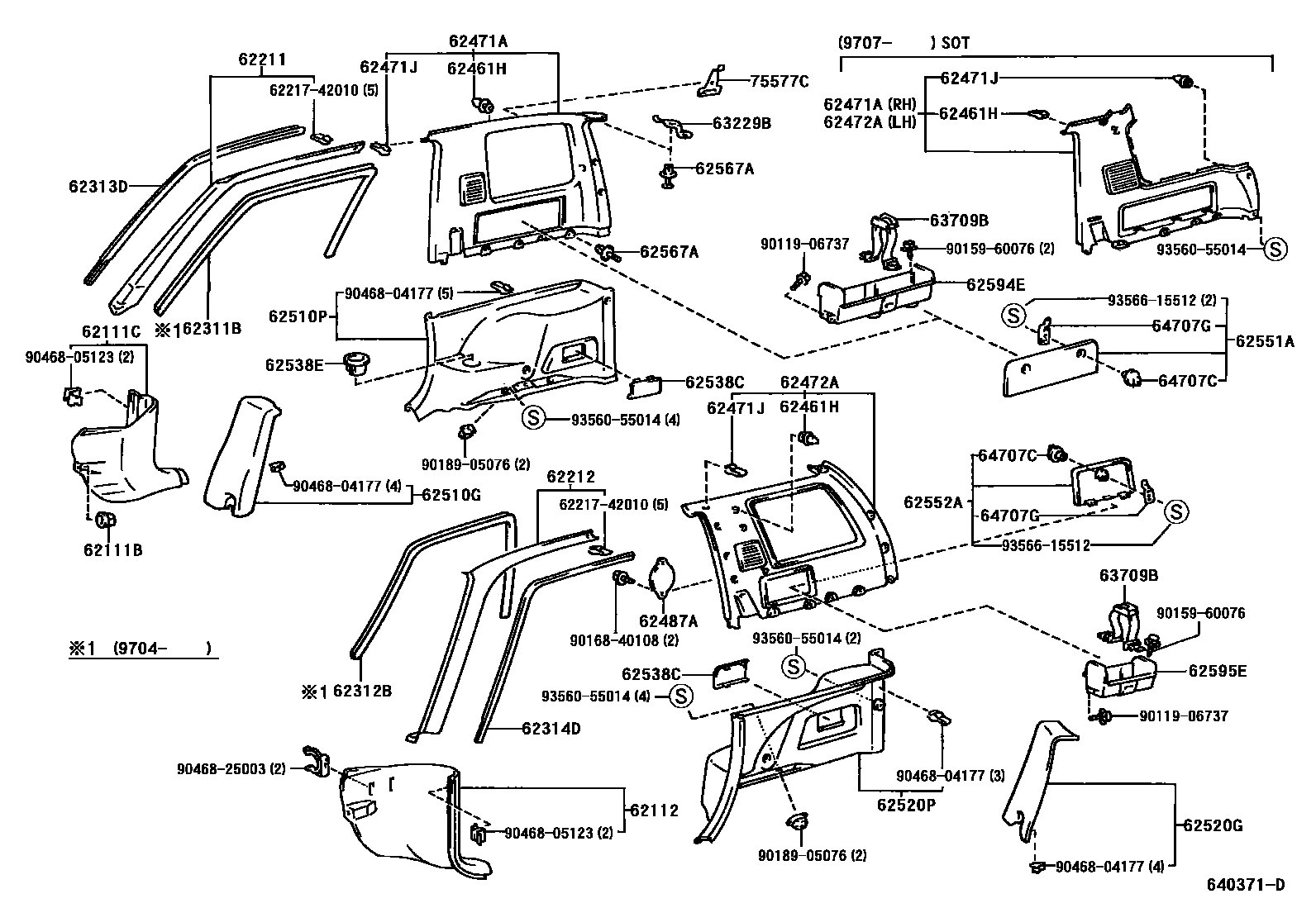

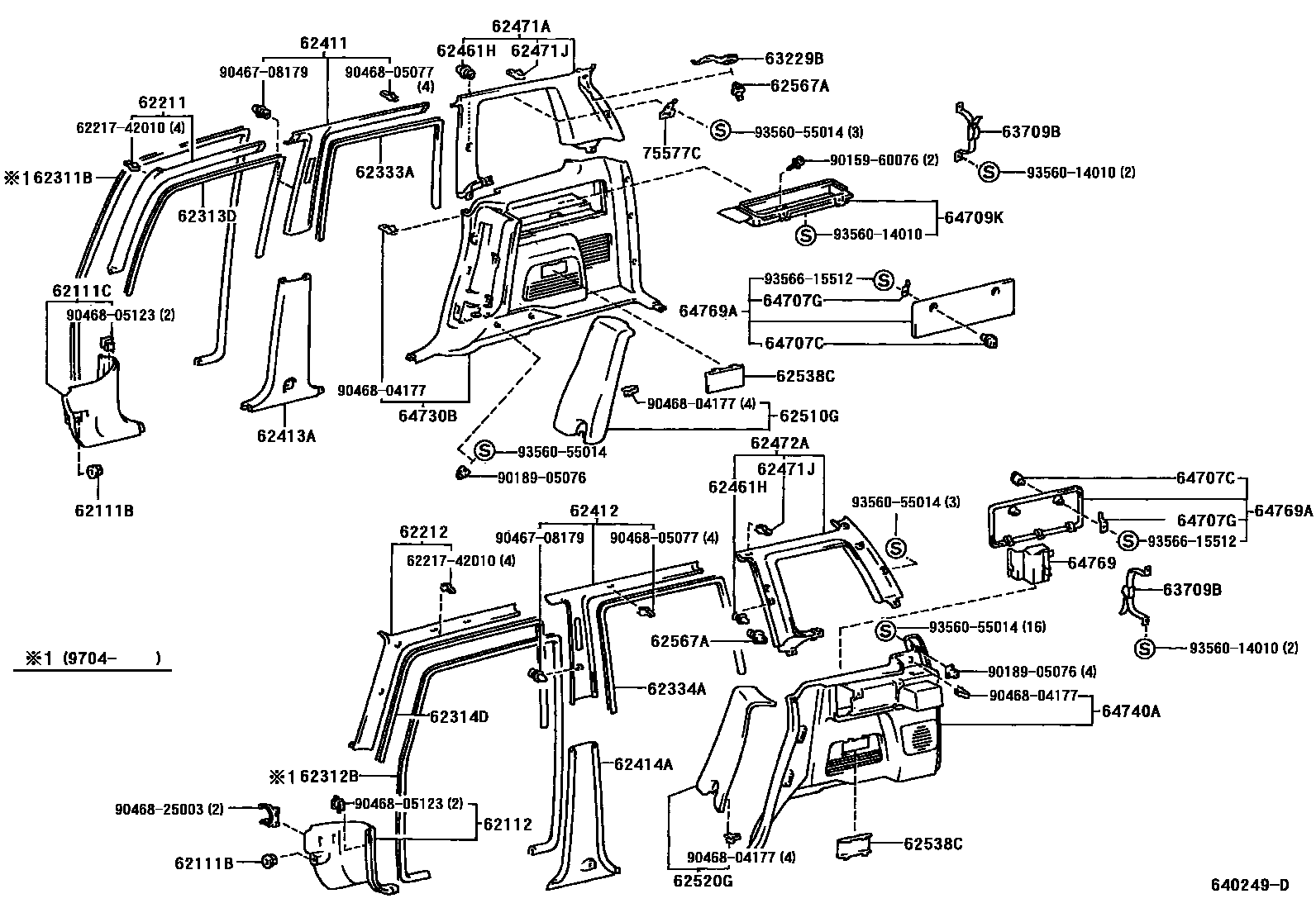

Toyota RAV4 EPC diagram 6451, 车内装饰板, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62111B | Clip (for cowl side trim panel) | 90467-06147 |
| 62461H | Clips (for roof side interior panels) | 90467-08179 · 90467-09158 |
| 62471J | Clips (for roof side trim panels) | 62217-42010 · 90468-05077 |
| 62487A | Roof right interior panel cover | 62487-42010 |
| 62594E | Right side decorative panel groove | 62594-42010 · 62594-42020 |
| 62595E | Groove in left side surround decorative panel | 62595-42010 · 62595-42020 |
| 63229B | headliner rear bracket | 63229-42010 |
| 63709B | In-car luggage rack strap sub-assembly | 63709-42010 · 63709-42011 · 63709-42020 |
| 64707G | Jack cover stop | 64768-60010 |
| 64709K | Tool bag box sub-assembly | 64709-42010 |
| 75577C | Roof side trim bracket | 75577-42010 |
