Toyota RAV4 侧梁 — Figure 6151

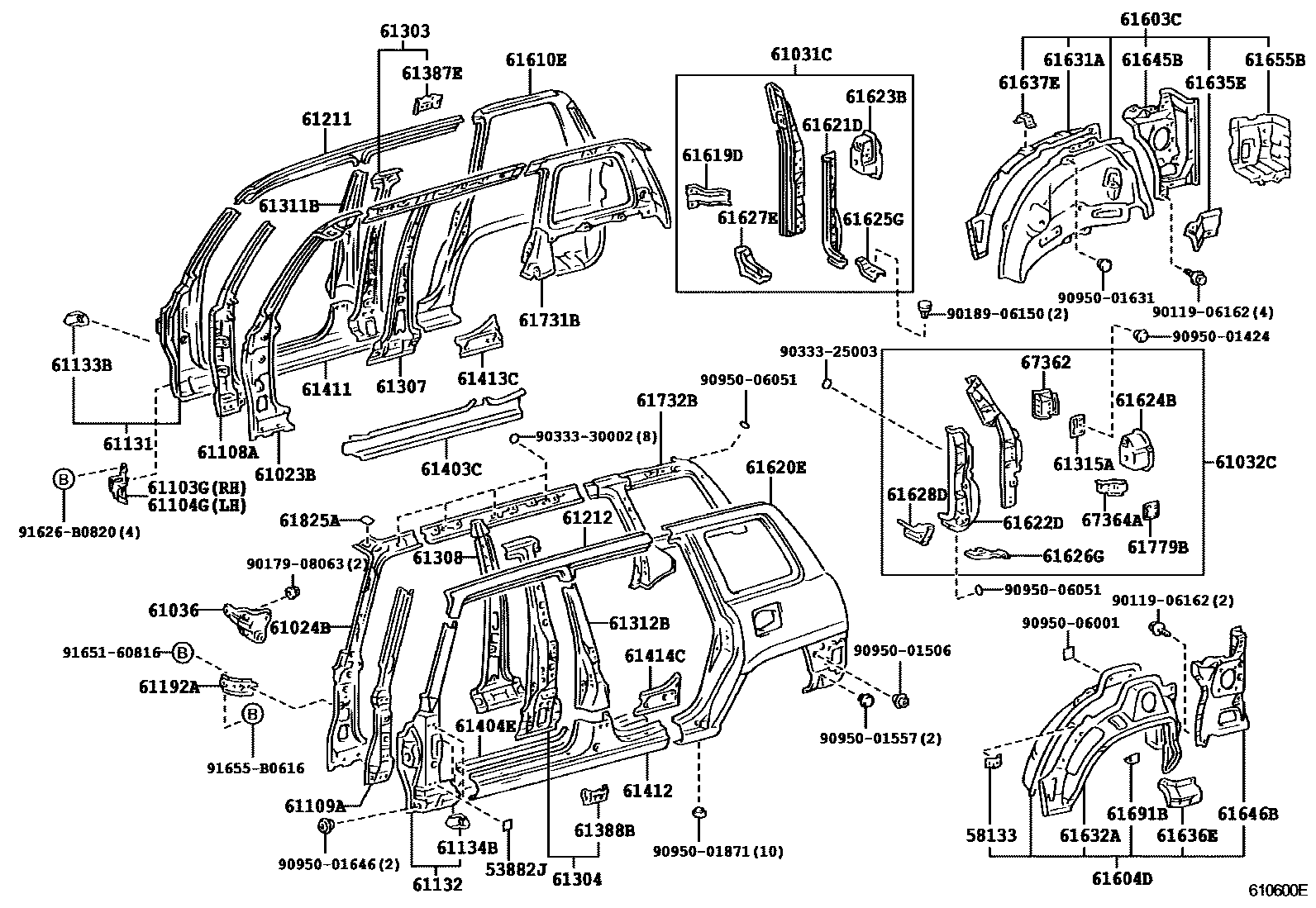

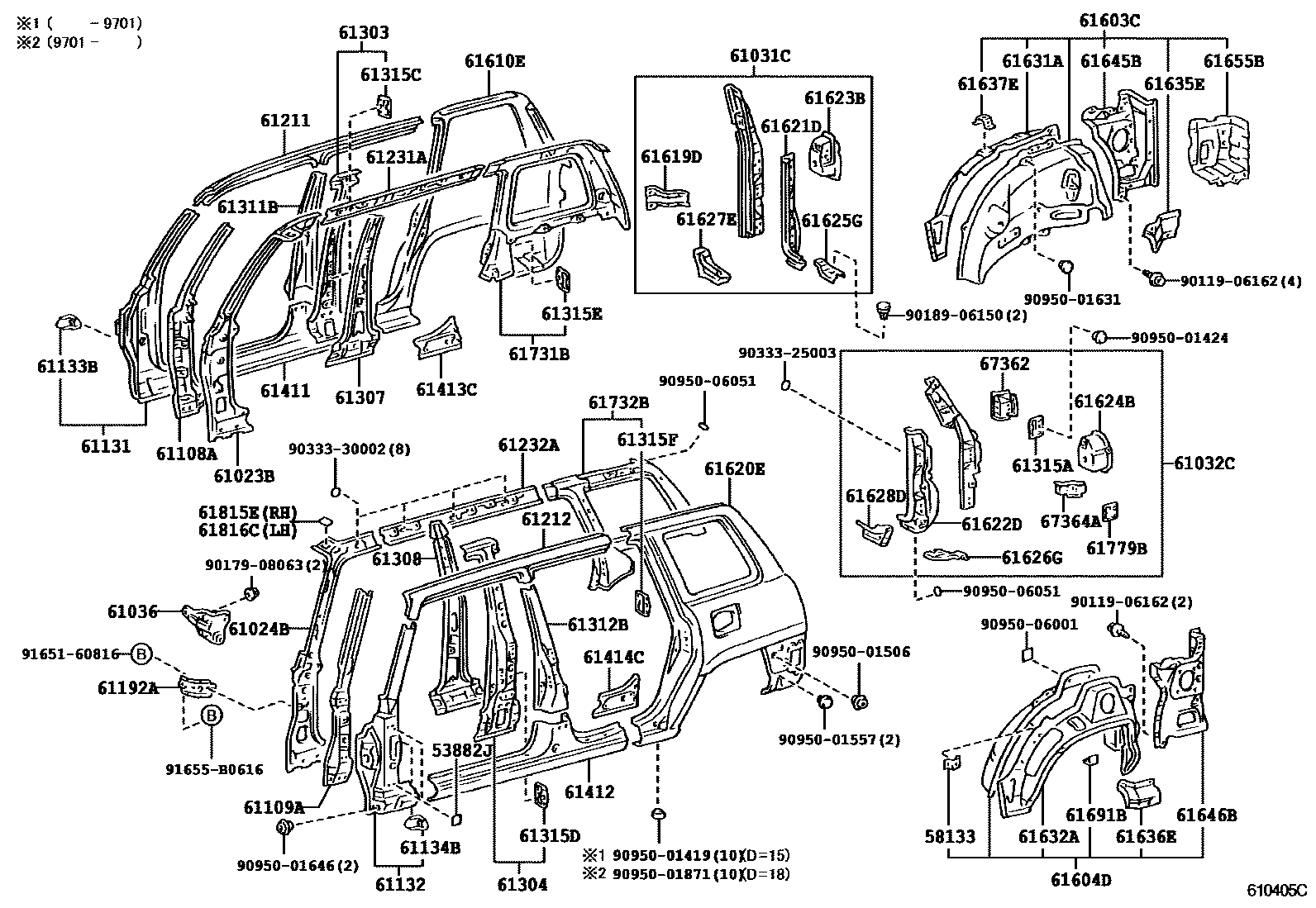

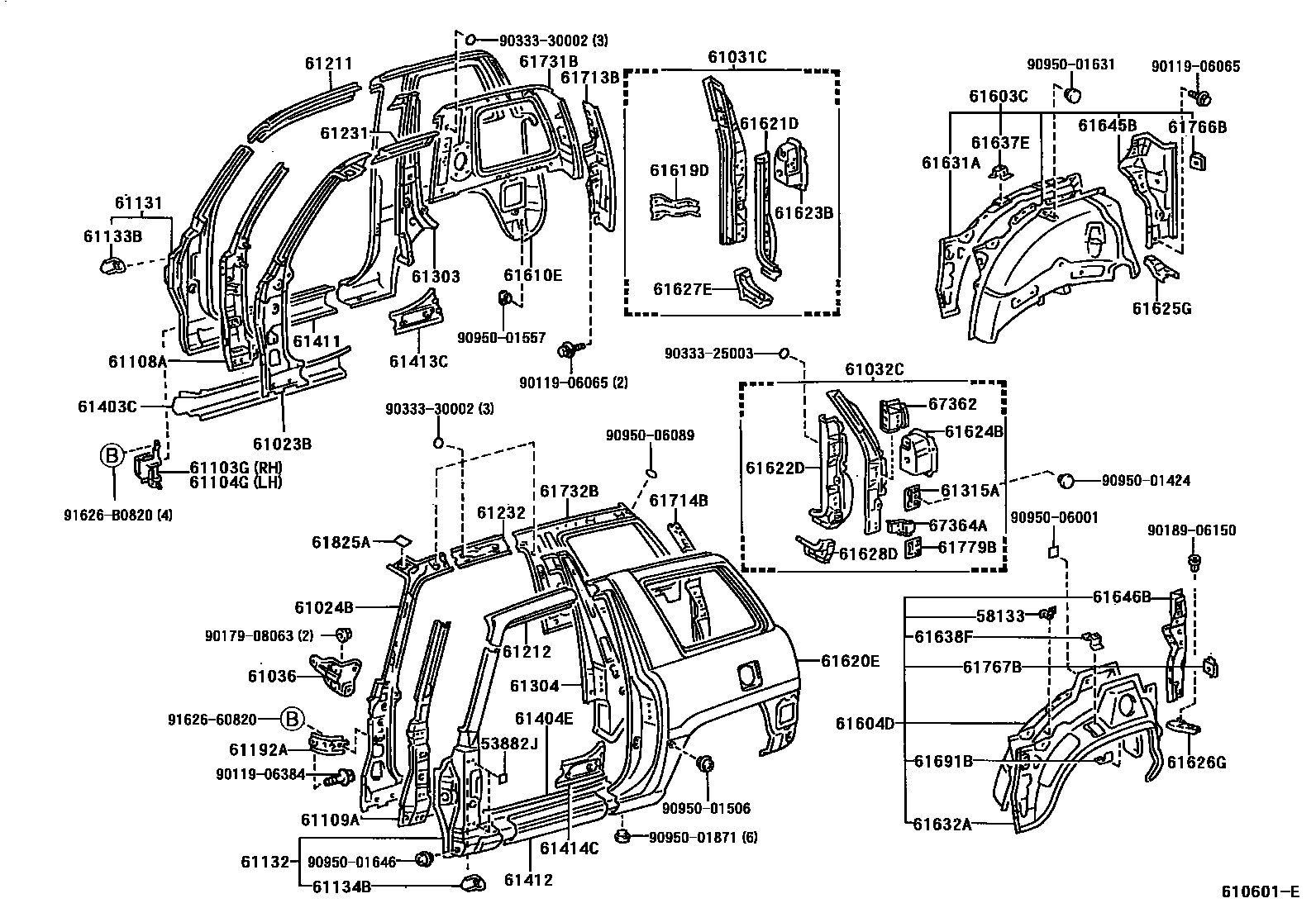

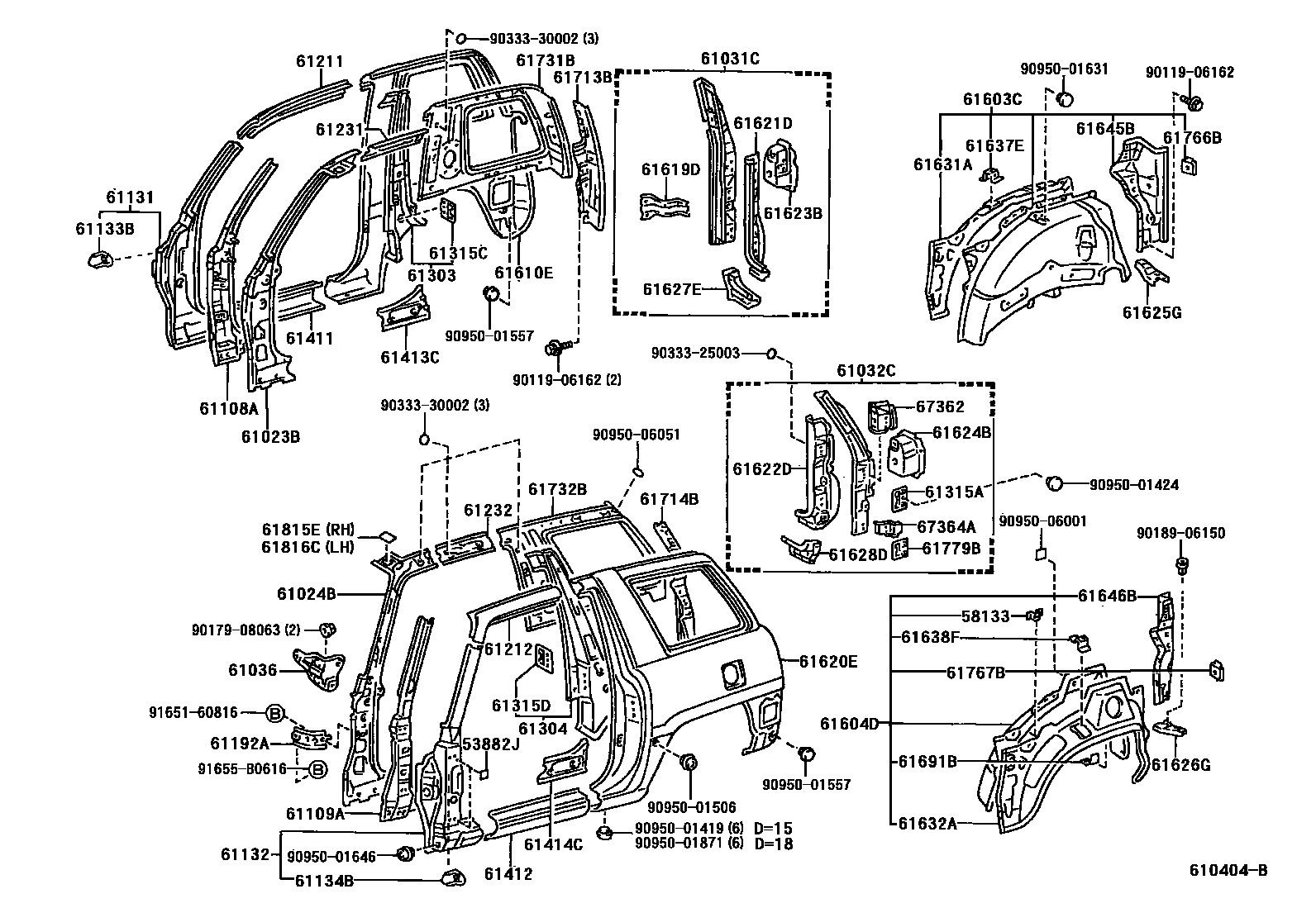

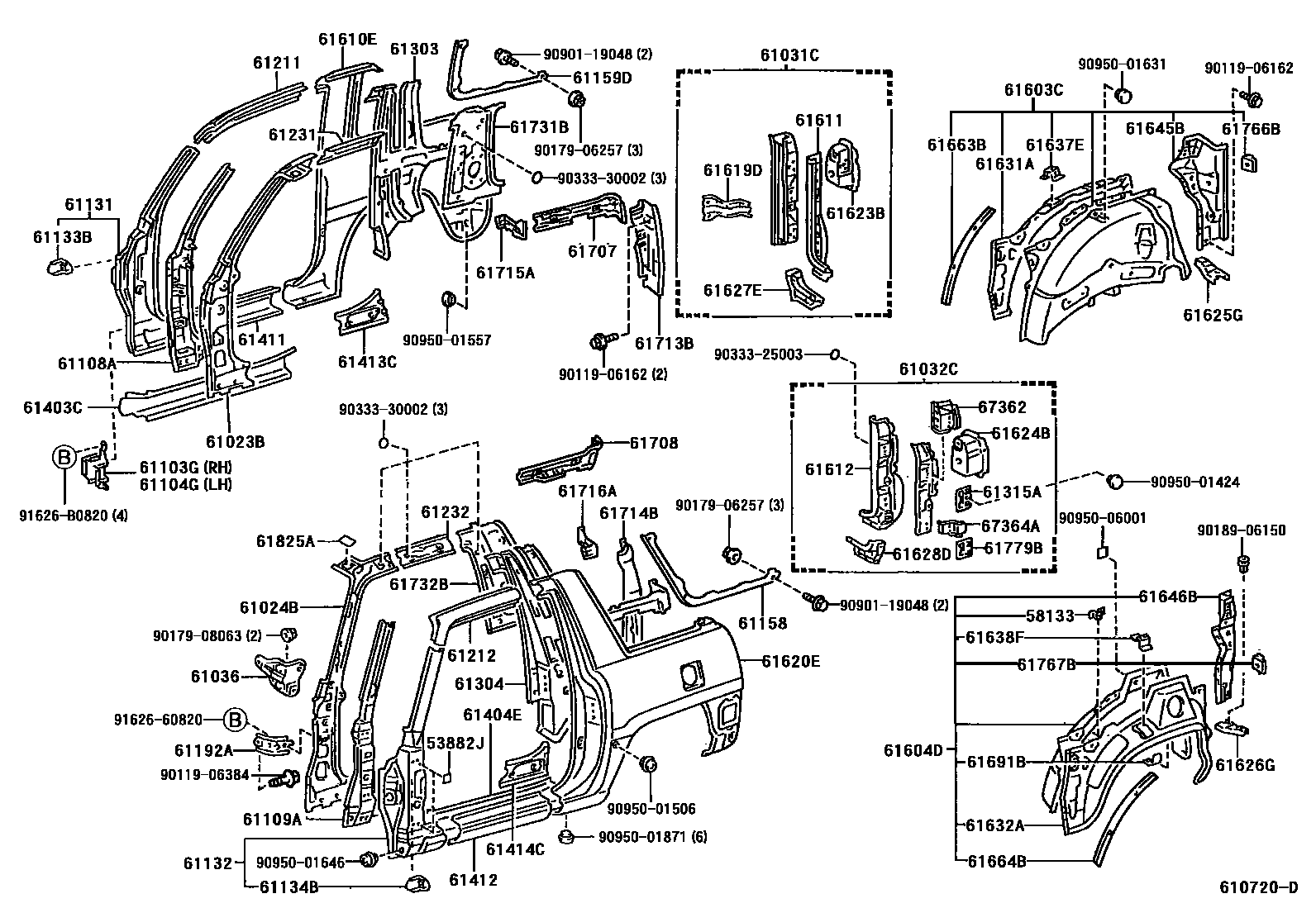

Toyota RAV4 EPC diagram 6151, 侧梁, with 5 images and 86 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53882J | front fender seal | 53882-22080 |
| 58133 | Front floor No. 3 insulation pad bracket | 58133-22030 |
| 61023B | Right body inner front pillar sub-assembly | 61023-42030 · 61023-42031 · 61023-42050 · 61023-42902 |
| 61024B | Left body inner front pillar sub-assembly | 61024-42041 · 61024-42060 · 61024-42903 |
| 61031C | Right rear side panel extension sub-assembly | 61031-42010 · 61031-42020 · 61031-42030 |
| 61032C | Left rear side panel extension sub-assembly | 61032-42010 · 61032-42020 · 61032-42030 |
| 61036 | Instrument panel to left front wall side bracket sub-assembly | 61166-42010 |
| 61103G | Right body front pillar lower corner panel sub-assembly | 61103-42010 |
| 61104G | Left side body front pillar lower corner panel sub-assembly | 61104-42010 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-42010 · 61108-42011 · 61108-42030 · 61108-42900 · 61108-42901 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-42010 · 61109-42011 · 61109-42030 · 61109-42900 · 61109-42901 |
| 61131 | Right body outer front upper pillar | 61110-42040 · 61110-42041 · 61110-42070 · 61110-42100 · 61310-42010 |
| 61132 | Left body outer front upper pillar | 61120-42040 · 61120-42041 · 61120-42070 · 61120-42100 · 61320-42020 |
| 61133B | Right body outer front pillar bracket | 61133-12190 |
| 61134B | Left body outer front pillar bracket | 61133-12190 |
| 61158 | No. 1 side panel fixing piece | 61158-42020 |
| 61159D | No. 2 right side panel fixing piece | 61159-42020 |
| 61192A | ECU to No. 2 bracket on cowl side | 61192-42010 |
| 61211 | Roof right outer longitudinal beam | 61211-42010 · 61211-42011 · 61211-42020 · 61211-42030 · 61211-42040 |
| 61212 | Roof left outer longitudinal beam | 61212-42010 · 61212-42011 · 61212-42020 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-42010 · 61231-42040 · 61231-42050 |
| 61231A | Inner longitudinal beam on the right side of the roof | 61231-42030 |
| 61232 | Roof left inner longitudinal beam | 61232-42010 · 61232-42040 · 61232-42050 |
| 61232A | Roof left inner longitudinal beam | 61232-42030 |
| 61303 | Right body center pillar reinforcement sub-assembly | 61303-42010 · 61303-42011 · 61303-42020 · 61303-42030 · 61303-42050 · 61303-42060 · 61303-42900 |
| 61304 | Left body center pillar reinforcement sub-assembly | 61304-42010 · 61304-42011 · 61304-42020 · 61304-42030 · 61304-42050 · 61304-42060 · 61304-42900 |
| 61307 | Right body inner center pillar sub-assembly | 61307-42040 · 61307-42900 |
| 61308 | Left body inner center pillar sub-assembly | 61308-42040 · 61308-42900 |
| 61311B | Right body outer center pillar | 61311-42011 |
| 61312B | Left body outer center pillar | 61312-42011 |
| 61315A | door latch fixing parts | 61315-16020 · 61315-22020 |
| 61315C | Right door latch fastener | 61315-16020 · 61315-22020 |
| 61315D | Left door latch fastener | 61315-16020 · 61315-22020 |
| 61315E | Right rear door latch fastener | 61315-16020 · 61315-22020 |
| 61315F | Left rear door latch fastener | 61315-16020 · 61315-22020 |
| 61387E | Extension section under the center pillar on the right side of the body | 61387-42010 |
| 61388B | Extension section under left body center pillar | 61387-42010 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-42010 · 61403-42020 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-42010 · 61404-42020 |
| 61411 | Right door outer sill panel | 61411-42010 · 61411-42011 · 61411-42012 · 61411-42021 · 61411-42022 · 61411-42023 · 61411-42050 · 61411-42060 · 61411-42080 · 61411-42090 |
| 61412 | Left door outer sill panel | 61412-42010 · 61412-42011 · 61412-42012 · 61412-42021 · 61412-42022 · 61412-42023 · 61412-42050 · 61412-42060 · 61412-42100 · 61412-42110 |
| 61413C | Right side door sill panel No. 2 reinforcement | 61413-42010 · 61413-42020 · 61413-42030 · 61413-42040 |
| 61414C | Left side door sill panel No. 2 reinforcement | 61414-42010 · 61414-42020 · 61414-42030 · 61414-42040 |
| 61603C | Right wheel cover sub-assembly | 61603-42010 · 61603-42030 · 61603-42040 · 61603-42060 · 61603-42900 · 61603-42901 · 61603-42902 · 61603-42903 · 61603-42904 |
| 61604D | Left side wheel cover sub-assembly | 61604-42010 · 61604-42040 · 61604-42050 · 61604-42070 · 61604-42900 · 61604-42901 · 61604-42902 · 61604-42903 |
| 61610E | Right rear fender assembly | 61610-42010 · 61610-42011 · 61610-42012 · 61610-42020 · 61610-42021 · 61610-42022 · 61610-42030 · 61610-42031 · 61610-42040 · 61610-42041 · 61610-42060 · 61610-42080 · 61610-42090 · 61610-42110 · 61610-42120 · 61610-42130 · 61610-42150 · 61610-42160 |
| 61611 | Right side hoarding | 61601-42010 |
| 61612 | left side panel | 61602-42010 |
| 61619D | Right side panel reinforcement | 61619-42010 |
| 61620E | Left rear fender assembly | 61620-42010 · 61620-42011 · 61620-42012 · 61620-42020 · 61620-42021 · 61620-42022 · 61620-42040 · 61620-42041 · 61620-42050 · 61620-42051 · 61620-42070 · 61620-42090 · 61620-42110 · 61620-42130 · 61620-42140 · 61620-42150 · 61620-42170 · 61620-42180 |
| 61621D | Back door right opening slot | 61621-42010 |
| 61622D | Rear door left opening slot | 61622-42010 |
| 61623B | Back door right rear opening slot | 61623-42010 |
| 61624B | Back door left rear opening slot | 61624-42010 |
| 61625G | Right rear side panel extension | 61625-42010 |
| 61626G | Left rear side panel extension | 61626-42010 |
| 61627E | Right rear side panel lower extension | 61627-42010 · 61627-42020 |
| 61628D | Left rear side panel lower extension | 61628-42010 · 61628-42020 |
| 61631A | Right wheel cover outer panel | 61631-42010 · 61631-42011 · 61631-42020 · 61631-42021 · 61631-42030 |
| 61632A | Left side wheel cover outer panel | 61632-42010 · 61632-42011 · 61632-42020 · 61632-42021 · 61632-42040 |
| 61635E | Right wheel housing extension | 61635-42010 |
| 61636E | Left side wheel housing extension | 61636-42010 |
| 61637E | Side wheel arch bracket | 61637-42010 |
| 61638F | Left side wheel cover bracket | 61637-42010 |
| 61645B | Right rear side wheel housing corner panel | 61645-42010 · 61645-42011 · 61645-42020 · 61645-42021 · 61645-42900 |
| 61646B | Left rear side wheel housing corner panel | 61646-42010 · 61646-42020 · 61646-42021 · 61646-42900 |
| 61655B | Right side wheel cover inner corner panel | 61655-42010 · 61655-42011 |
| 61663B | Center reinforcement on the inner side of the right wheel cover | 61663-42010 |
| 61664B | Center reinforcement on the inner side of the left wheel housing | 61664-42010 |
| 61691B | Fuel tank protective shell bracket | 61691-42010 |
| 61707 | Right side enclosure inner panel sub-assembly | 61707-42010 |
| 61708 | Left side enclosure inner panel sub-assembly | 61708-42010 |
| 61713B | Roof right outer reinforcement | 61713-42010 · 61713-42011 · 61713-42020 |
| 61714B | Roof left outer reinforcement | 61714-42010 · 61714-42011 · 61714-42020 |
| 61715A | Roof right inner upper extension | 61715-42030 |
| 61716A | Roof left inner upper extension | 61716-42030 |
| 61731B | Roof right inner panel | 61705-42020 · 61705-42060 · 61731-42010 · 61731-42011 · 61731-42030 · 61731-42050 |
| 61732B | Roof left inner panel | 61706-42020 · 61706-42070 · 61732-42010 · 61732-42011 · 61732-42030 · 61732-42040 · 61732-42050 |
| 61766B | Right seat belt anchor to roof inner reinforcement | 61766-42010 |
| 61767B | Left-hand seat belt anchor to roof inner reinforcement | 61766-42010 |
| 61779B | Rear door opening lower left panel | 61779-42010 |
| 61815E | Right inner upper cover of the roof | 61825-12010 · 63161-22010 |
| 61816C | Roof left inner upper cover | 61825-12010 · 63161-22010 |
| 61825A | Noise Control Panel No. 2 | 61825-12010 |
| 67362 | Rear door upper left hinge reinforcement | 67362-42010 |
| 67364A | Back door lower left hinge reinforcement | 67364-42010 |
