Toyota RAV4 后地板和后地板梁 — Figure 5852

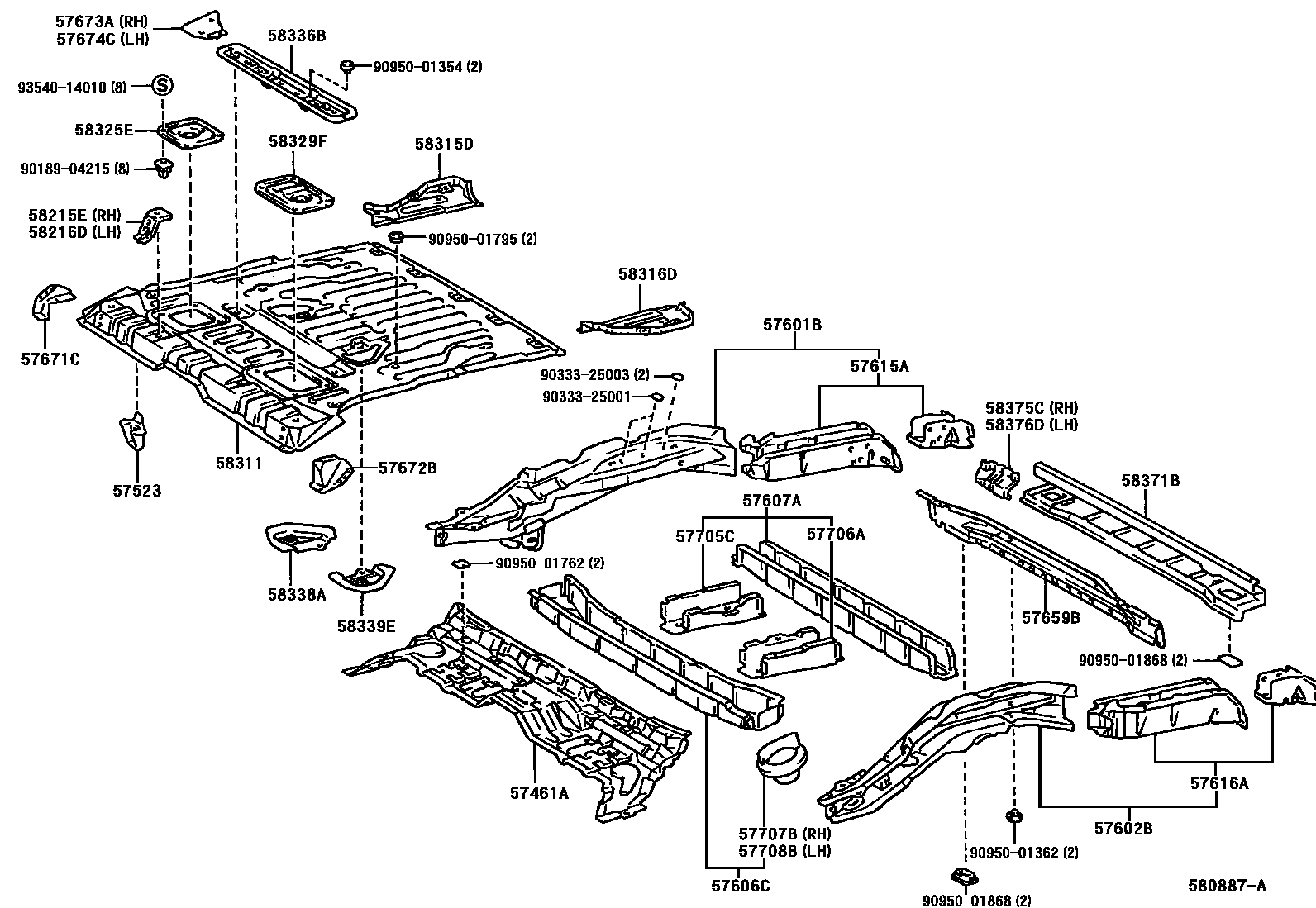

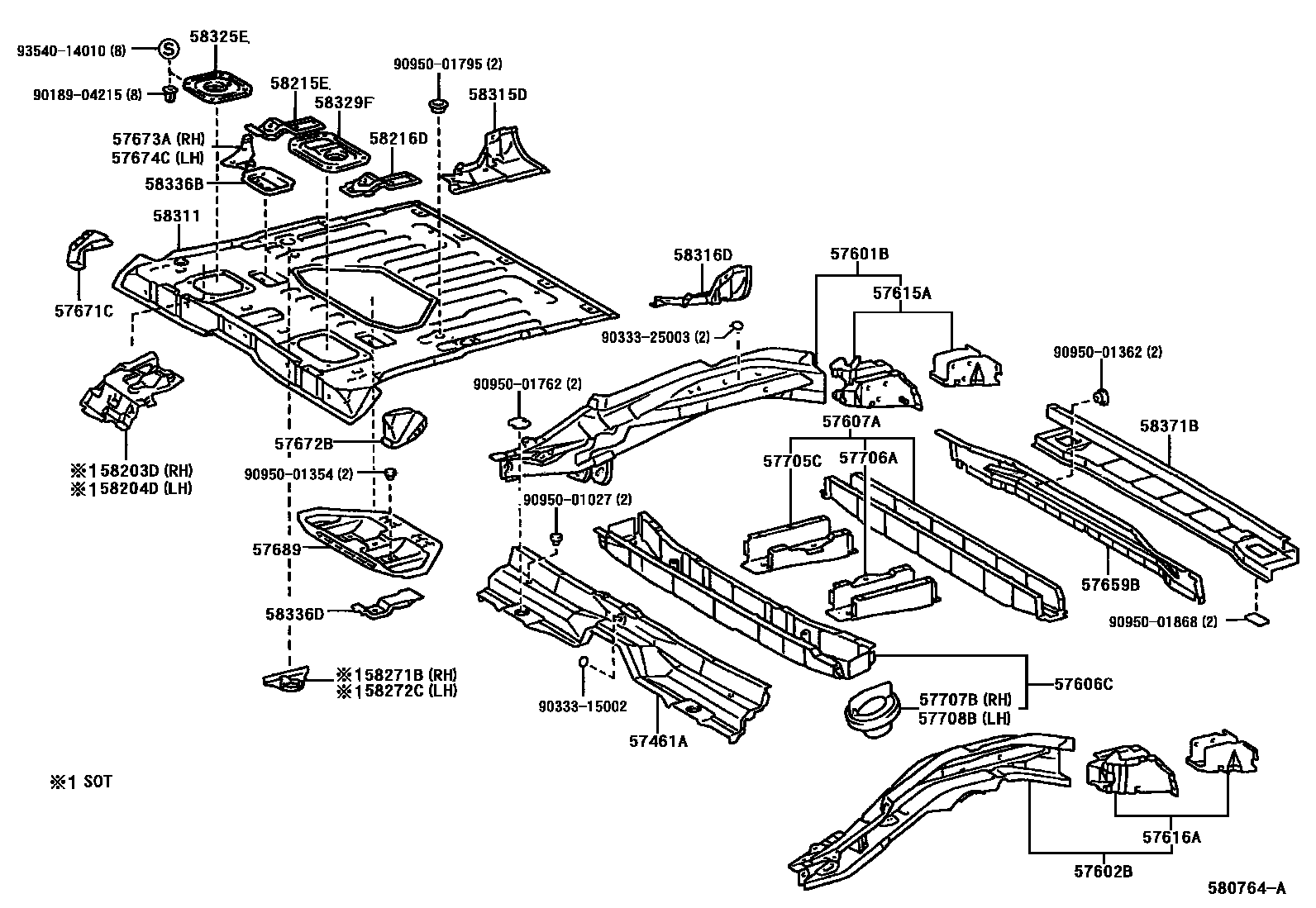

Toyota RAV4 EPC diagram 5852, 后地板和后地板梁, with 2 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57461A | central floor beam | 57461-42010 · 57461-42020 |
| 57523 | Central floor beam bracket | 57523-42010 |
| 57601B | Rear floor right front longitudinal beam sub-assembly | 57601-42010 · 57601-42011 · 57601-42020 · 57601-42030 · 57601-42040 · 57601-42060 · 57601-42070 |
| 57602B | Rear floor left front longitudinal beam sub-assembly | 57602-42010 · 57602-42011 · 57602-42020 · 57602-42030 · 57602-42040 · 57602-42060 · 57602-42070 |
| 57606C | Rear floor No. 2 cross member sub-assembly | 57606-42010 · 57606-42011 · 57606-42020 · 57606-42040 · 57606-42050 |
| 57607A | Rear floor No. 3 cross member sub-assembly | 57607-42010 · 57607-42020 |
| 57615A | Rear floor right rear longitudinal member | 57615-42900 · 57615-42901 · 57615-42902 |
| 57616A | Rear floor left rear longitudinal member | 57616-42900 · 57616-42901 · 57616-42902 |
| 57659B | Rear floor inner rear cross member | 57659-42010 |
| 57671C | Rear floor No. 1 cross member right bracket | 57671-42010 · 57671-42011 · 57671-42020 · 57671-42021 |
| 57672B | Rear floor No. 1 cross member left bracket | 57672-42010 · 57672-42011 · 57672-42020 · 57672-42021 |
| 57673A | Rear floor No. 2 cross member right bracket | 57673-42010 · 57673-42020 |
| 57674C | Rear floor No. 2 cross member left bracket | 57674-42010 · 57674-42020 |
| 57689 | Rear floor No. 2 cross member reinforcement | 57689-42010 |
| 57705C | Rear suspension cross member right rear mounting bracket | 57705-42010 · 57705-42020 |
| 57706A | Rear suspension cross member left rear mounting bracket | 57706-42010 · 57706-42020 |
| 57707B | Rear spring right front bracket sub-assembly | 57707-42010 |
| 57708B | Rear spring left front bracket sub-assembly | 57708-42010 |
| 58203D | Rear right seat outer hinge bracket sub-assembly | 58203-42010 |
| 58204D | Rear left seat outer hinge bracket sub-assembly | 58204-42010 |
| 58215E | Rear right seat mounting bracket | 58215-42010 · 58215-42020 · 58215-42021 |
| 58216D | Rear left seat mounting bracket | 58215-42020 · 58215-42021 · 58216-42010 · 58216-42020 |
| 58271B | Rear floor right panel | 58271-42010 |
| 58272C | rear floor left panel | 58272-42010 |
| 58311 | rear floor pan | 58311-42010 · 58311-42030 |
| 58315D | Rear floor pan right extension | 58315-42010 · 58315-42020 |
| 58316D | Rear floor pan left extension | 58316-42010 · 58316-42020 |
| 58325E | Rear floor access hole cover | 58325-42010 |
| 58329F | Rear floor manhole cover No. 2 | 58329-42010 |
| 58336B | Rear floor pan reinforcement | 58336-42010 · 58336-42020 |
| 58336D | Rear floor bottom plate reinforcement No. 1 | 58364-42010 |
| 58338A | Rear floor floor reinforcement No. 2 | 58338-42010 |
| 58339E | Rear floor bottom plate No. 2 left reinforcement | 58339-42010 |
| 58371B | Body outer lower back panel | 58371-42010 · 58371-42011 |
| 58375C | Right body lower back panel reinforcement | 58375-42010 |
| 58376D | Left body lower back panel reinforcement | 58376-42020 |
