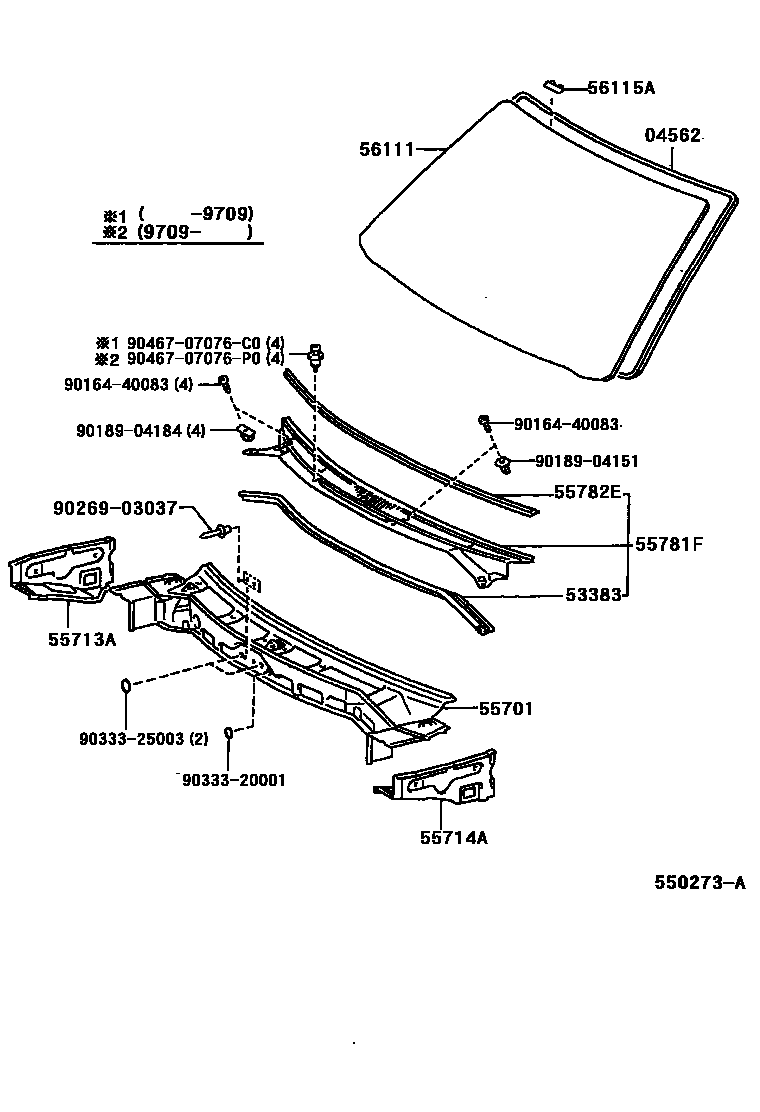

Toyota RAV4 前围板和挡风玻璃 — Figure 5553
Toyota RAV4 EPC diagram 5553, 前围板和挡风玻璃, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04562 | Windshield sealing strip assembly | 04562-12010 |
| 53383 | Engine cover to cowl upper cover seal | 53383-42010 |
| 55701 | Front apron sub-assembly | 55700-42010 · 55700-42051 · 55700-42130 · 55700-42150 · 55700-42300 |
| 55713A | Right front wall upper side panel | 55713-42010 · 55713-42011 |
| 55714A | Left front wall upper side panel | 55714-42010 · 55714-42011 |
| 55781F | Ventilation grille on front panel | 55708-42010 · 55708-42030 |
| 55782E | Ventilation grille protector on front apron | 55782-42010 · 55782-42020 |
| 56111 | windshield | 56111-42010 · 56111-42020 |
| 56115A | Windshield block No. 1 | 56115-20080 |
