Toyota RAV4 前翼子板挡泥板和前围板 — Figure 5355

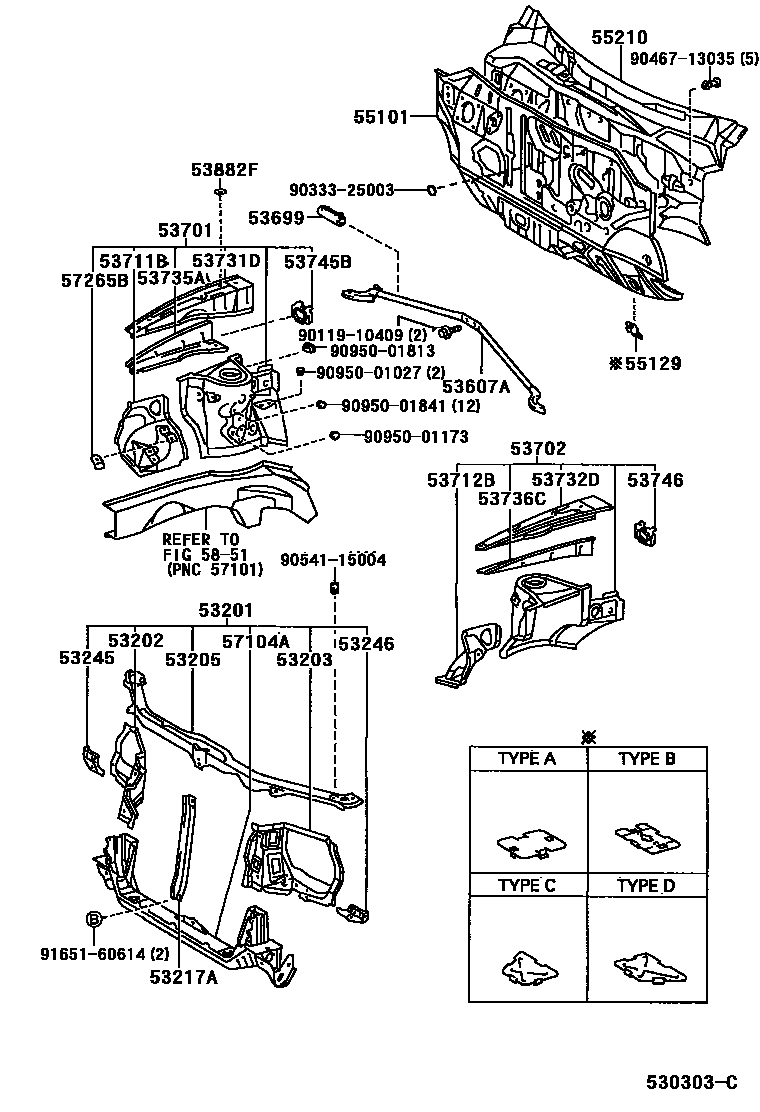

Toyota RAV4 EPC diagram 5355, 前翼子板挡泥板和前围板, with 1 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53201 | Radiator bracket sub-assembly | 53201-42010 · 53201-42011 |
| 53202 | Radiator right side bracket sub-assembly | 53211-42010 |
| 53203 | Radiator left bracket sub-assembly | 53212-42010 · 53212-42011 |
| 53205 | Radiator upper bracket sub-assembly | 53205-42010 · 53205-42011 |
| 53217A | engine cover lock bracket | 53217-42010 |
| 53245 | Right headlight bracket | 53245-42010 |
| 53246 | Left headlight bracket | 53246-42010 |
| 53607A | Front suspension center upper bracket sub-assembly | 53607-42010 |
| 53699 | Front suspension center lower bracket protector | 53699-42010 |
| 53701 | Right front fender fender sub-assembly | 53701-42010 · 53701-42011 |
| 53702 | Left front fender fender sub-assembly | 53702-42010 · 53702-42011 · 53702-42100 |
| 53711B | Right front fender front fender | 53711-42010 |
| 53712B | Left front fender front fender | 53712-42010 |
| 53731D | Right front fender to cowl side upper beam | 53731-42010 |
| 53732D | Left front fender to cowl side upper beam | 53732-42010 |
| 53735A | Right front fender to front side lower beam | 53735-42010 |
| 53736C | Left front fender to front side lower beam | 53736-42010 |
| 53745B | Right front fender fender rear reinforcement | 53745-42010 |
| 53746 | Left front fender rear reinforcement | 53746-42010 |
| 53882F | front fender seal | 53882-16030 |
| 55101 | Front apron sub-assembly | 55101-42010 · 55101-42030 · 55101-42080 · 55101-42090 · 55101-42130 · 55101-42131 · 55101-42150 · 55101-42151 |
| 55129 | Front panel hole cover | 55129-12030 · 55129-20010 · 55129-30020 · 55139-30040 |
| 55210 | Front wall insulation pad assembly | 55210-42010 · 55210-42011 · 55210-42012 |
| 57104A | Front cross member sub-assembly | 57104-42010 |
| 57265B | Engine right side mounting bracket | 57265-42010 · 57265-42011 |
