Toyota RAV4 发动机盖和前翼子板 — Figure 5353

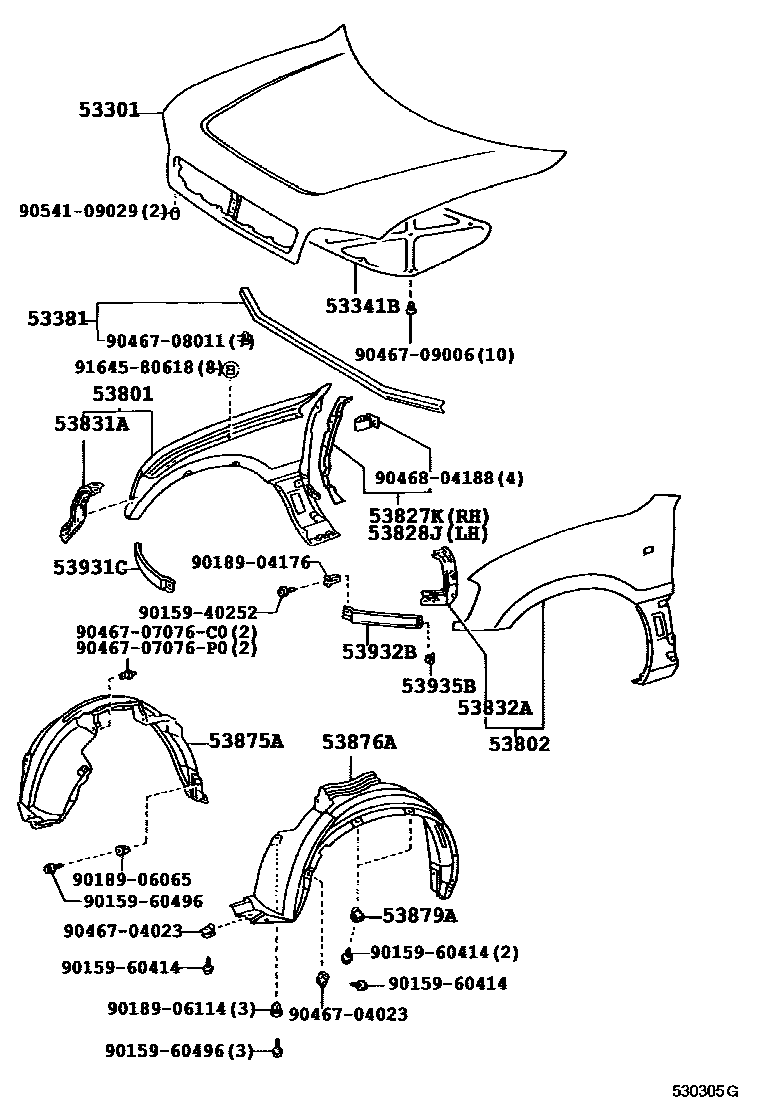

Toyota RAV4 EPC diagram 5353, 发动机盖和前翼子板, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-42010 · 53301-42011 · 53301-42012 |
| 53341B | engine cover gasket | 53341-42010 |
| 53381 | Engine cover to radiator bracket seal | 53381-42010 |
| 53801 | Right front fender sub-assembly | 53801-42010 · 53801-42050 |
| 53802 | Left front fender sub-assembly | 53802-42010 · 53802-42050 |
| 53827K | Right front fender side panel protector | 53827-42020 |
| 53828J | Left front fender side panel protector | 53828-42020 |
| 53831A | Right front fender side panel | 53831-42010 |
| 53832A | Left front fender side panel | 53832-42010 |
| 53875A | Right front fender lining | 53875-42010 · 53875-42011 · 53875-42012 |
| 53876A | Left front fender lining | 53876-42010 · 53876-42011 · 53876-42012 |
| 53879A | Front fender lining fixing parts | 53879-14020 |
| 53931C | front board | 53931-42010 |
| 53932B | Left front end panel | 53932-42010 |
| 53935B | Front panel protector | 53935-42010 |
| 76603 | Right front fender fender sub-assembly | 76621-49015 · 76621-49035 · 76621-49065 |
| 76604 | Left front fender fender sub-assembly | 76622-49015 · 76622-49035 |
