Toyota RAV4 前保险杠及附件 — Figure 5252
Toyota RAV4 EPC diagram 5252, 前保险杠及附件, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

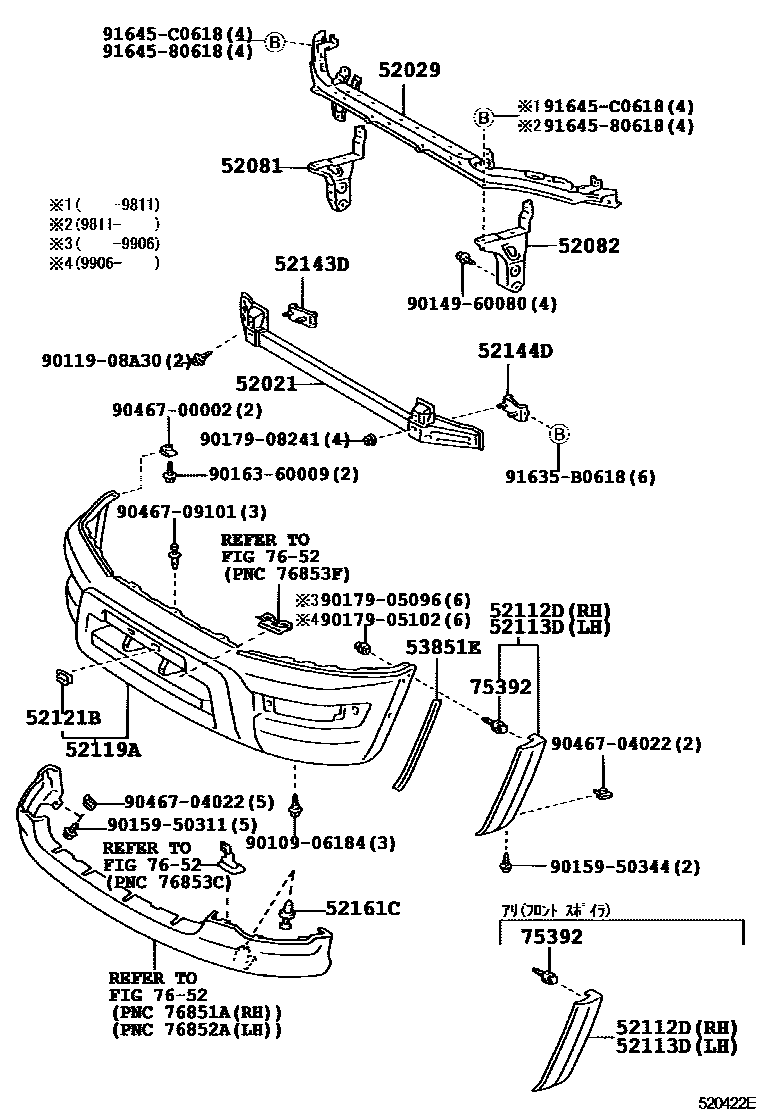

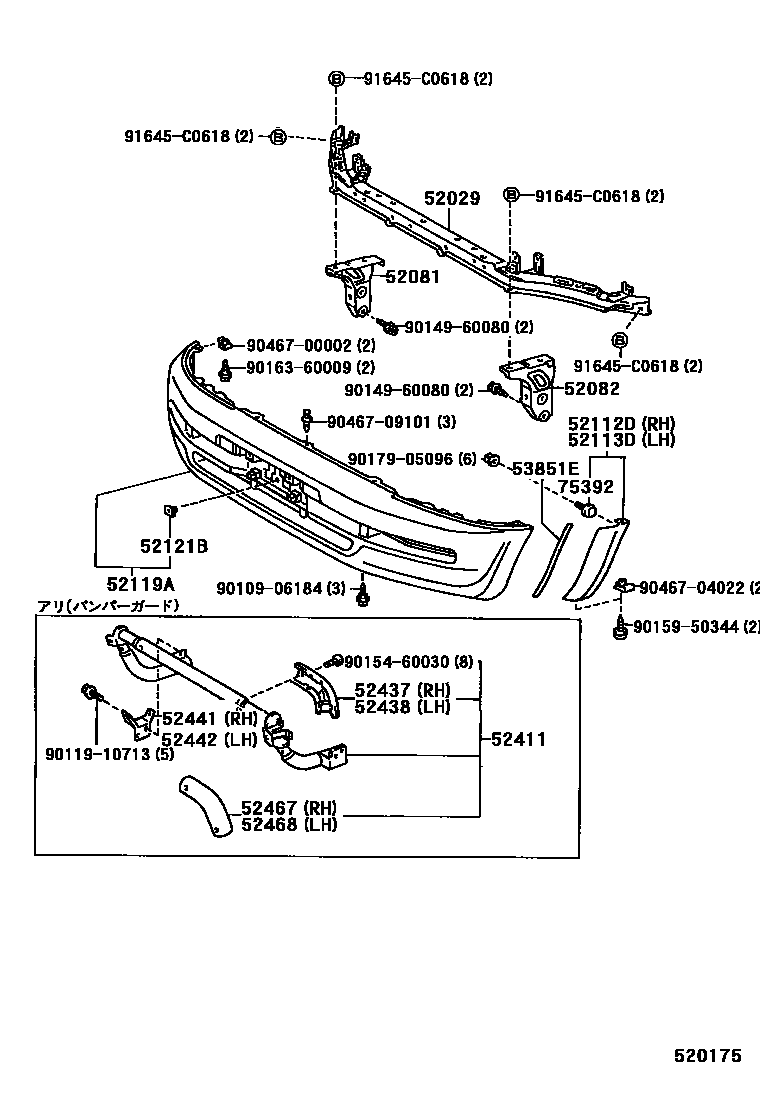

| 52021 | Front bumper reinforcement sub-assembly | 52021-42010 |
| 52029 | Front bumper upper reinforcement sub-assembly | 52029-42011 · 52029-42050 |
| 52081 | Front bumper stay sub-assembly | 52145-42010 |
| 52082 | Front bumper left stay sub-assembly | 52146-42010 |
| 52112D | Front bumper right extension | 52102-42900 · 52102-42901 |
| 52113D | Front bumper left extension | 52103-42900 · 52103-42901 |
| 52119A | front bumper cover | 52119-42010 · 52119-42011 · 52119-42050 |
| 52121B | Front license plate mounting bracket | 52121-42010 · 90179-06127 |
| 52143D | Front bumper right side bracket | 52143-42010 |
| 52144D | Front bumper left bracket | 52144-42010 |
| 52161C | front bumper insert | 52161-16010 |

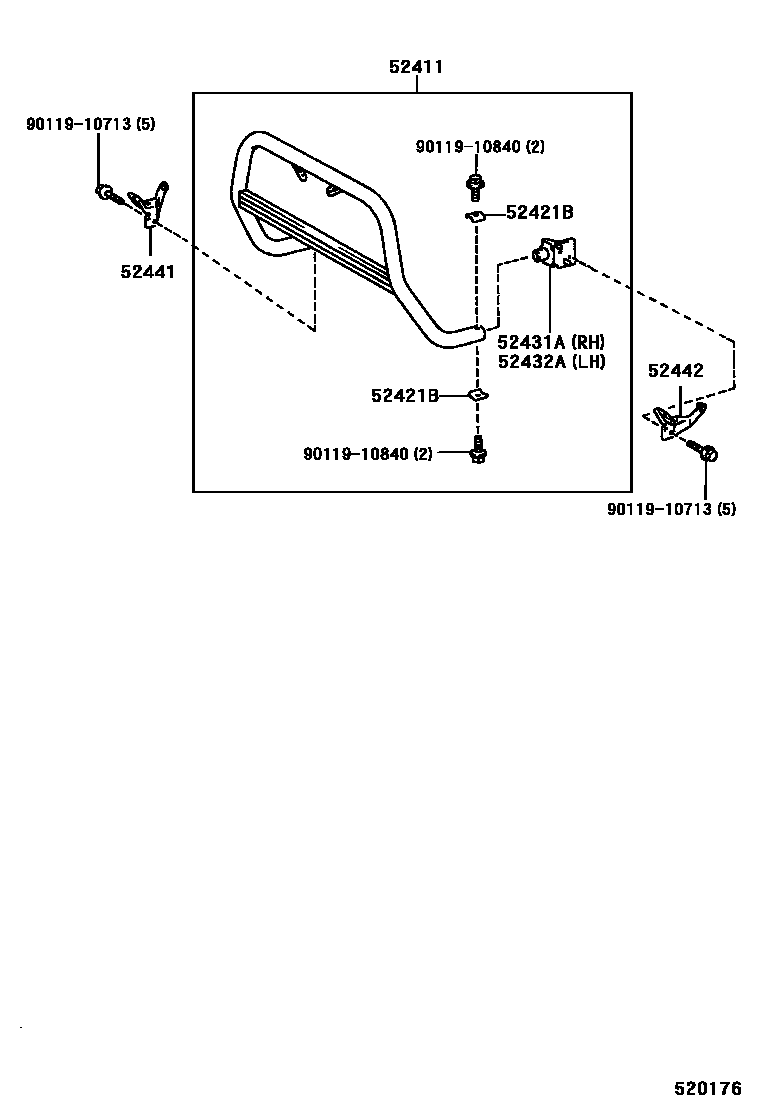

| 52411 | Front bumper anti-collision bar | 52410-42010 · 52410-42020 |
| 52421B | Front bumper No. 1 spacer | 52421-42010 |
| 52431A | Front bumper anti-collision bar right side bracket | 52431-42010 |
| 52432A | Front bumper anti-collision bar left bracket | 52432-42010 |
| 52437 | Front bumper right side anti-collision bar cover | 52437-42020 |
| 52438 | Front bumper left anti-collision bar cover | 52438-42020 |
| 52441 | Front bumper No. 1 right anti-collision bar base | 52441-42010 |
| 52442 | Front bumper No. 1 left anti-collision bar base | 52442-42010 |
| 52467 | Front bumper No. 2 right side anti-collision bar cover | 52467-42020 |
| 52468 | Front bumper No. 2 left anti-collision bar cover | 52468-42020 |
| 75392 | External protective strip fixings | 75392-42011 |
