Toyota RAV4 Front Spring & Shock Absorber — Figure 4803

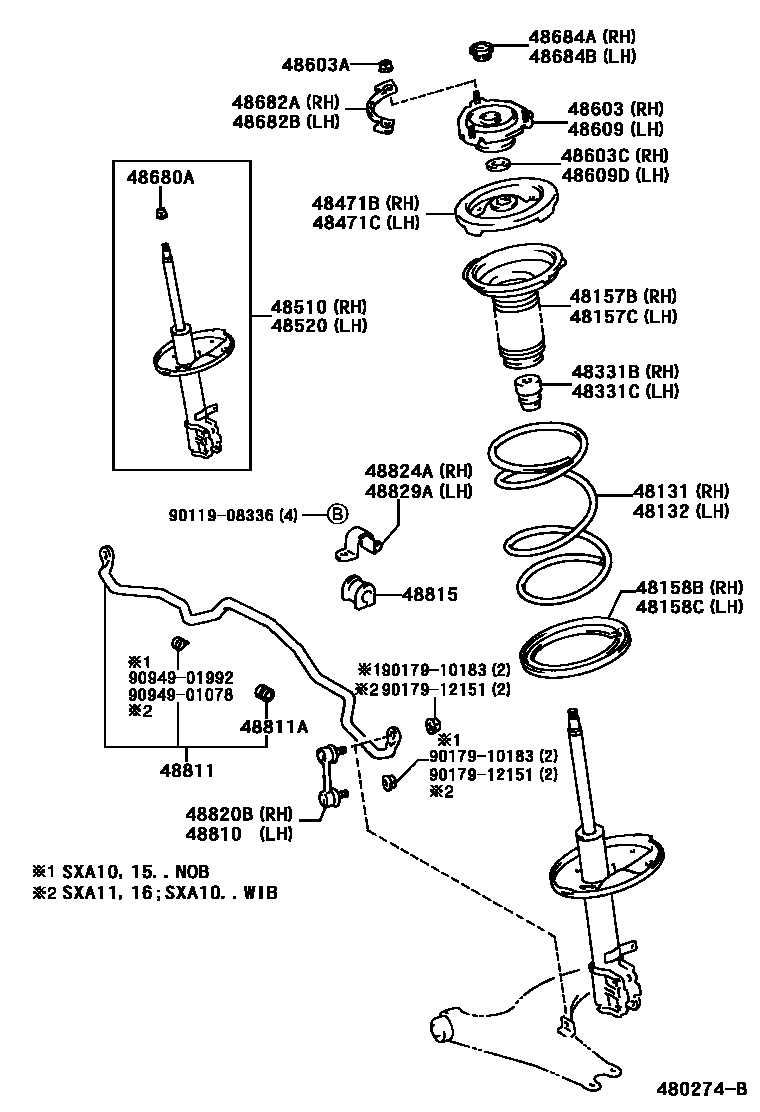

Toyota RAV4 EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-42010 · 48131-42011 · 48131-42020 · 48131-42030 · 48131-42031 · 48131-42040 · 48131-42041 · 48131-42050 · 48131-42051 · 48131-42060 · 48131-42080 · 48131-42090 · 48131-42091 · 48131-42113 · 48131-42121 · 48131-42122 · 48131-42123 · 48131-42130 · 48131-42131 · 48131-42170 · 48131-42171 · 48131-42172 · 48131-42180 · 48131-42181 · 48131-42182 · 48131-42190 · 48131-42210 · 48131-42220 |
| 48132 | Left front coil spring | 48131-42010 · 48131-42011 · 48131-42020 · 48131-42030 · 48131-42031 · 48131-42040 · 48131-42041 · 48131-42050 · 48131-42051 · 48131-42060 · 48131-42080 · 48131-42090 · 48131-42091 · 48131-42113 · 48131-42121 · 48131-42122 · 48131-42123 · 48131-42130 · 48131-42131 · 48131-42170 · 48131-42171 · 48131-42172 · 48131-42180 · 48131-42181 · 48131-42182 · 48131-42190 · 48131-42210 · 48131-42220 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-42010 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-42010 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-32030 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-32030 |
| 48331B | Right front spring buffer block | 48331-42010 |
| 48331C | Left front spring buffer block | 48331-42010 |
| 48471B | Front coil spring upper right seat | 48044-32030 |
| 48471C | Front coil spring upper left seat | 48044-32030 |
| 48510 | Right front shock absorber assembly | 48510-49015 · 48510-49016 · 48510-49025 · 48510-49026 · 48510-49065 · 48510-49066 |
| 48520 | Left front shock absorber assembly | 48520-49015 · 48520-49016 · 48520-49025 · 48520-49026 · 48520-49065 · 48520-49066 |
| 48603 | Right front suspension bearing sub-assembly | 48609-42010 |
| 48603A | Nut (for front suspension mount) | 90179-10095 |
| 48603C | Dust seal (for right front suspension mount) | 90303-22049 |
| 48609 | Left front suspension bearing sub-assembly | 48609-42010 |
| 48609D | Dust seal (for left front suspension mount) | 90303-22049 |
| 48680A | Nut (for front mount to front shock absorber) | 94184-61401 |
| 48682A | No. 2 right front suspension support | 48682-42010 |
| 48682B | No. 2 left front suspension support | 48682-42010 |
| 48684A | Right front suspension support dust cover | 48684-32010 |
| 48684B | Left front suspension support dust cover | 48684-32010 |
| 48810 | Left front stabilizer bar link assembly | 48820-33010 · 48820-42010 |
| 48811 | front stabilizer bar | 48811-42010 · 48811-42011 · 48811-42020 · 48811-42021 |
| 48811A | front stabilizer bar bushing | 90385-22003 · 90386-24001 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-42010 · 48815-42020 |
| 48820B | Right front stabilizer bar link assembly | 48820-33010 · 48820-42010 |
| 48824A | Right front stabilizer bar bracket No. 1 | 48824-30050 · 48824-42010 |
| 48829A | Left front stabilizer bar bracket No. 1 | 48824-30050 · 48824-42010 |
