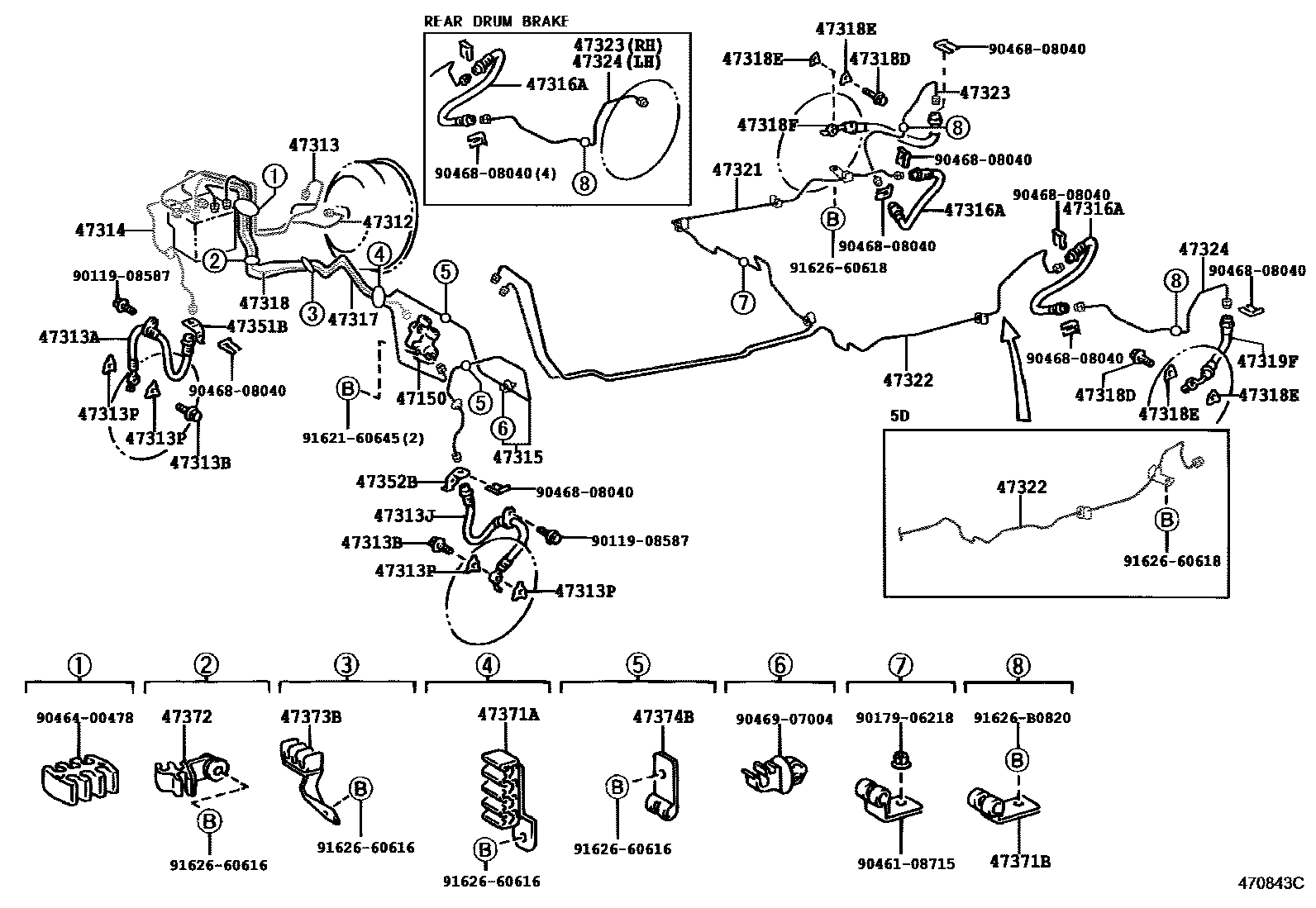

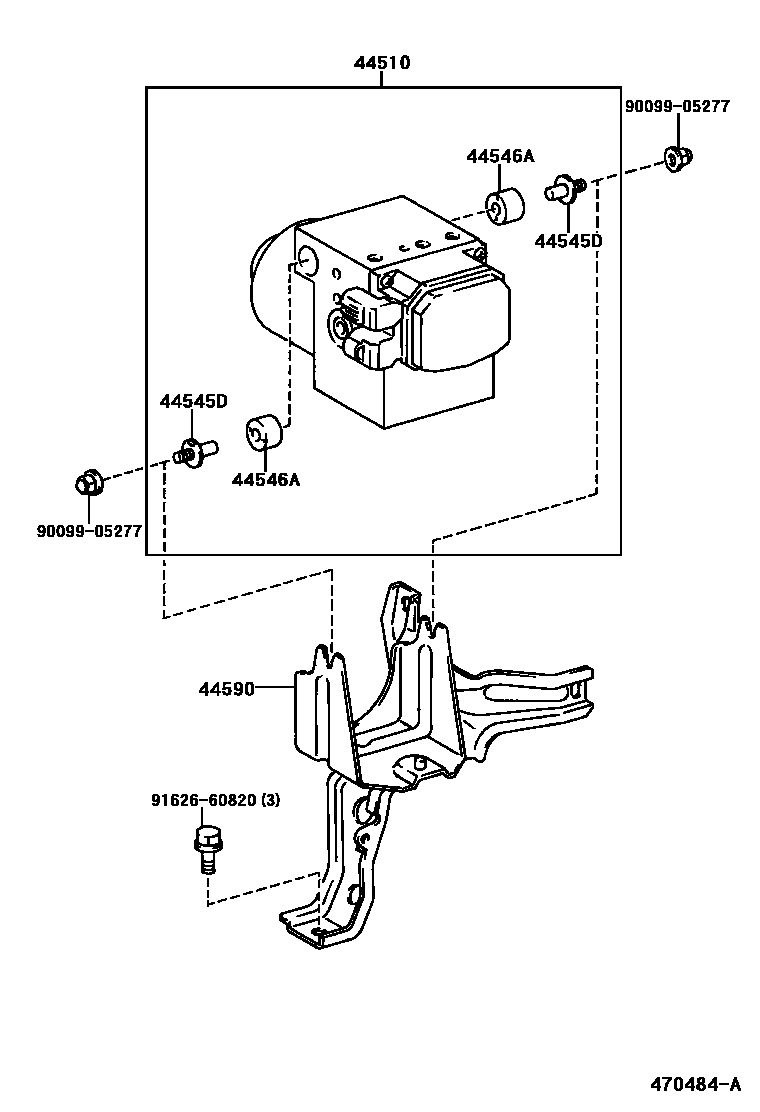

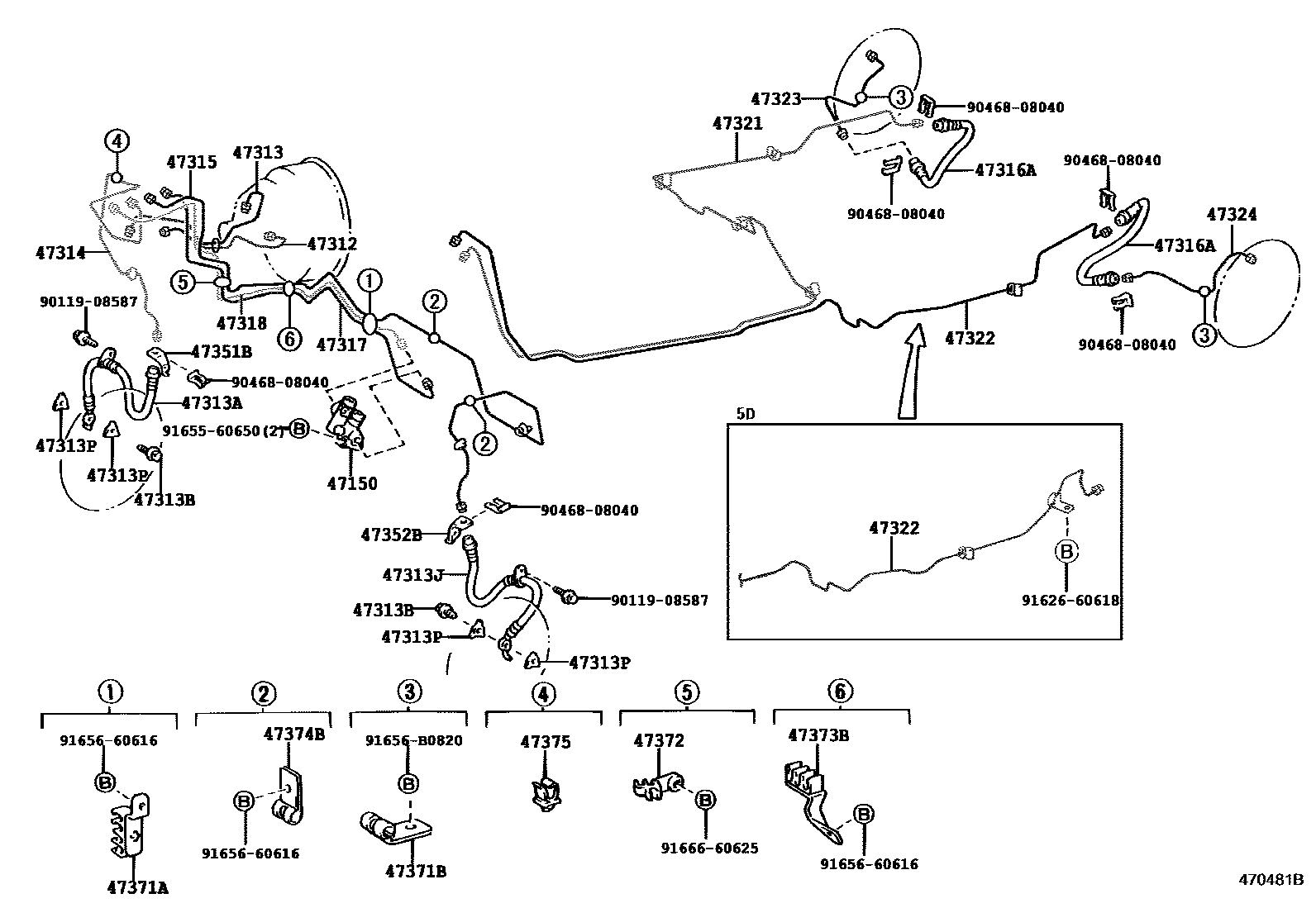

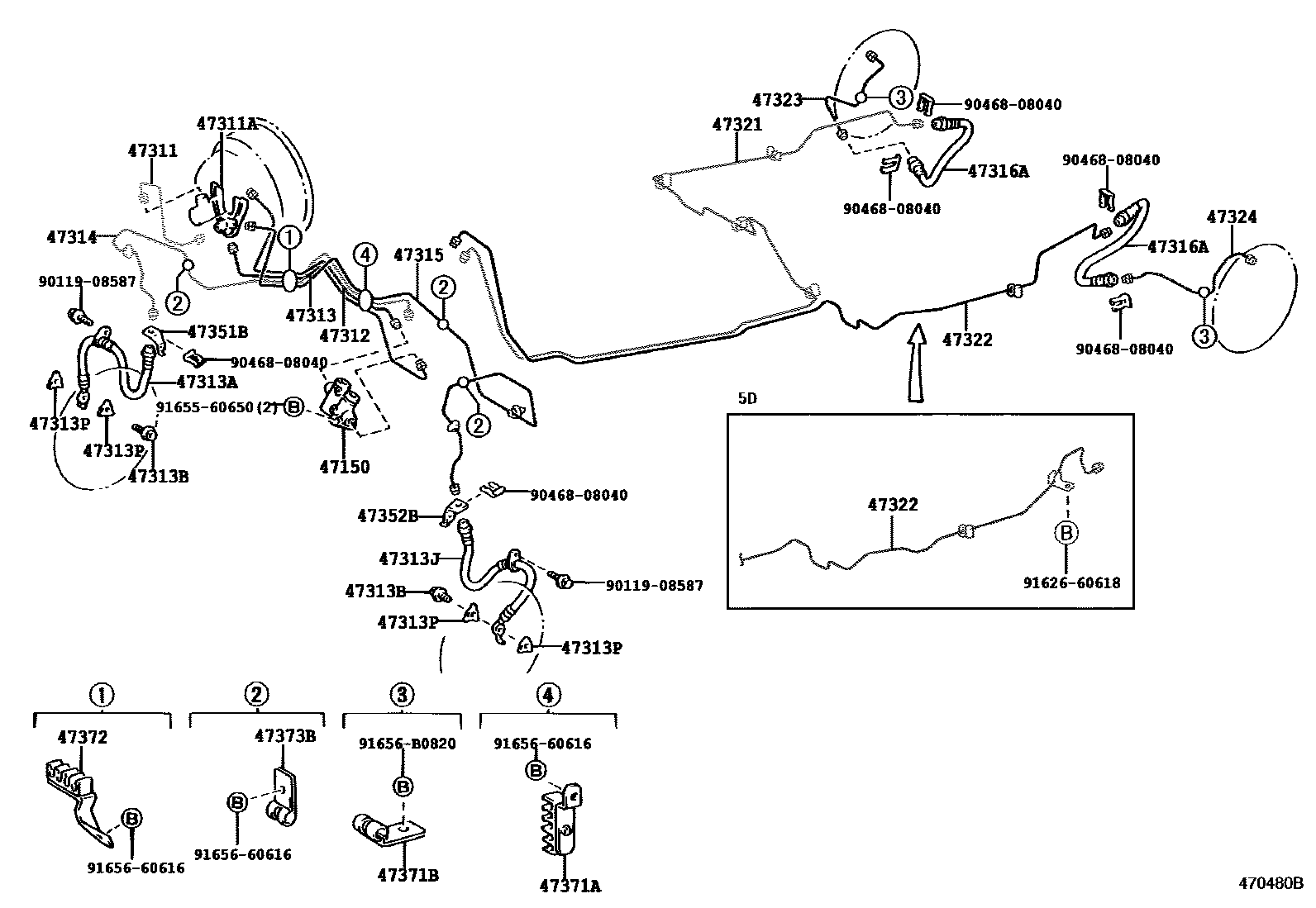

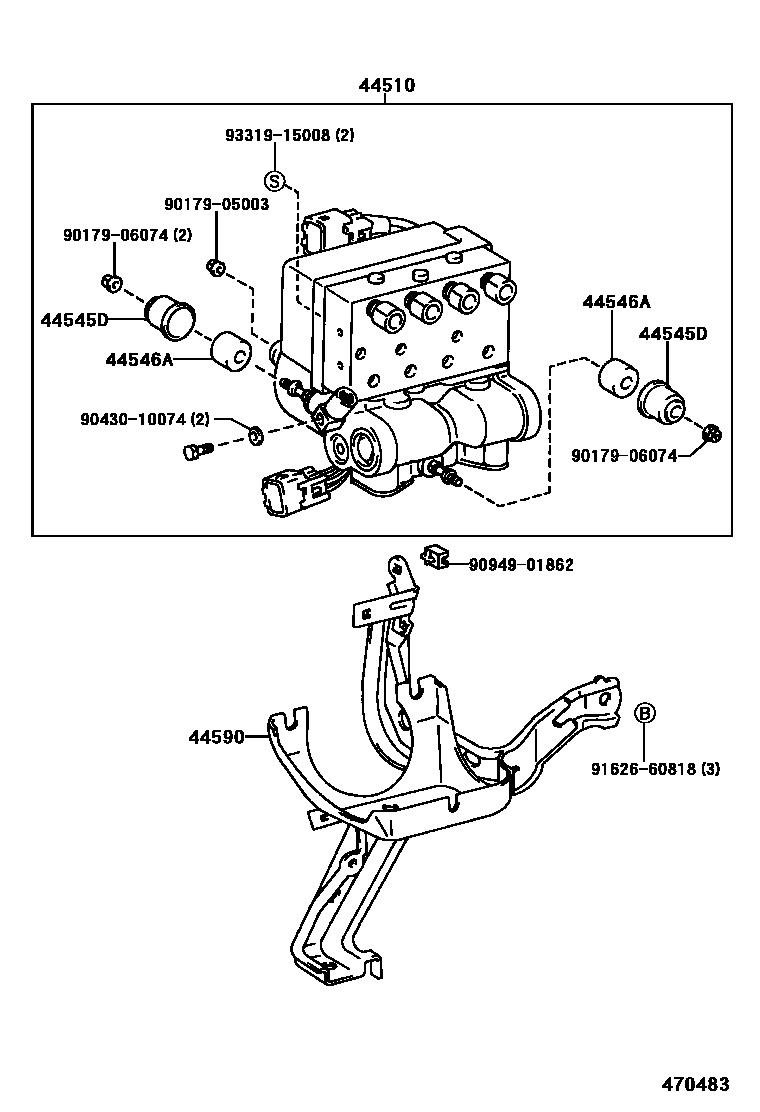

Toyota RAV4 制动配管和卡箍 — Figure 4708
Toyota RAV4 EPC diagram 4708, 制动配管和卡箍, with 5 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-42010 · 44510-42010 · 44510-42020 |
| 44545D | Brake actuator bolt mount | 44545-12090 · 44545-42020 |
| 44546A | Brake actuator bolt cushion | 44546-12090 · 44546-42020 |
| 44590 | Brake actuator bracket assembly | 44590-42010 · 44590-42030 |
| 47150 | Proportional valve assembly | 47150-12050 · 47150-20250 · 47150-20280 · 47150-20360 · 47150-20370 · 47150-42010 · 47150-42020 · 47150-42030 |
| 47311 | No. 1 front brake pipe | 47311-42010 |
| 47311A | Pipe fitting (for front brake pipe) | 90413-10171 |
| 47312 | No. 2 front brake pipe | 47312-42020 · 47312-42040 · 47312-42080 · 47312-42081 |
| 47313 | No. 3 front brake pipe | 47313-42020 · 47313-42040 · 47313-42080 |
| 47313A | No. 1 front flexible hose | 90947-02781 |
| 47313B | Connector bolt (for front flex hose) | 90401-10015 |
| 47313J | No. 2 front flexible hose | 90947-02782 |
| 47313P | Gasket (for front flex hose) | 47389-30010 |
| 47314 | No. 4 front brake pipe | 47314-42010 · 47314-42030 · 47314-42040 |
| 47315 | No. 5 front brake pipe | 47315-42020 · 47315-42040 · 47315-42080 · 47315-42081 |
| 47316A | Flexible hose (for rear brake pipe) | 90947-02780 |
| 47317 | No. 7 front brake pipe | 47317-42020 · 47317-42040 · 47317-42041 |
| 47318 | No. 8 front brake pipe | 47318-42020 · 47318-42040 · 47318-42041 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10015 |
| 47318E | Gasket (for rear flex hose) | 47389-30010 |
| 47318F | Right rear flexible hose | 90947-02980 |
| 47319F | Left rear flexible hose | 90947-02981 |
| 47321 | No. 1 rear brake pipe | 47321-42010 · 47321-42030 · 47321-42050 · 47321-42060 · 47321-42070 |
| 47322 | No. 2 rear brake pipe | 47322-42010 · 47322-42030 · 47322-42050 |
| 47323 | No. 3 rear brake pipe | 47323-42010 · 47323-42030 |
| 47324 | No. 4 rear brake pipe | 47324-42010 · 47324-42030 |
| 47351B | No. 1 Flexible Hose Bracket | 47351-42020 |
| 47352B | No. 2 Flexible Hose Bracket | 47352-42020 |
| 47371A | No. 1 brake pipe clamp | 47371-20250 · 47371-20270 · 47371-42070 |
| 47371B | No. 6 brake pipe clamp | 90461-06112 |
| 47372 | No. 2 brake pipe clamp | 47371-42020 · 47371-42050 · 47371-42090 |
| 47373B | No. 3 brake pipe clamp | 47371-42030 · 90461-06957 |
| 47374B | No. 4 brake pipe clamp | 90461-06957 |
| 47375 | No. 5 brake pipe clamp | 90949-01862 |
