Toyota RAV4 后盘式制动器卡钳和防尘罩 — Figure 4707

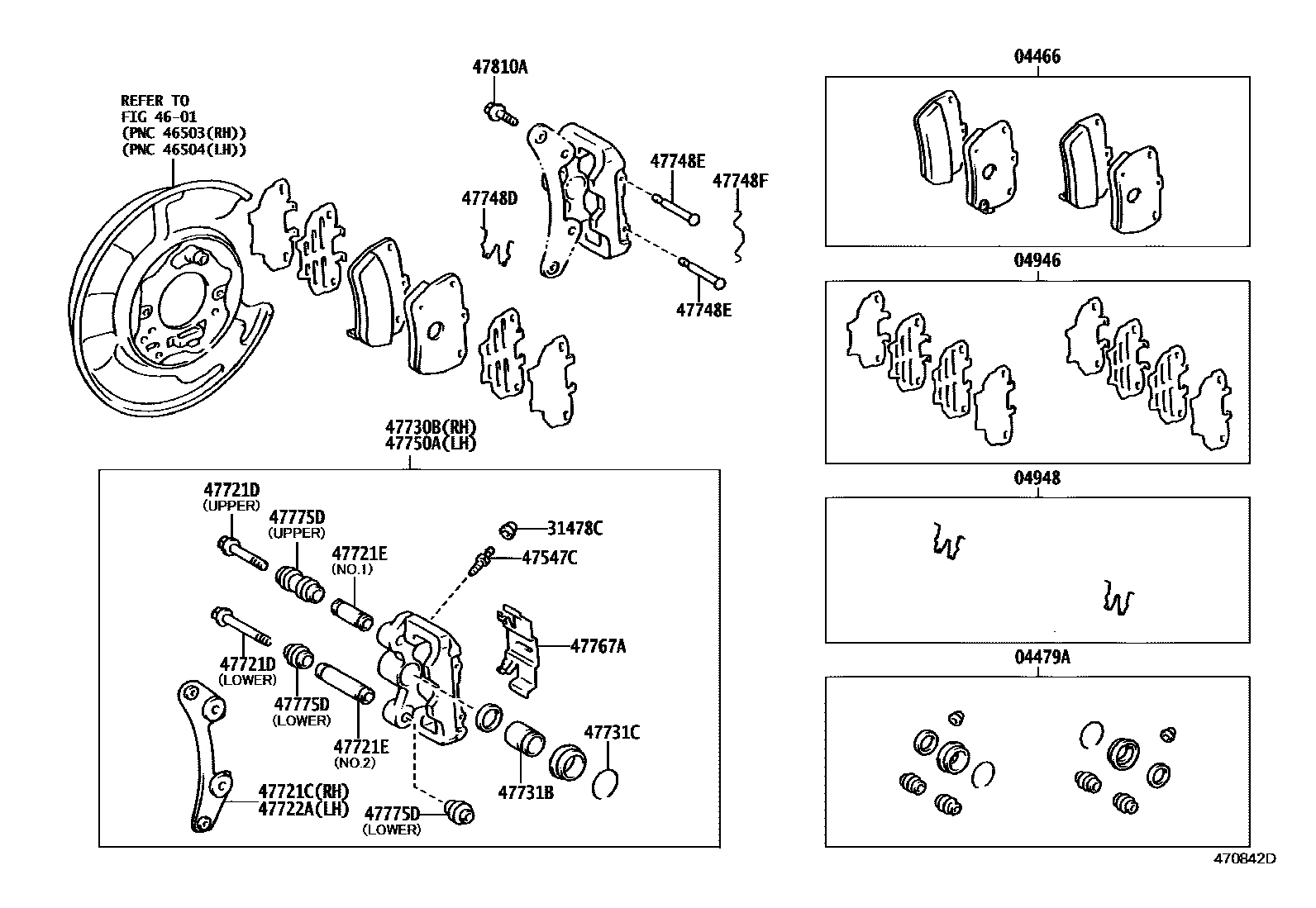

Toyota RAV4 EPC diagram 4707, 后盘式制动器卡钳和防尘罩, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04466 | Rear disc brake pad assembly | 04466-42010 |
| 04479A | Rear disc brake cylinder assembly | 04479-42020 |
| 04946 | Silencer spacer assembly (for rear disc brake) | 04946-42010 |
| 04948 | Rear disc brake mounting assembly | 04948-42010 |
| 31478C | Bleed plug cap (for rear disc brake) | 31478-30010 |
| 47547C | Bleed plug (for rear disc brake) | 47547-35020 |
| 47721C | Right rear disc brake cylinder retainer | 47721-42020 |
| 47721D | Bolt (for rear disc brake cylinder retainer) | 90105-10427 · 90105-10428 |
| 47721E | Collar (for rear disc brake cylinder retainer) | 90389-10045 · 90389-10046 · 90389-10053 · 90389-10054 |
| 47722A | Left rear disc brake cylinder retainer | 47721-42020 |
| 47730B | Right rear disc brake cylinder assembly | 47730-42020 |
| 47731B | rear disc brake piston | 47731-42020 |
| 47731C | retaining ring (for rear disc brake piston) | 90520-37016 |
| 47748D | Anti-vibration spring No. 1 (for rear disc brake) | 47748-42010 |
| 47748E | Holed pin (for rear disc brake) | 90240-06021 |
| 47748F | Clip (for rear disc brake) | 90468-12025 |
| 47750A | Left rear disc brake cylinder assembly | 47750-42020 |
| 47767A | Rear disc brake pad guard | 47767-42010 |
| 47775D | Bushing boot (for rear disc brake) | 47775-22020 · 47775-42010 |
| 47810A | Hexagonal bolt (for rear brake caliper) | 90119-10157 |
