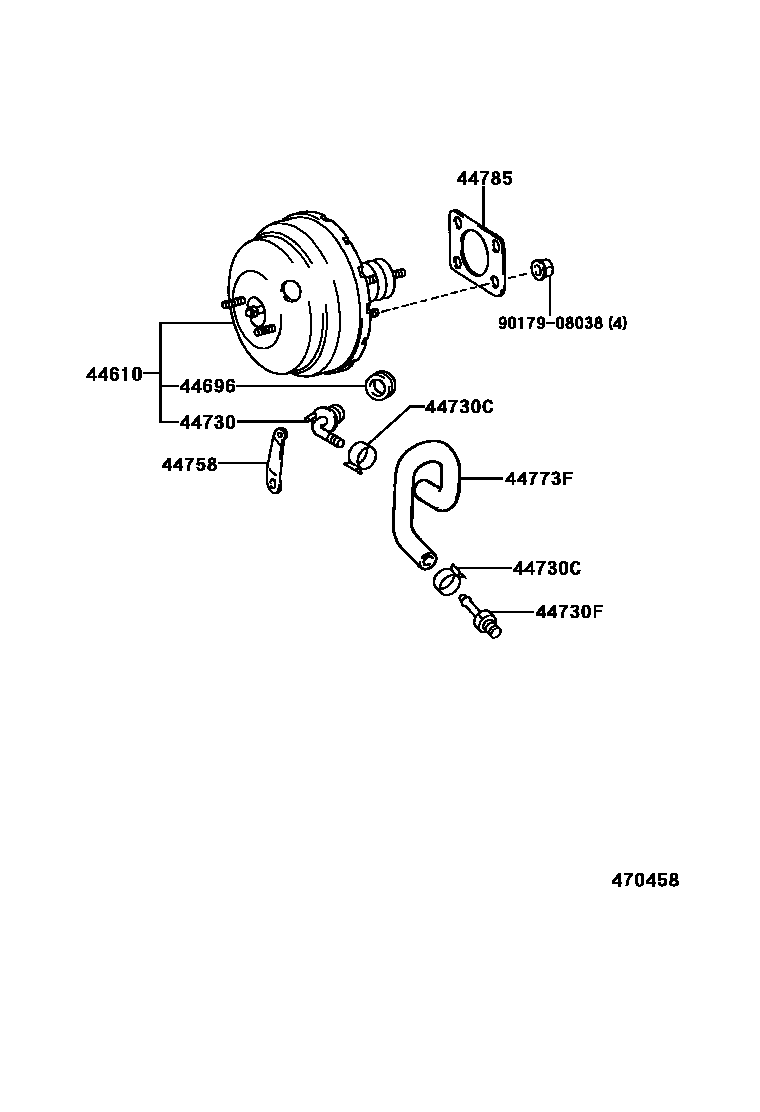

Toyota RAV4 制动助力器和真空管 — Figure 4703
Toyota RAV4 EPC diagram 4703, 制动助力器和真空管, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-42010 · 44610-42030 · 44610-42050 · 44610-42070 |
| 44696 | One-way valve seal | 90480-24439 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-14050 · 44730-42010 |
| 44730C | Clip (for vacuum hose) | 90467-16002 |
| 44730F | Vacuum hose connector (for manifold side) | 90404-51319 |
| 44758 | Vacuum check valve bracket | 44758-42010 · 44758-42020 |
| 44773F | Hoses (connector to check valve) | 44773-42010 · 44773-42030 · 44773-42040 · 44773-42050 · 44773-42080 |
| 44785 | brake booster pad | 44785-32010 |
