Toyota RAV4 Steering Wheel — Figure 4504

Toyota RAV4 EPC diagram 4504, Steering Wheel, with 4 images and 6 PNC and OE references.

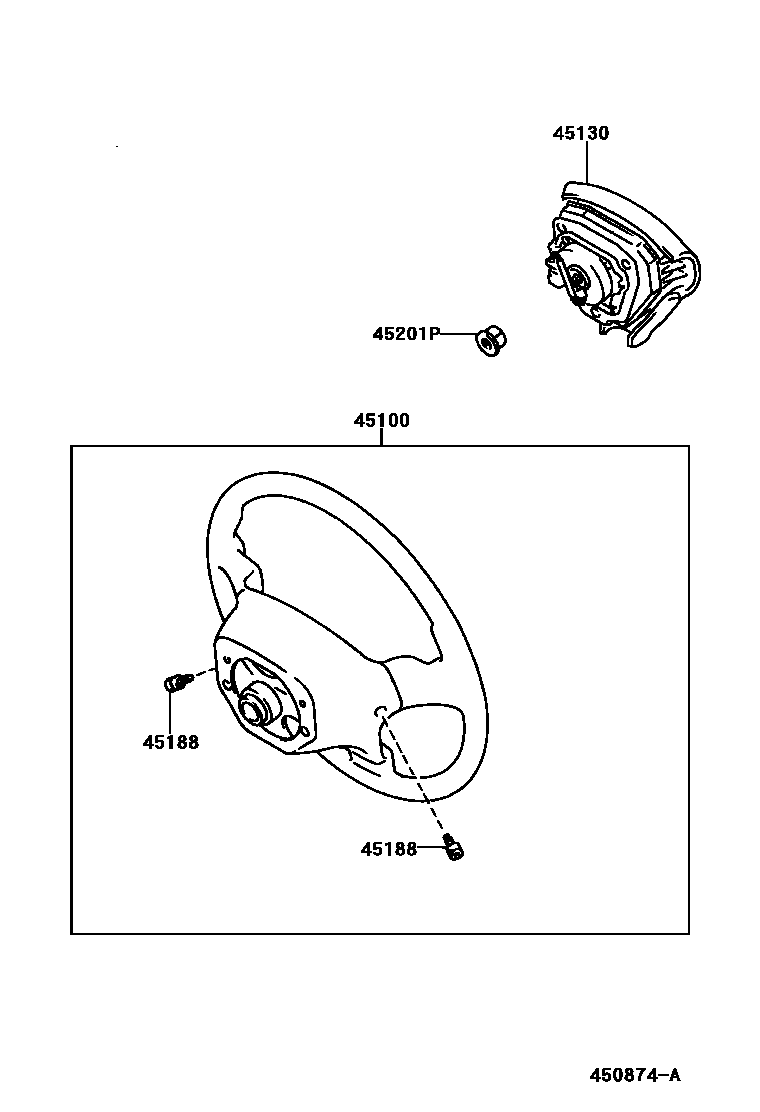

Toyota RAV4 Steering Wheel EPC diagram — 450874A
Steering Wheel — 450874A (199709 – 999999)

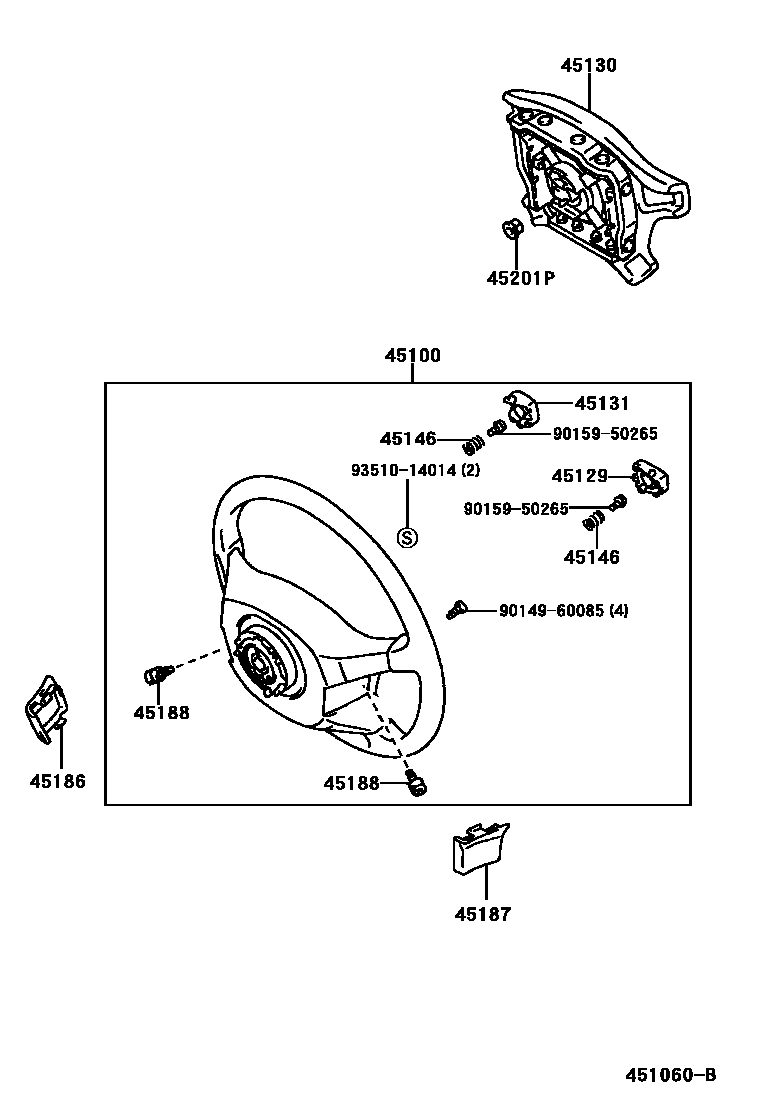

Toyota RAV4 Steering Wheel EPC diagram — 451060B
Steering Wheel — 451060B (199404 – 199608)

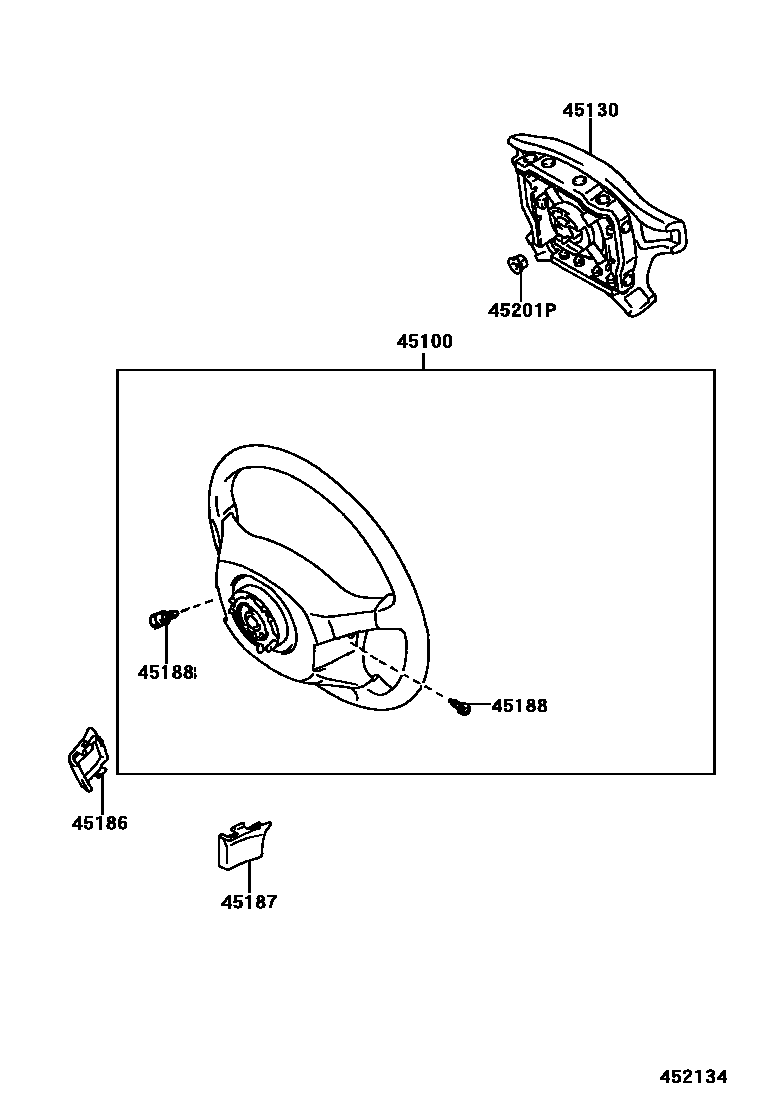

Toyota RAV4 Steering Wheel EPC diagram — 452134
Steering Wheel — 452134 (199608 – 199709)

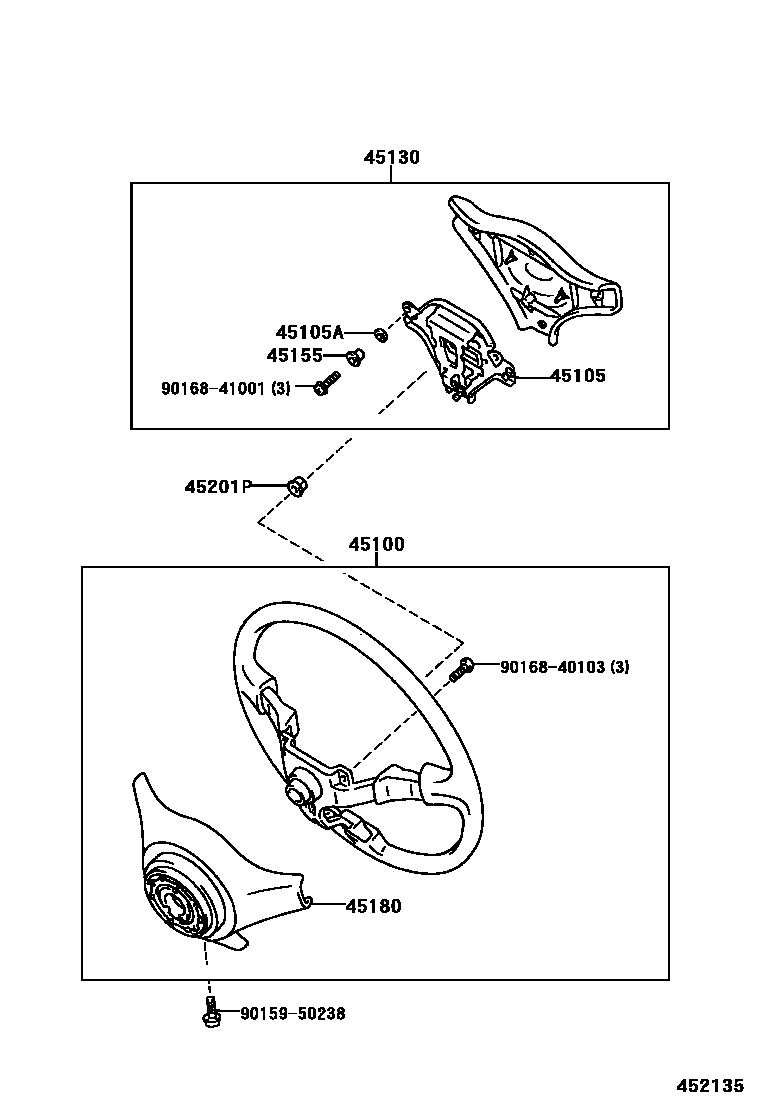

Toyota RAV4 Steering Wheel EPC diagram — 452135
Steering Wheel — 452135 (199404 – 199608)

PNC and OE references

PNCPart nameOE numbers
45105No. 1 horn button contact piece sub-assembly45105-20500
45105ACushion pad (for horn button contact piece)90540-08014
45146Horn button contact spring45146-20260
45155Horn button contact piece spacer45155-22040
45188Steering wheel trim cover fixing screws90148-60007 · 90148-60026 · 90148-60036
45201PSteering wheel fixing nut90179-12071
