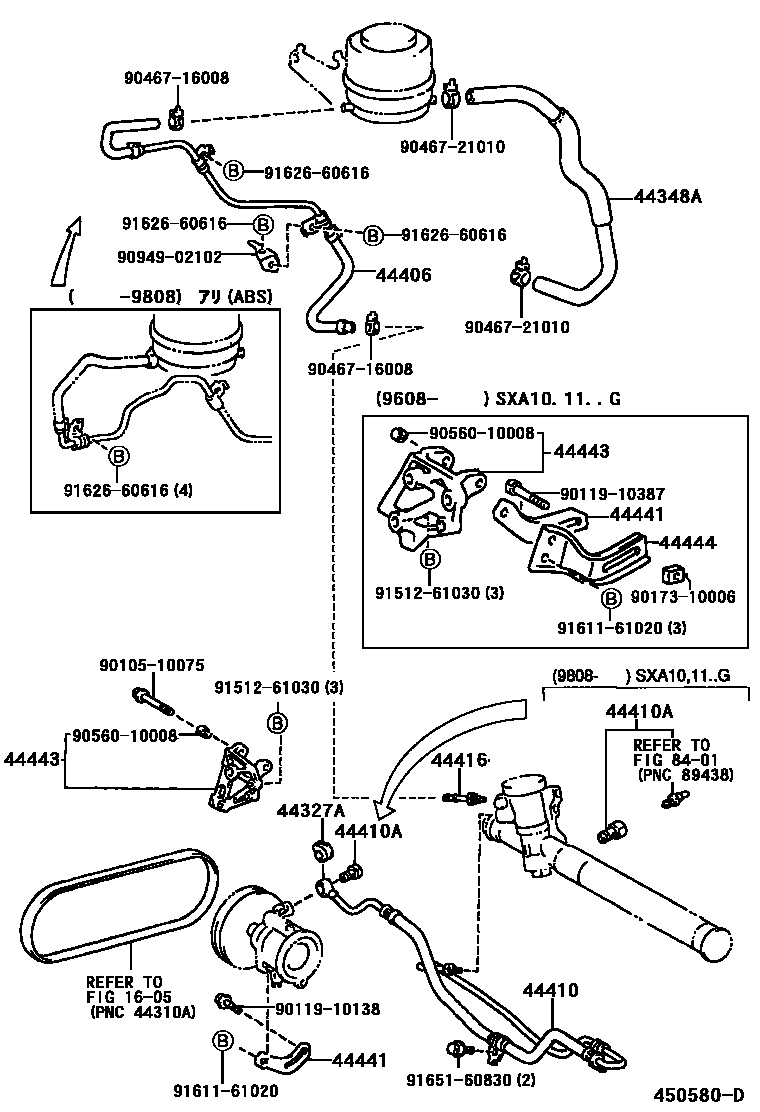

Toyota RAV4 动力转向配管 — Figure 4503
Toyota RAV4 EPC diagram 4503, 动力转向配管, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44327A | No. 1 pressure hole gasket | 44327-12010 · 44327-26020 · 44327-30030 |
| 44348A | No. 1 hose (tank to pump) | 44348-42010 · 44348-42011 · 44348-42040 |
| 44406 | Oil return pipe sub-assembly | 44406-42010 · 44406-42020 · 44406-42031 · 44406-42050 · 44406-42070 |
| 44410 | Pressure supply pipe assembly | 44410-42020 · 44410-42021 · 44410-42022 · 44410-42030 |
| 44410A | Connector bolt (for pressure supply pipe) | 44338-33090 · 90401-16014 · 96341-41603 |
| 44416 | Oil return pipe (for steering gear outlet) | 44416-42020 |
| 44441 | Pump front bracket | 44441-32010 |
| 44443 | pump bracket | 44443-20050 · 44443-32070 |
| 44444 | Pump back stay | 44444-20030 |
