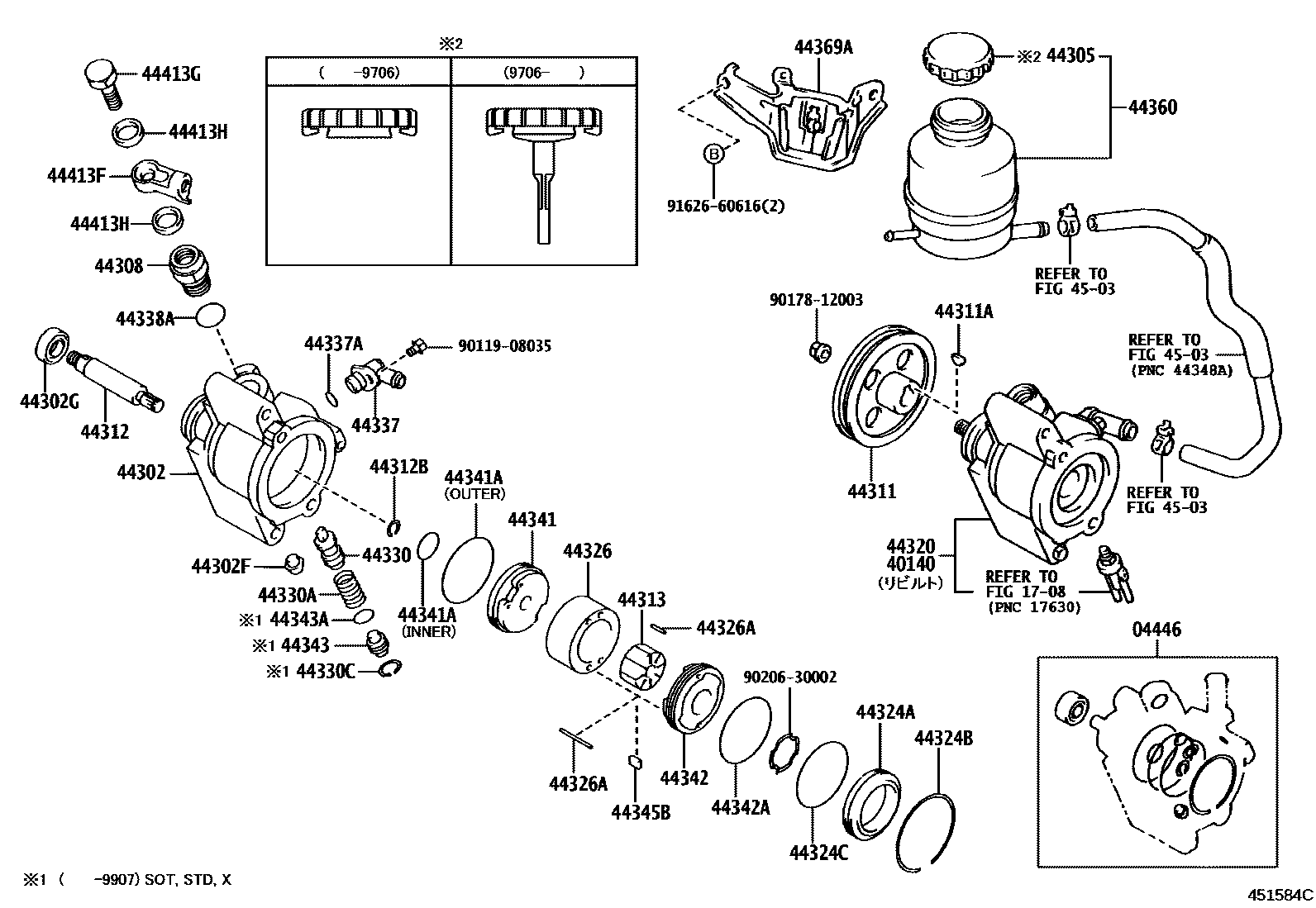

Toyota RAV4 叶片泵和储油罐(动力转向) — Figure 4502
Toyota RAV4 EPC diagram 4502, 叶片泵和储油罐(动力转向), with 1 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04446 | Power steering pump gasket assembly | 04446-20030 · 04446-20031 · 04446-42010 |
| 40140 | Refurbished vane pump assembly | 40140-42011 · 40140-42012 · 40140-42030 · 40140-42050 · 40140-42060 |
| 44302 | Front vane pump housing sub-assembly | 44302-20030 · 44302-20090 · 44302-32030 |
| 44302F | Joint seat (for vane pump housing) | 90410-05035 |
| 44302G | No. 2 oil seal (for vane pump housing) | 90311-18007 |
| 44305 | Vane pump oil storage tank cover sub-assembly | 44305-22030 · 44305-28020 |
| 44308 | Pressure hole connector sub-assembly | 44308-22050 · 44308-35040 |
| 44311 | vane pump pulley | 44311-20060 · 44311-42010 |
| 44311A | Vane pump pulley key | 90280-05008 |
| 44312 | vane pump shaft | 44312-12030 |
| 44312B | No. 1 snap ring (for vane pump shaft) | 90520-10003 |
| 44313 | vane pump rotor | 44313-22040 · 44313-22050 · 44313-22060 · 44313-22070 · 44313-22080 |
| 44320 | Vane pump assembly | 44320-42010 · 44320-42011 · 44320-42012 · 44320-42030 · 44320-42050 · 44320-42060 |
| 44324A | Pump back shell | 44324-12031 |
| 44324B | Hole snap ring (for pump rear housing) | 90521-62002 |
| 44324C | O-ring (for pump rear housing) | 90301-52001 · 90301-53006 |
| 44326 | Cam ring (for vane pumps) | 44325-30100 · 44325-30110 · 44325-30120 · 44325-30130 · 44325-30140 |
| 44326A | Direct sales (for vane pump cam rings) | 90250-04047 · 90250-04049 |
| 44330 | Flow control valve assembly | 44330-35131 · 44330-35141 · 44330-35151 · 44330-35161 · 44330-35171 · 44330-35181 · 44330-35191 · 44330-35201 · 44330-35211 · 44330-35221 · 44330-35231 · 44330-35241 |
| 44330A | Compression spring (for flow control valve) | 90501-12103 |
| 44330C | Snap ring (for flow control valve) | 96151-01700 |
| 44337 | Power steering suction port connector | 44337-22060 |
| 44337A | O-ring (for power steering oil suction port) | 90301-11016 · 90301-12003 |
| 44338A | O-ring (for pressure port connector) | 90301-19003 · 90301-19013 |
| 44341 | Vane pump front cover | 44341-32010 |
| 44341A | O-ring (for vane pump front cover) | 90301-25001 · 90301-52001 |
| 44342 | Vane pump rear end cover | 44342-32010 |
| 44342A | O-ring (for vane pump rear end cover) | 90301-52001 |
| 44343 | Flow control spring seat | 44343-12040 |
| 44343A | O-ring (for flow control spring seat) | 90301-13012 · 96711-19014 |
| 44345B | vane pump disc | 44345-12010 · 44345-12020 · 44345-12030 · 44345-12040 · 44345-12050 |
| 44360 | Vane pump oil storage tank assembly | 44360-42010 · 44360-42011 |
| 44369A | No. 1 oil storage tank bracket | 44390-42010 · 44390-42011 |
| 44413F | No. 2 pressure supply pipe | 44413-10040 · 44413-16060 |
| 44413G | Joint bolt (for pressure supply pipe No. 2) | 90401-16008 · 96341-41603 |
| 44413H | Gasket (for pressure supply pipe No. 2) | 90430-16242 |
