Toyota RAV4 Front Axle Hub — Figure 4303

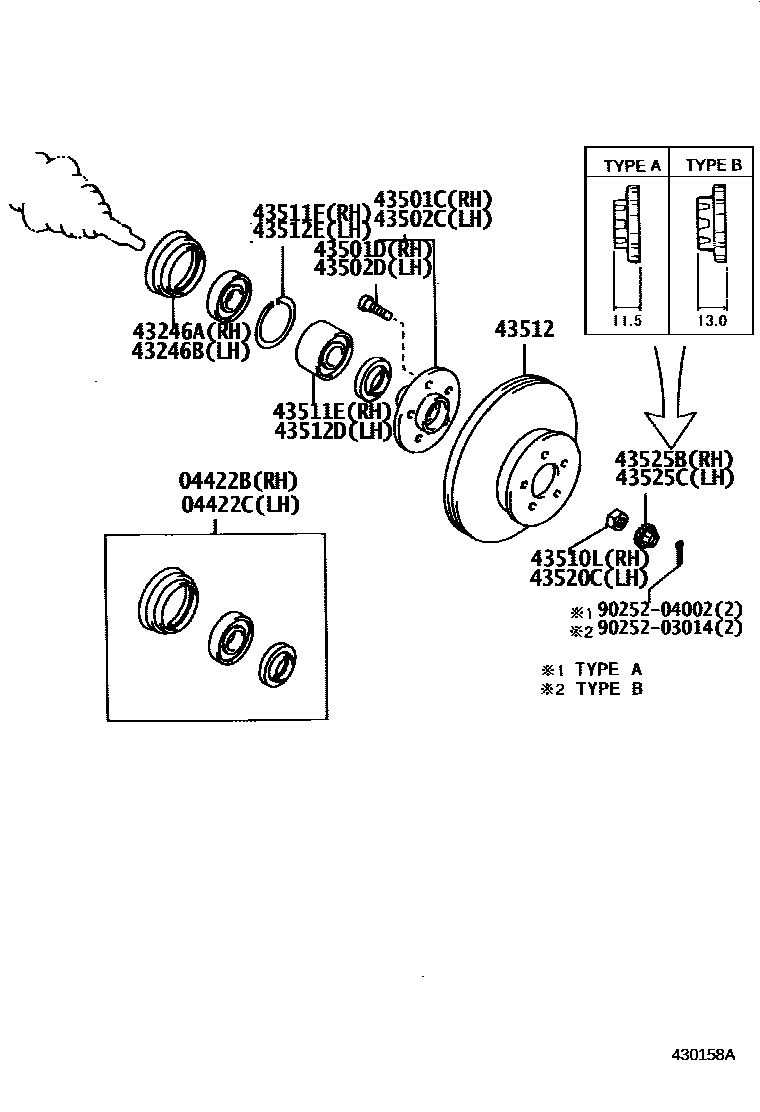

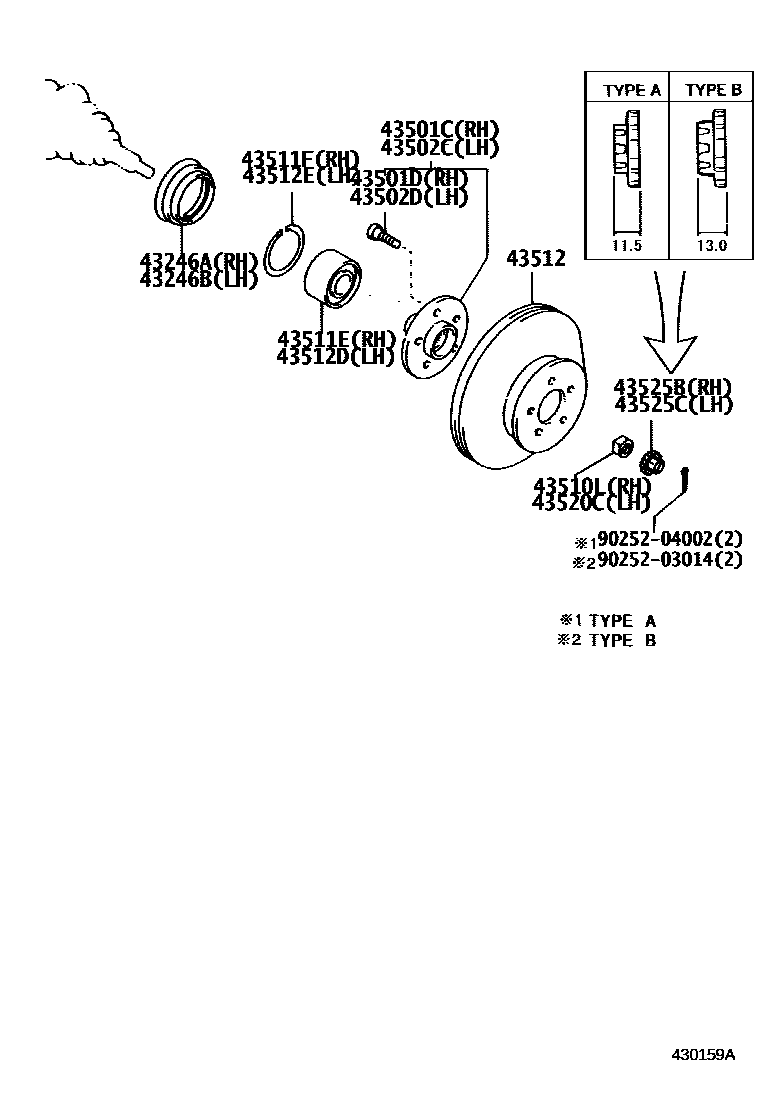

Toyota RAV4 EPC diagram 4303, Front Axle Hub, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04422B | Right front axle oil seal assembly | 04422-12060 · 04422-20080 |
| 04422C | Left front axle oil seal assembly | 04422-12060 · 04422-20080 |
| 43246A | No. 1 right front wheel bearing dust cover | 43246-12020 · 43246-12040 · 43246-32020 |
| 43246B | No. 1 left front wheel bearing dust cover | 43246-12020 · 43246-12040 · 43246-32020 |
| 43501C | Right front axle hub sub-assembly | 43502-42010 · 43502-44010 |
| 43501D | Hub bolt (for right front axle) | 90942-02070 |
| 43502C | Left front axle wheel hub sub-assembly | 43502-42010 · 43502-44010 |
| 43502D | Hub bolt (for left front axle) | 90942-02070 |
| 43510L | Nut (for right steering knuckle) | 90178-22001 · 90179-22020 |
| 43511E | Bearing (for right front axle hub) | 90369-38003 · 90369-43008 · 90369-43009 |
| 43511F | Hole snap ring (for right front axle hub) | 90521-79002 · 90521-88001 |
| 43512 | front brake disc | 43512-42010 |
| 43512D | Bearing (for left front axle hub) | 90369-38003 · 90369-43008 · 90369-43009 |
| 43512E | Hole snap ring (for left front axle hub) | 90521-79002 · 90521-88001 |
| 43520C | Nut (for left steering knuckle) | 90178-22001 · 90179-22020 |
| 43525B | Right front wheel adjustment lock cover | 42428-42010 · 43525-20030 |
| 43525C | Left front wheel adjustment lock cover | 42428-42010 · 43525-20030 |
